Redel plug to HBM
HV adaptation Redel / HBM systems
Application

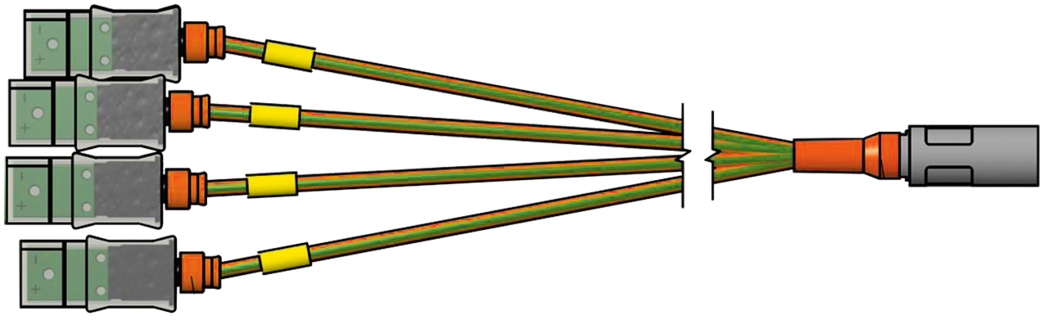

High voltage sensors in road tests are used with the 4-channel type K measuring system with high IP protection class, e.g. high voltage modules from CSM (HVTHMM). For test bench applications other transducers are used (e.g. HBM QuantumX). This adapter offers the possibility to adapt HV sensors in 4-channel version with Redel Push/Pull connector to the 4 x 1 channel QuantumX connector.

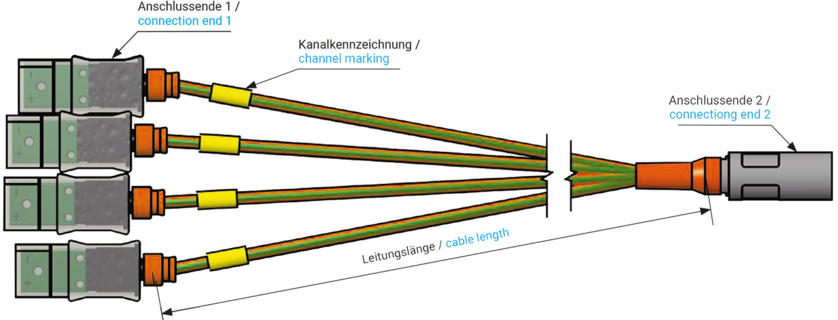

Technical data
| connection cable length | according to customer requirements |
|---|---|
| connection end 1 | 4 miniature sockets in protection cap – 2 poles |
| connection end 2 | Redel socket type K – 8 poles |
| marking | ■ standard: channel 1 - 4 ■ special: according to customer requirements |
| configuration example | item no.: T141-059-113 cable length (mm): 200 |
according to customer requirements
4 miniature sockets in protection cap – 2 poles
Redel socket type K – 8 poles
■ standard: channel 1 - 4
■ special: according to customer requirements
item no.: T141-059-113
cable length (mm): 200
