CATLine CAT 7A DR

reeling CAT 7A Gigabit Ethernet cable

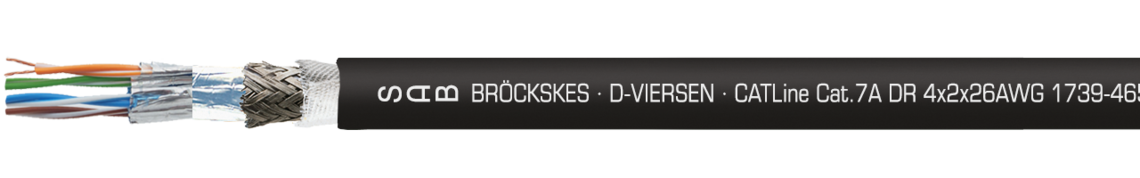

Marking for CATLine CAT 7A DR: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.7A DR 4x2x26AWG 1739-4651 CE

Marking for CATLine CAT 7A DR: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.7A DR 4x2x26AWG 1739-4651 CE

Application

CAT 7A Gigabit Ethernet cable for reelable use. The coilable CAT 7A cable with small bending radius has been designed for different applications where higher data volumes have to be transmitted safely. Exemplary applications are theatre technology, signal transmission of mobile screen cleaning systems or high-bay warehouse technology.

Outstanding features

  • halogen-free
  • very good oil resistance
  • very good weather resistance
  • reeling cable
  • good against aggressive chemicals

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Conductor

bare copper strands, fine wires

Insulation

special polymer

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs screened with foil, pairs together

Screen

aluminized non-woven tape and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR / supporting braid / PUR

Sheath colour

black (RAL 9005)

Conductor

bare copper strands, fine wires

Insulation

special polymer

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs screened with foil, pairs together

Screen

aluminized non-woven tape and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR / supporting braid / PUR

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

for laying and installation (fixed laying): 5 x d

for repeated winding action (flexible): 10 x d

guided on pulleys (flexible): 12 x d

Temperature range VDE

fixed laying: -50°C/+90°C

flexible application: -40°C/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance (100 MHz)

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-9-2 / CAT 7A

Weather resistance

very good

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

for laying and installation (fixed laying): 5 x d

for repeated winding action (flexible): 10 x d

guided on pulleys (flexible): 12 x d

Temperature range VDE

fixed laying: -50°C/+90°C

flexible application: -40°C/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Characteristic impedance (100 MHz)

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-9-2 / CAT 7A

Weather resistance

very good

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø ± 5% Copper figure Cable weight ≈ Tensile strength
max.
L173946514 x 2 x 26 AWG1,6 mm10,5 mm38,5 kg/km117 kg/km200 N Send inquiry
item no.
Dimension
max. core-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
Tensile strength
max.
L17394651
4 x 2 x 26 AWG
1,6 mm
10,5 mm
38,5 kg/km
117 kg/km
200 N
