CATLine CAT 7A R

halogen-free Industrial Ethernet Cables for Railway Technology

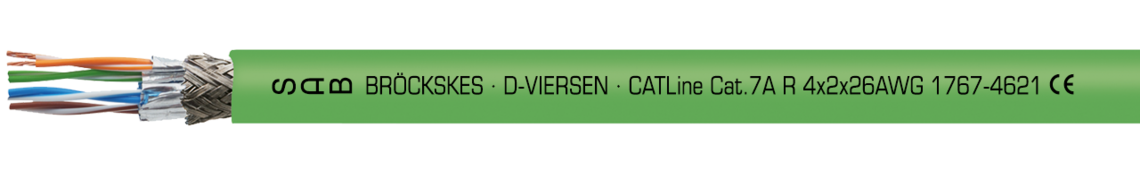

Marking for CATLine CAT 7A R 17674621: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.7A R 4x2x26AWG 1767-4621 CE

Download data sheet for CATLine CAT 7A R

Questions about our products?

Application

The CAT 7A R Industrial Ethernet cable for the railway industry meets the requirements of EN 45545-2. The CAT 7A cable is used for Ethernet and/or Gigabit Ethernet networks in rail vehicles, e.g. for setting up passenger information systems, surveillance technology or e-ticketing systems.

Outstanding features

halogen-free
no flame propagation
flame retardant and self-extinguishing
good against aggressive chemicals
flame retardant acc. to UN/ECE R118
fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Conductor	bare copper strands, fine wires
Insulation	PE
Colour code	white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
Stranding	twisted to pairs with alu foil, pairs together
Screen	tinned copper braiding
Sheath material	Special SABIX®
Sheath colour	green (similar RAL 6018)

Conductor

bare copper strands, fine wires

Insulation

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

twisted to pairs with alu foil,

pairs together

Screen

tinned copper braiding

Sheath material

Special SABIX®

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage	max. 90 V
Testing voltage	core/core: 1500 V core/screen: 1200 V
Min. bending radius	fixed laying: 5 x d flexible application: 12 x d
Temperature range	fixed laying: -40/+70°C flexible application: -30/+70 °C
Halogen-free	acc. to EN 50306-1 + EN 50264-1. Development of HCl is ≤ 0,5% acc. to IEC 60754-1. pH-value is ≥ 4,3 acc. to IEC 60754-2. Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2. Fluoric content ≤ 0,1% acc. to IEC 60684-2
Fire performance	no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2. Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Smoke density	acc. to IEC 61034 + VDE 0482-1034
Toxicity	acc. to EN 50305 + VDE 0260-305
Characteristic impedance	100Ω ± 10Ω, accomplishes the electrical and transmission requirements with high frequency with reference to EN 50288-9-2 / CAT 7A
Flexibility	good
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

fixed laying: -40/+70°C

flexible application: -30/+70 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1.

Development of HCl is ≤ 0,5% acc. to IEC 60754-1.

pH-value is ≥ 4,3 acc. to IEC 60754-2.

Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content ≤ 0,1% acc. to IEC 60684-2

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Characteristic impedance

100Ω ± 10Ω, accomplishes the electrical and transmission requirements with high frequency

with reference to EN 50288-9-2 / CAT 7A

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	no. of cores	cross section	max. core-ø	outer-ø	copper figure	cable weight ca.
17674621	8	26 AWG	1,60 mm	7,8 ± 10% mm	38,5 kg/km	75 kg/km	Send inquiry

item no.

no. of cores

cross section

max. core-ø

outer-ø

copper figure

cable weight ca.

17674621

26 AWG

1,60 mm

7,8 ± 10% mm

38,5 kg/km

75 kg/km

Send inquiry

Other dimensions and colours are possible on request.
