Industrial Ethernet Cables CAT 5e, CAT 6A and CAT 7A especially for use in rail vehicles

The new cable type according to the latest standard CATLine CAT 5e R, CAT 6A R and CAT 7A R completes the product range of the cable specialist and enables a wiring acc. to the highest current safety standard of the rail industry .

Application fields

The application field of the new cable types are Ethernet or Gigabit Ethernet crosslinking in rail vehicles for example in passenger information systems, control technique or E-ticketing systems.

Customer oriented production

Furthermore, the production possibilities of SAB do not only include standard dimensions but also hybrid cables with integrated CAT7 element especially on customer´s request.

Fulfilled standards:

Halogen-free

DIN EN 50306-1 + DIN EN 50264-1.

DIN EN 50267-2-1 development of HCl is ≤ 0,5%

DIN EN 50267-2-2 pH-value is  ≥ 4,3 and capacitance is  ≤ 10,0 μS/mm

DIN EN 60684-2 content of fluor ≤ 0,1%

Burning characteristics

DIN EN 60332-3-25 + DIN EN 50305 section  9.1.1 + 9.1.2.

DIN EN 60332-1-2

Smoke density

DIN EN 61034

Toxicity

DIN EN 50305

Requirements on cables R15 (EL1A) acc. to DIN EN 45545-2 for the hazardous classes HL 1-3 are fulfilled.

Rail CAT 5e
CATLine CAT 5e R
Rail CAT 6A
CATLine CAT 6A R

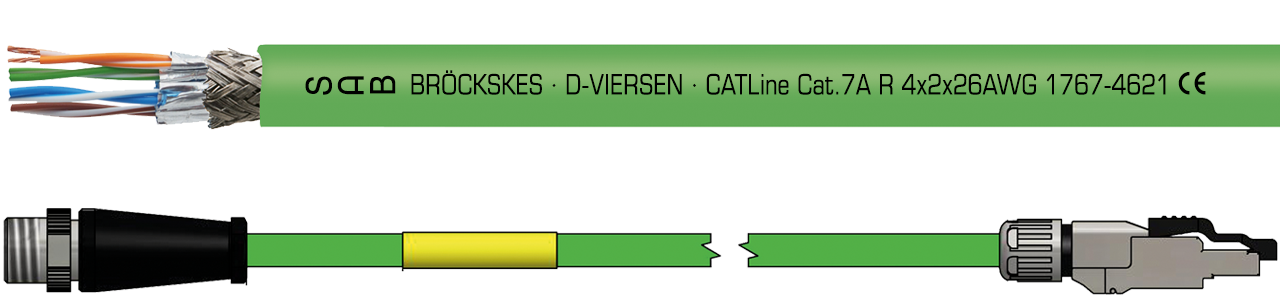

Rail CAT 7A
CATLine CAT 7A R
halogen-free continuously flexible Industrial Ethernet Cables for Railway Technology
CATLine CAT 5e R flex
halogen-free continuously flexible Industrial Ethernet Cables for Railway Technology
CATLine CAT 6A R flex
halogen-free continuously flexible Industrial Ethernet Cables for Railway Technology
CATLine CAT 7A R flex
