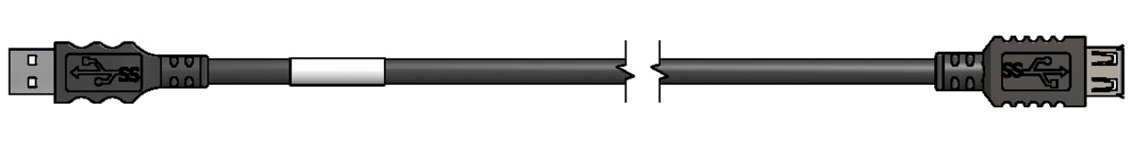

USB 3.0 cable

with moulded type A male connector and type A female connector

Application

Mechanically very rugged USB 3.0 extension cable with moulded type A male connector and type A female connector. This USB 3.0 cable is suitable for cable tracks.

Outstanding features

Cable characteristics:

  • side 1: USB 3.0 type A male connector
  • side 2: USB 3.0 type A female connector

Additional information

SAB marking:
item number, order number, length

Cable data

Construction

3x(2x30AWG)ST+2x24AWG

Insulation

SABIX®

Outer sheath

PUR

Outer diameter

approx. 6,1 mm

Min. bending radius

10 x d

Peak operating voltage

max. 350 V

Construction

3x(2x30AWG)ST+2x24AWG

Insulation

SABIX®

Outer sheath

PUR

Outer diameter

approx. 6,1 mm

Min. bending radius

10 x d

Peak operating voltage

max. 350 V

Connector

side 1

USB 3.0 type A male connector

side 2

USB 3.0 type A female connector

side 1

USB 3.0 type A male connector

side 2

USB 3.0 type A female connector

Configuration examples

item no. length
S0604-4005-0005050 cm Send inquiry
S0604-4005-00100100 cm Send inquiry
S0604-4005-00200200 cm Send inquiry
S0604-4005-00300300 cm Send inquiry
S0604-4005-00500500 cm Send inquiry
item no.
length
S0604-4005-00050
50 cm
S0604-4005-00100
100 cm
S0604-4005-00200
200 cm
S0604-4005-00300
300 cm
S0604-4005-00500
500 cm

Other lengths on request.

Customized cable assembly according to your wishes.
