Application

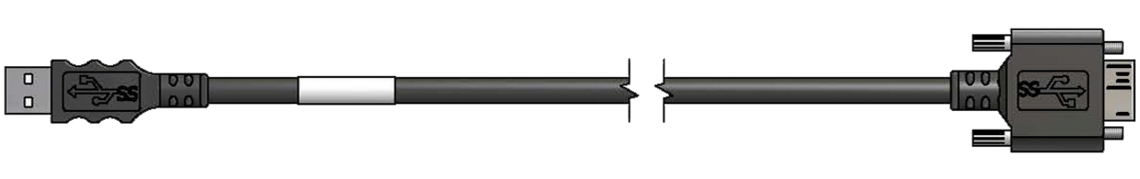

USB 3.0 connection cable between PC and 3D camera with moulded type A and Micro-B male connector. The USB 3.0 cable for cable track applications is suitable for mechanically very rugged use.
Outstanding features
Cable characteristics:
- mechanically very rugged
- PUR cable suitable for cable tracks
Additional information
SAB marking:
item number, order number, length
Cable data
Construction | 3x(2x30AWG)ST+2x24AWG |
---|---|
Insulation | SABIX® |
Outer sheath | PUR |
Outer diameter | approx. 6,1 mm |
Min. bending radius | 10 x d |
Peak operating voltage | max. 350 V |
Construction
3x(2x30AWG)ST+2x24AWG
Insulation
SABIX®
Outer sheath
PUR
Outer diameter
approx. 6,1 mm
Min. bending radius
10 x d
Peak operating voltage
max. 350 V
Connector
side 1 | USB 3.0 type A male connector |
---|---|
side 2 | USB 3.0 type Micro-B male connector |
side 1
USB 3.0 type A male connector
side 2
USB 3.0 type Micro-B male connector
Configuration examples
item no. | length | |
---|---|---|
S0604-4004-00100 | 100 cm | Send inquiry |
S0604-4004-00200 | 200 cm | Send inquiry |
S0604-4004-00300 | 300 cm | Send inquiry |
S0604-4004-00500 | 500 cm | Send inquiry |
item no.
length
Other lengths on request.
