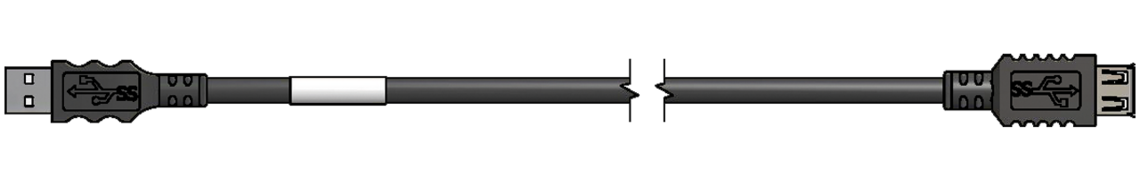

USB 3.0 cable
with moulded type A male connector and type A female connector
Application
Mechanically very rugged USB 3.0 extension cable with moulded type A male connector and type A female connector. This USB 3.0 cable is suitable for cable tracks.
Outstanding features
Cable characteristics:
- side 1: USB 3.0 type A male connector
- side 2: USB 3.0 type A female connector
Additional information
SAB marking:
item number, order number, length
Cable data
| Construction | 3x(2x30AWG)ST+2x24AWG |
|---|---|
| Insulation | SABIX® |
| Outer sheath | PUR |
| Outer diameter | approx. 6,1 mm |
| Min. bending radius | 10 x d |
| Peak operating voltage | max. 350 V |
Construction
3x(2x30AWG)ST+2x24AWG
Insulation
SABIX®
Outer sheath
PUR
Outer diameter
approx. 6,1 mm
Min. bending radius
10 x d
Peak operating voltage
max. 350 V
Connector
| side 1 | USB 3.0 type A male connector |
|---|---|
| side 2 | USB 3.0 type A female connector |
side 1
USB 3.0 type A male connector
side 2
USB 3.0 type A female connector
Configuration examples
| item no. | length | |
|---|---|---|
| S0604-4005-00050 | 50 cm | Send inquiry |
| S0604-4005-00100 | 100 cm | Send inquiry |
| S0604-4005-00200 | 200 cm | Send inquiry |
| S0604-4005-00300 | 300 cm | Send inquiry |
| S0604-4005-00500 | 500 cm | Send inquiry |
item no.
length
Other lengths on request.
