SABIX® CB 620 FRNC

Halogen-free, flame retardant CAN-Bus cable

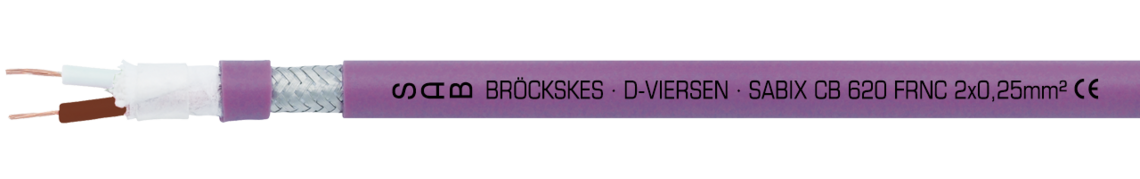

Marking for SABIX CB 620 FRNC 66202251: SAB BRÖCKSKES · D-VIERSEN · SABIX CB 620 FRNC 2 x 0,25 mm² CE

Marking for SABIX CB 620 FRNC 66202251: SAB BRÖCKSKES · D-VIERSEN · SABIX CB 620 FRNC 2 x 0,25 mm² CE

Application

The halogen-free and flame-resistant CAN bus cable SABIX® CB 620 FRNC does not propagate fires according to IEC 60332-3 + EN 60332-3 Cat. C respectively D. This cable is used for fast data transmission in power supply chains.

Outstanding features

  • halogen-free
  • no flame propagation
  • fast data transmission

Construction

Conductor

bare copper strands acc. to VDE 0812

Insulation

SABIX®

Colour code

with reference to DIN 47100

Wrapping

PETP-foil

Screen

tinned copper braiding

Sheath material

SABIX®

Sheath colour

redlilac (RAL 4001)

Conductor

bare copper strands acc. to VDE 0812

Insulation

SABIX®

Colour code

with reference to DIN 47100

Wrapping

PETP-foil

Screen

tinned copper braiding

Sheath material

SABIX®

Sheath colour

redlilac (RAL 4001)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1000V

core/screen: 1000V

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+85 °C

flexible application: -30/+85 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + IEC 60332-3-25 Cat. C resp. D, see chapter N „Technical Data“

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Characteristic impedance

120 Ω (95 - 140 Ω)

Flexibility

good

Application in cable tracks

not recommended

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1000V

core/screen: 1000V

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+85 °C

flexible application: -30/+85 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + IEC 60332-3-25 Cat. C resp. D, see chapter N „Technical Data“

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Characteristic impedance

120 Ω (95 - 140 Ω)

Flexibility

good

Application in cable tracks

not recommended

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø ± 5% Copper figure Cable weight ≈
L662022512 x 0,25 mm²5,8 mm19 kg/km44 kg/km Send inquiry
item no.
Dimension
Outer-ø ± 5%
Copper figure
Cable weight ≈
L66202251
2 x 0,25 mm²
5,8 mm
19 kg/km
44 kg/km

Other dimensions and colours are possible on request.
