MEGA 147 H05V2-K H05V-K

PVC insulated wiring cable acc. to HA R/UL/VDE/CSA

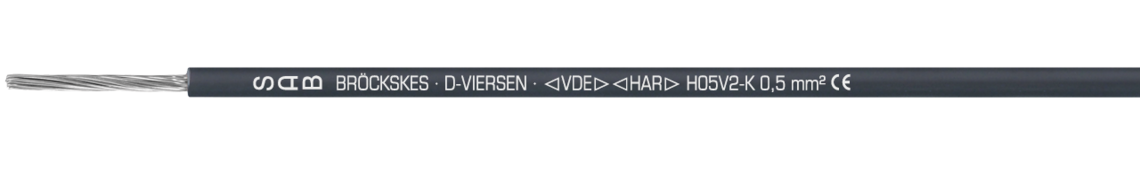

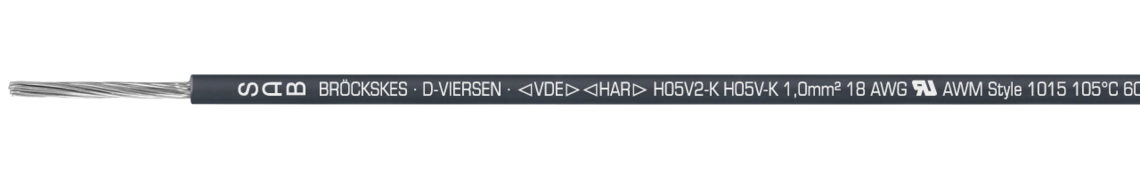

Marking for H05V2-K 31470150: SAB BRÖCKSKES · D-VIERSEN · < VDE > < HAR > H05V2-K H05V-K 0,5 mm² 20 AWG UL AWM Style 1015 105°C 600V E172204 CSA Type TEW 105°C 600V FT1 LL104758 CE

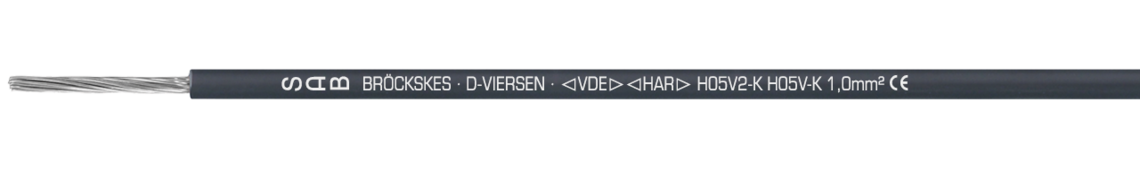

Marking for H05V2-K 31470150: SAB BRÖCKSKES · D-VIERSEN · < VDE > < HAR > H05V2-K H05V-K 0,5 mm² 20 AWG UL AWM Style 1015 105°C 600V E172204 CSA Type TEW 105°C 600V FT1 LL104758 CE

Application

MEGA 147 H05V2-K/H05V-K is a PVC insulated wiring cable that is harmonized acc- to European standards. It is recommended for use in construction of control cabinets, appliances and devices for communication technologies, household appliances, generator, transformer and machine construction.

Outstanding features

  • 300/500 V
  • flexible conductor
  • harmonised acc. to European standard

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI3 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI3 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

UL/CSA: up to +105 °C



DIN VDE fixed laying: -40/+90°C

DIN VDE flexible application: +5/+90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

2000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

UL/CSA: up to +105 °C



DIN VDE fixed laying: -40/+90°C

DIN VDE flexible application: +5/+90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1

Dimensions

item no.

nominal cross
section

largest single
wire-ø

approx. outer-ø

copper figure

cable weight ca.

314701140,14 mm²0,11 mm2 mm1,3 kg/km6 kg/km Send inquiry
314701250,25 mm²0,16 mm2,2 mm2,4 kg/km7 kg/km Send inquiry
314701340,34 mm²0,16 mm2,3 mm3,3 kg/km9 kg/km Send inquiry
314701500,5 mm²0,21 mm2,5 mm5,1 kg/km11 kg/km Send inquiry
314701750,75 mm²0,21 mm2,7 mm7,2 kg/km14 kg/km Send inquiry
314701801 mm²0,21 mm2,8 mm9,6 kg/km16 kg/km Send inquiry
item no.
nominal cross
section
largest single
wire-ø
approx. outer-ø
copper figure
cable weight ca.
31470114
0,14 mm²
0,11 mm
2 mm
1,3 kg/km
6 kg/km
31470125
0,25 mm²
0,16 mm
2,2 mm
2,4 kg/km
7 kg/km
31470134
0,34 mm²
0,16 mm
2,3 mm
3,3 kg/km
9 kg/km
31470150
0,5 mm²
0,21 mm
2,5 mm
5,1 kg/km
11 kg/km
31470175
0,75 mm²
0,21 mm
2,7 mm
7,2 kg/km
14 kg/km
31470180
1 mm²
0,21 mm
2,8 mm
9,6 kg/km
16 kg/km

Other dimensions and colours are possible on request.
