SD 960 CP

UL/CSA flexible PUR data cable with coloured cores and overall copper screen

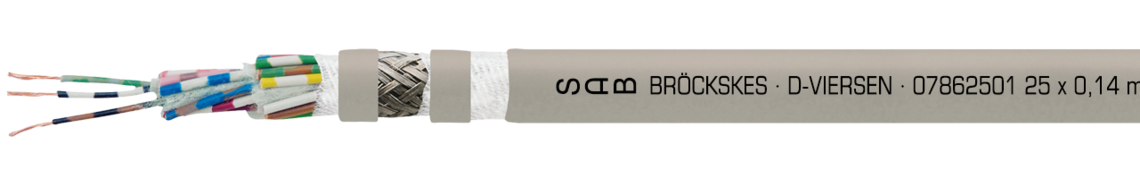

Marking for SD 960 CP 07862501: SAB BRÖCKSKES · D-VIERSEN · 07862501 25 x 0,14 mm² SD 960 CP 26 AWG/25c 07862625 UL AWM Style 20233 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Marking for SD 960 CP 07862501: SAB BRÖCKSKES · D-VIERSEN · 07862501 25 x 0,14 mm² SD 960 CP 26 AWG/25c 07862625 UL AWM Style 20233 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Application

SD 960 CP is a continuously flexible PUR data cable with overall copper screen and numbered cores as well as very good EMC characteristics. This wire with UL/CSA approval is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, car manufacturing industry, and press manufacturing.

Outstanding features

  • screened, very good EMC protection
  • high abrasion resistance
  • very good flexibility

Additional information

Possible on request:

  • in dimensions 0,50 mm² and 0,75 mm²
  • with orange outer sheath and coloured cores acc. to DIN 47100

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

acc. to colour code US 2

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PU acc. to UL 758 with mat surface

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

max. 350 V

Voltage UL/CSA

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70 °C

DIN VDE flexible application: -5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to UL FT1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL/CSA

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70 °C

DIN VDE flexible application: -5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to UL FT1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
078602012 x 0,14 mm²0,11 mm5 mm16,5 kg/km31 kg/km Send inquiry
078603013 x 0,14 mm²0,11 mm5,2 mm17,9 kg/km33 kg/km Send inquiry
078604014 x 0,14 mm²0,11 mm5,6 mm19,4 kg/km38 kg/km Send inquiry
078605015 x 0,14 mm²0,11 mm6 mm22,7 kg/km45 kg/km Send inquiry
078607017 x 0,14 mm²0,11 mm6,8 mm27,1 kg/km56 kg/km Send inquiry
0786100110 x 0,14 mm²0,11 mm7,7 mm34,9 kg/km68 kg/km Send inquiry
0786140114 x 0,14 mm²0,11 mm8,9 mm41,9 kg/km88 kg/km Send inquiry
0786180118 x 0,14 mm²0,11 mm9,1 mm50,5 kg/km102 kg/km Send inquiry
0786250125 x 0,14 mm²0,11 mm11,2 mm81,5 kg/km147 kg/km Send inquiry
078602022 x 0,25 mm²0,11 mm5,3 mm18,7 kg/km33 kg/km Send inquiry
078603023 x 0,25 mm²0,11 mm5,6 mm21,2 kg/km39 kg/km Send inquiry
078604024 x 0,25 mm²0,11 mm5,9 mm25,5 kg/km45 kg/km Send inquiry
078605025 x 0,25 mm²0,11 mm6,4 mm28,1 kg/km53 kg/km Send inquiry
078607027 x 0,25 mm²0,11 mm8,1 mm36,5 kg/km81 kg/km Send inquiry
0786100210 x 0,25 mm²0,11 mm9 mm49,8 kg/km89 kg/km Send inquiry
0786140214 x 0,25 mm²0,11 mm9,6 mm61,9 kg/km111 kg/km Send inquiry
0786180218 x 0,25 mm²0,11 mm9,8 mm72,4 kg/km129 kg/km Send inquiry
0786250225 x 0,25 mm²0,11 mm12,1 mm114,5 kg/km187 kg/km Send inquiry
078602032 x 0,34 mm²0,11 mm5,5 mm20,5 kg/km36 kg/km Send inquiry
078603033 x 0,34 mm²0,11 mm5,8 mm23,9 kg/km42 kg/km Send inquiry
078604034 x 0,34 mm²0,11 mm6,2 mm29,1 kg/km50 kg/km Send inquiry
078605035 x 0,34 mm²0,11 mm6,6 mm34 kg/km59 kg/km Send inquiry
078607037 x 0,34 mm²0,11 mm7,6 mm44,2 kg/km73 kg/km Send inquiry
0786100310 x 0,34 mm²0,11 mm9,4 mm70,8 kg/km122 kg/km Send inquiry
0786140314 x 0,34 mm²0,11 mm10 mm86,8 kg/km154 kg/km Send inquiry
0786180318 x 0,34 mm²0,11 mm10,5 mm106,4 kg/km161 kg/km Send inquiry
0786250325 x 0,34 mm²0,11 mm12,7 mm141,2 kg/km215 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
07860201
2 x 0,14 mm²
0,11 mm
5 mm
16,5 kg/km
31 kg/km
07860301
3 x 0,14 mm²
0,11 mm
5,2 mm
17,9 kg/km
33 kg/km
07860401
4 x 0,14 mm²
0,11 mm
5,6 mm
19,4 kg/km
38 kg/km
07860501
5 x 0,14 mm²
0,11 mm
6 mm
22,7 kg/km
45 kg/km
07860701
7 x 0,14 mm²
0,11 mm
6,8 mm
27,1 kg/km
56 kg/km
07861001
10 x 0,14 mm²
0,11 mm
7,7 mm
34,9 kg/km
68 kg/km
07861401
14 x 0,14 mm²
0,11 mm
8,9 mm
41,9 kg/km
88 kg/km
07861801
18 x 0,14 mm²
0,11 mm
9,1 mm
50,5 kg/km
102 kg/km
07862501
25 x 0,14 mm²
0,11 mm
11,2 mm
81,5 kg/km
147 kg/km
07860202
2 x 0,25 mm²
0,11 mm
5,3 mm
18,7 kg/km
33 kg/km
07860302
3 x 0,25 mm²
0,11 mm
5,6 mm
21,2 kg/km
39 kg/km
07860402
4 x 0,25 mm²
0,11 mm
5,9 mm
25,5 kg/km
45 kg/km
07860502
5 x 0,25 mm²
0,11 mm
6,4 mm
28,1 kg/km
53 kg/km
07860702
7 x 0,25 mm²
0,11 mm
8,1 mm
36,5 kg/km
81 kg/km
07861002
10 x 0,25 mm²
0,11 mm
9 mm
49,8 kg/km
89 kg/km
07861402
14 x 0,25 mm²
0,11 mm
9,6 mm
61,9 kg/km
111 kg/km
07861802
18 x 0,25 mm²
0,11 mm
9,8 mm
72,4 kg/km
129 kg/km
07862502
25 x 0,25 mm²
0,11 mm
12,1 mm
114,5 kg/km
187 kg/km
07860203
2 x 0,34 mm²
0,11 mm
5,5 mm
20,5 kg/km
36 kg/km
07860303
3 x 0,34 mm²
0,11 mm
5,8 mm
23,9 kg/km
42 kg/km
07860403
4 x 0,34 mm²
0,11 mm
6,2 mm
29,1 kg/km
50 kg/km
07860503
5 x 0,34 mm²
0,11 mm
6,6 mm
34 kg/km
59 kg/km
07860703
7 x 0,34 mm²
0,11 mm
7,6 mm
44,2 kg/km
73 kg/km
07861003
10 x 0,34 mm²
0,11 mm
9,4 mm
70,8 kg/km
122 kg/km
07861403
14 x 0,34 mm²
0,11 mm
10 mm
86,8 kg/km
154 kg/km
07861803
18 x 0,34 mm²
0,11 mm
10,5 mm
106,4 kg/km
161 kg/km
07862503
25 x 0,34 mm²
0,11 mm
12,7 mm
141,2 kg/km
215 kg/km

Other dimensions and colours are possible on request.
