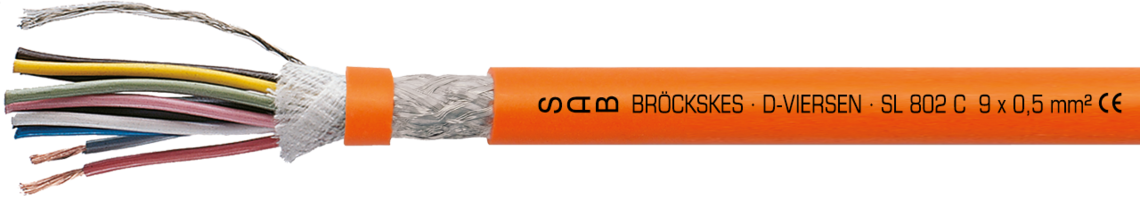

SL 802 C

TPE/PUR feedback cable with overall copper screen

Marking for SL 802 C 08020050: SAB BRÖCKSKES · D-VIERSEN · SL 802 C 9 x 0,5 mm² CE

Marking for SL 802 C 08020050: SAB BRÖCKSKES · D-VIERSEN · SL 802 C 9 x 0,5 mm² CE

Application

SL 802 C is a TPE/PUR feedback cable with overall copper screen and uncritical PWIS. It is a highly flexible, mobile connection cable for e.g. speedo, brake, temperature control in motors, for continuously flexible applications in automation technology, control and production engineering, in cable tracks on wood-working machines, machine and industrial plant construction, even with high mechanical demands and in dry, damp, and wet conditions as well as at low temperatures.

Outstanding features

  • very good EMC characteristics
  • very high flexibility
  • very long service life
  • suitable for cable tracks
  • adhesion-free installation
  • oil resistant
  • halogen-free
  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • flexible at low temperatures
  • DESINA® colours

Additional information

Suitable for resolvers and shaft encoders

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE L/MD acc. to EN 50290-2-23 + VDE 0819-103

Colour code

coloured

Stranding

in layers

Screen

acc. to dimension:

pairs screened or wrapped with tinned copper braid

Inner sheath

TPE

Stranding

cores/pairs twisted together in layers

Wrapping

non-woven tape or netting tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE L/MD acc. to EN 50290-2-23 + VDE 0819-103

Colour code

coloured

Stranding

in layers

Screen

acc. to dimension:

pairs screened or wrapped with tinned copper braid

Inner sheath

TPE

Stranding

cores/pairs twisted together in layers

Wrapping

non-woven tape or netting tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

orange (RAL 2003)

Technical data

Peak operating voltage

max. 500 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 500 V

Testing voltage

core/core 2000 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Sheath colour Largest single
wire-ø
Outer-ø ± 10% Copper figure Cable weight ≈
080200509 x 0,50RAL 20030,16 mm7,8 mm66,2 kg/km97 kg/km Send inquiry
item no.
Dimension
Sheath colour
Largest single
wire-ø
Outer-ø ± 10%
Copper figure
Cable weight ≈
08020050
9 x 0,50
RAL 2003
0,16 mm
7,8 mm
66,2 kg/km
97 kg/km

Other dimensions and colours are possible on request.
