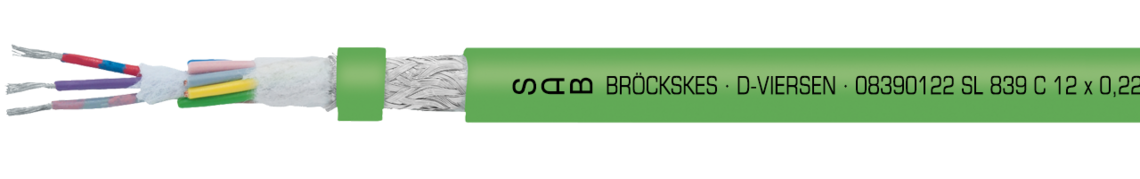

SL 839 C

PUR transmission cable with overall copper screen

Marking for SL 839 C 08390122: SAB BRÖCKSKES · D-VIERSEN · 08390122 SL 839 C 12 x 2 x 0,22 mm² UL AWM Style 20236 80°C 30V

Marking for SL 839 C 08390122: SAB BRÖCKSKES · D-VIERSEN · 08390122 SL 839 C 12 x 2 x 0,22 mm² UL AWM Style 20236 80°C 30V

Application

SL 839 C is a PUR transmission cable with good EMC characteristics and overall copper screen. It is a highly flexible, mobile connection cable for e.g. speedo, brake, temperature control in motors, for continuously flexible applications in automation technology, control and production engineering, in cable tracks on wood-working machines, machine and industrial plant construction, even with high mechanical demands and in dry, damp, and wet conditions as well as at low temperatures.

Outstanding features

  • UL recognized
  •  good EMC characteristics
  • suitable for cable tracks
  • flexible installation
  • oil resistant
  • long service life
  • adhesion-free installation
  • halogen-free
  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • DESINA® colours

Additional information

suitable for resolvers and shaft encoders

Construction

Conductor

tinned copper strands with reference to VDE 0812

Insulation

special Polymer

Colour code

coloured

Screen

acc. to dimension:

pairs wrapped with tinned copper braid

Inner sheath

special Polymer

Stranding

cores or pairs

Stranding

cores/pairs twisted together in layers

Wrapping

one non-woven tape or non-woven tape and PETP foil

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

or PU acc. to UL 758

Sheath colour

green (RAL 6018)

Conductor

tinned copper strands with reference to VDE 0812

Insulation

special Polymer

Colour code

coloured

Screen

acc. to dimension:

pairs wrapped with tinned copper braid

Inner sheath

special Polymer

Stranding

cores or pairs

Stranding

cores/pairs twisted together in layers

Wrapping

one non-woven tape or non-woven tape and PETP foil

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

or PU acc. to UL 758

Sheath colour

green (RAL 6018)

Technical data

Peak operating voltage

max. 30 V

Voltage

UL: 30 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70 °C

flexible application: -20/+70 °C

UL: up to +80 °C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

or oilrating 60 °C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc. or oilrating 60°C acc. to UL 758

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 30 V

Voltage

UL: 30 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+70 °C

flexible application: -20/+70 °C

UL: up to +80 °C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

or oilrating 60 °C acc. to UL 758

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc. or oilrating 60°C acc. to UL 758

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Sheath colour Largest single
wire-ø
Outer-ø Copper figure Cable weight ≈
083901143 x (2 x 0,14) D + 2 x (0,50) DRAL 60180,11/0,16 mm9,0 ± 0,4 mm71,4 kg/km96 kg/km Send inquiry
083902143 x (2 x 0,14) D + 4 x 0,14 + 2 x 0,50RAL 60180,11/0,16 mm8,8 ± 0,4 mm63,7 kg/km97 kg/km Send inquiry
083910503 x (2 x 0,14) D + 4 x 0,14 + 4 x 0,22 + 2 x 0,50RAL 60180,11/0,16 mm9,5 ± 0,4 mm79,0 kg/km111 kg/km Send inquiry
083901384 x 2 x 0,38 + 4 x 0,50RAL 60180,11/0,16 mm8,9 ± 0,4 mm76,3 kg/km106 kg/km Send inquiry
083903188 x 2 x 0,18RAL 60180,11 mm7,8 ± 0,4 mm48,0 kg/km74 kg/km Send inquiry
0839012212 x 0,22RAL 60180,11 mm6,9 ± 0,4 mm42,5 kg/km63 kg/km Send inquiry
083901184 x 0,18RAL 60180,11 mm4,9 ± 0,4 mm18,9 kg/km28 kg/km Send inquiry
083902184 x 2 x 0,18RAL 60180,11 mm6,3 ± 0,4 mm30,8 kg/km47 kg/km Send inquiry
083901152 x 2 x 0,15 + 2 x 0,34RAL 60180,11/0,16 mm6,9 ± 0,3 mm28,1 kg/km52 kg/km Send inquiry
item no.
Dimension
Sheath colour
Largest single
wire-ø
Outer-ø
Copper figure
Cable weight ≈
08390114
3 x (2 x 0,14) D + 2 x (0,50) D
RAL 6018
0,11/0,16 mm
9,0 ± 0,4 mm
71,4 kg/km
96 kg/km
08390214
3 x (2 x 0,14) D + 4 x 0,14 + 2 x 0,50
RAL 6018
0,11/0,16 mm
8,8 ± 0,4 mm
63,7 kg/km
97 kg/km
08391050
3 x (2 x 0,14) D + 4 x 0,14 + 4 x 0,22 + 2 x 0,50
RAL 6018
0,11/0,16 mm
9,5 ± 0,4 mm
79,0 kg/km
111 kg/km
08390138
4 x 2 x 0,38 + 4 x 0,50
RAL 6018
0,11/0,16 mm
8,9 ± 0,4 mm
76,3 kg/km
106 kg/km
08390318
8 x 2 x 0,18
RAL 6018
0,11 mm
7,8 ± 0,4 mm
48,0 kg/km
74 kg/km
08390122
12 x 0,22
RAL 6018
0,11 mm
6,9 ± 0,4 mm
42,5 kg/km
63 kg/km
08390118
4 x 0,18
RAL 6018
0,11 mm
4,9 ± 0,4 mm
18,9 kg/km
28 kg/km
08390218
4 x 2 x 0,18
RAL 6018
0,11 mm
6,3 ± 0,4 mm
30,8 kg/km
47 kg/km
08390115
2 x 2 x 0,15 + 2 x 0,34
RAL 6018
0,11/0,16 mm
6,9 ± 0,3 mm
28,1 kg/km
52 kg/km

Other dimensions and colours are possible on request.
