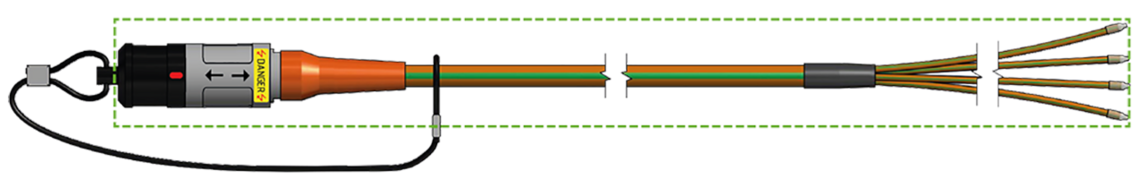

HV 4-channel thermocouple with FEP insulated thermo channels type K
Application
Safe HV temperature measurement in HV environments
Outstanding features
- contact protection of individual channels
- mechanically rugged
Additional information
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.
SAB identification: item number, batch number
Cable data
| Connection cable | HV thermo cable type K |
|---|---|
| Insulation | FEP – green and white |
| Pair sheath | FEP – orange with green vertical stripes |
| Inner sheath | FEP – blue acc. to RAL 5024 |
| Outer sheath | PUR |
| Sheath colour | orange with green vertical stripes |
| Stranding | paired construction (for EMC) |
| Outer diameter | approx. 6,1 mm |
| Dielectric strength | 1000 V AC over single channel |
| Temperature range | fixed laying: -50°C / +150°C flexible application: -40°C / +150°C |
HV thermo cable type K
FEP – green and white
FEP – orange with green vertical stripes
FEP – blue acc. to RAL 5024
PUR
orange with green vertical stripes
paired construction (for EMC)
approx. 6,1 mm
1000 V AC over single channel
fixed laying: -50°C / +150°C
flexible application: -40°C / +150°C
Sensor
| Thermocouple | 4 x type K |
|---|---|
| Limit deviation | class 1 |
| Measuring point | bare or electrically insulated (1000 V) |
| Temperature range single channel | -40°C / +180°C |
| Response time | on request |
4 x type K
class 1
bare or electrically insulated (1000 V)
-40°C / +180°C
on request
Connector
| Lemo Redel male connector | with orange kink protection sleeve and black protecting cap, 8-pin, B-coded 1000 V AC voltage-stable – IP 67 when connected |
|---|
with orange kink protection sleeve and black protecting cap, 8-pin, B-coded
1000 V AC voltage-stable – IP 67 when connected
Tests
| Cable test | over single channel in water bath – 5000 V AC – 5 min – with reference to EN 50264-2-1 |
|---|---|
| Sensor test | Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE). Control of contact protection towards outside – 3000 V/1 min AC |
over single channel in water bath –
5000 V AC – 5 min – with reference to EN 50264-2-1
Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE).
Control of contact protection towards outside – 3000 V/1 min AC
Configuration examples
| item no. | Connection cable length | Length channel 1 | Length channel 2 | Length channel 3 | Length channel 4 | Measuring tip | |
|---|---|---|---|---|---|---|---|
| T141-056-330 | 2400 mm | 400 mm | 400 mm | 400 mm | 400 mm | insulated | Send inquiry |
| T141-051-650 | 2400 mm | 400 mm | 400 mm | 400 mm | 400 mm | bare | Send inquiry |
| T141-061-124 | 3000 mm | 500 mm | 500 mm | 500 mm | 500 mm | insulated | Send inquiry |
Total cable and channel lengths can be realised on customer’s request.
