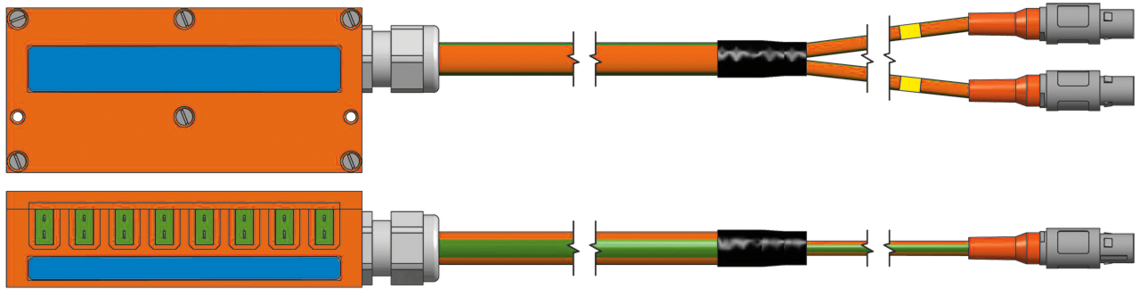

HBM Quantum X to Redel plug
HV measuring technology / adaptation / different measuring systems
Application
High voltage sensors in road tests are used with the 4-channel type K measuring system with high IP protection class, e.g. high voltage modules from CSM (HVTHMM). For test bench applications other transducers are used (e.g. HBM QuantumX). This adapter offers the possibility to adapt 8 x 1 channel HV sensors for QuantumX modules to 2 x 4-channel Redel Push/Pull connector.
Technical data
| connection cable length | according to customers requirements |
|---|---|
| stripped length | according to customers requirements |
| connection end 1 | ■ plastic housing for the connection of 8 HBM ■ miniature sockets with protection caps – 2 poles |
| connection end 2 | redel plug type K – 8 poles |
| marking | ■ standard: channel 1 - 4 and channel 5 - 8 ■ special: according to customers requirements |
| dimensions plastic plug connector | 160 x 74 x 43 (LXBXH) |
| configuration example | item no.: T149-060-663 cable length (mm): 1000 |
according to customers requirements
according to customers requirements
■ plastic housing for the connection of 8 HBM
■ miniature sockets with protection caps – 2 poles
redel plug type K – 8 poles
■ standard: channel 1 - 4 and channel 5 - 8
■ special: according to customers requirements
160 x 74 x 43 (LXBXH)
item no.: T149-060-663
cable length (mm): 1000
