GP 28V DC SC
Supply cable - 28 V DC SingleCore
Marking example: SAB BRÖCKSKES · D-Viersen · GP 28V DC SC(120,0mm²+4x1,0mm²) 3400-0350 CE and continuous meter marking
Application
For use in flexible applications, e.g. on mobile GPUs.
Outstanding features
- low capacity insulation
- abrasion-resistant PUR jacket
- control cores symmetrically arranged
- cold flexible
- halogene free
- oil resistant
- weather resistant
- with wear indicator
Additional information
Current carrying capacity
- acc. to VDE 0298-4, up to +50°C: 344 A

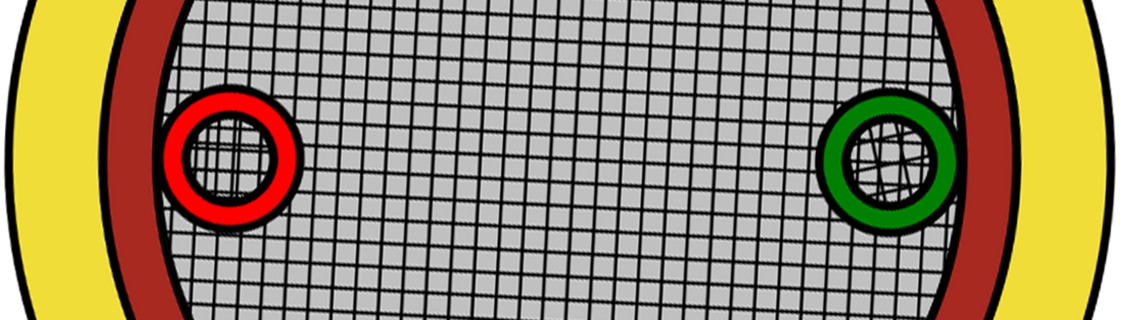

Construction
| Conductor | tinned copper strands, fine wires, acc. to IEC 60228 class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | 1,0 mm²: control cores: red, black, green, yellow, Ø: nom. 1,8 ± 0,2mm 120,0 mm²: power supply core: red |
| Stranding | control cores within the power supply core |
| Outer sheath | PUR, yellow |
tinned copper strands, fine wires, acc. to IEC 60228 class 5
SABIX®
1,0 mm²: control cores: red, black, green, yellow,
Ø: nom. 1,8 ± 0,2mm
120,0 mm²: power supply core: red
control cores within the power supply core
PUR, yellow
Technical Data
| Nominal voltage | Uo/U 28 V DC |
|---|---|
| Testing voltage | core/core 600 V 50 Hz |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d |
| Halogen-free | acc. to IEC 60754-1 |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C limited time of use: +110 °C (7500 h) |
| Fire performance | sheath material: UL 94 V2 |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids, etc. |
| Hydrolysis and microbial resistance | very good - acc. to EN 50363-10-2 |
| Salt water resistance: | very good - acc. to UL 1309 |
| Oil resistance: | very good - acc. to EN 50363-10-2 |
| MUD resistance | very good - acc. to IEC 60092-360 |
| Weather resistance | very good - acc. to HD 605 (VDE 0276-605) |
| Ozone resistance | very good - acc. to EN 50396 |
| Mechanical resistance | characteristics of the outer sheath: - high tensile strength - high tear strength - high abrasion resistance - high notch resistance - high shear strength |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
Uo/U 28 V DC
core/core 600 V 50 Hz
fixed laying: 4 x d
flexible application: 6 x d
acc. to IEC 60754-1
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
limited time of use: +110 °C (7500 h)
sheath material: UL 94 V2
good against acids, alkalines, solvents, hydraulic liquids, etc.
very good - acc. to EN 50363-10-2
very good - acc. to UL 1309
very good - acc. to EN 50363-10-2
very good - acc. to IEC 60092-360
very good - acc. to HD 605 (VDE 0276-605)
very good - acc. to EN 50396
characteristics of the outer sheath:
- high tensile strength
- high tear strength
- high abrasion resistance
- high notch resistance
- high shear strength
gemäß RoHS-Richtlinie der Europäischen Union
Reference values of current carrying capacity from derating curve
| for 20°C ambient temperature, taken from 80% curve | 500 A |
|---|---|
| for 20°C ambient temperature, taken from 100 % curve | 600 A |
| precondition | laying separately free in air |
500 A
600 A
laying separately free in air
Dimensions
| item no. |
No. of cores x cross section | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance max. Ω/km | |
|---|---|---|---|---|---|---|
| L34001621 | 1 x (120,0 + 4 x 1,0) | ca. 22,0 - max. 23,0 | 1296 | 1339 | 40,0 mm²: 0,50 | 1,0 mm²: 20,0 | Send inquiry |
cross section
max. Ω/km
Other dimensions and colours are possible on request.
