GP 400 SF
Supply cable - SymmetricalFlex
SAB BRÖCKSKES · D-Viersen · GP 400 SF 7x35,0mm²+6x3x1,0mm² 3400-0101 CE and continuous meter marking
Application
For flexible use on mobile GPUs, in PIT systems, on frequency converters and as a flexible extension for operating lengths over 25 metres.
Outstanding features
- low capacity insulation
- very flexible and smooth handling
- very good installation in narrowest spaces
- good resistance
- low wear
- with wear indicator
Additional information
Current carrying capacity
With reference to LV112-3 and based on an application-related current-time profile and the following operating conditions:
- ambient temperatures up to max. 52°C
- two phases of the same colour connected to one conductor
- other cores (35mm² bl and 1mm²) unloaded
- laying individually on or on surfaces
- 286 A for max. 10 min.
- 325 A for max. 5 min.
- 364 A for max. 10 s
- 520 A for max. 2 s

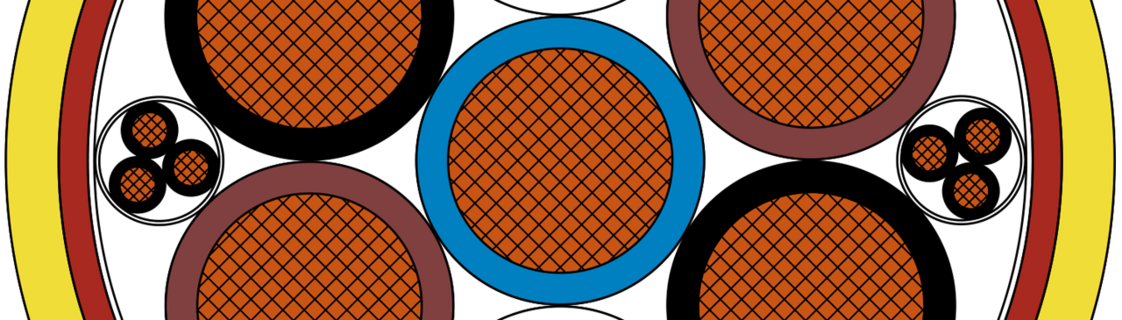

Construction
| Conductor | bare copper strands, fine wires acc. to IEC 60228 class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | 1,0 mm²: black with numbers 25,0 resp. 35,0 mm²: blue, 2 x (white, brown, black) |
| Stranding | 1,0 mm²: cores twisted to triples, wrapped with non-woven tape. All elements optimized stranded in layers, wrapped with non-woven tape |
| Inner sheath | special polymer, red |
| Outer sheath | special polymer, yellow |
bare copper strands, fine wires acc. to IEC 60228 class 5
SABIX®
1,0 mm²: black with numbers
25,0 resp. 35,0 mm²: blue, 2 x (white, brown, black)
1,0 mm²: cores twisted to triples, wrapped with non-woven tape.
All elements optimized stranded in layers, wrapped with non-woven tape
special polymer, red
special polymer, yellow
Technical data
| Nominal voltage | 1,0 mm²: Uo/U max. 115/200 V 25,0 resp. 35,0 mm²: Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V AC 50 Hz |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d for one single bend: 3 x d |
| Temperature range | fixed laying: -40/+70 °C flexible application: -30/+70 °C |
| Fire performance | acc. to IEC 60332-1-2 |
| Oil resistance | good - acc. to EN 50290-2-22 |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids, etc. |
| Weather resistance | good |
| Salt water resistance | good |
| Hydrolysis and microbial resistance | good |
| Ozone resistance | good |
| Abrasion | acc. to UL 2556-2021 and JIS C3005 |
| Fuel resistant | petrol, diesel and kerosene (Jet A-1) |
| Mechanical resistance | characteristics of the outer sheath: - good tensile strength - good abrasion resistance - good notch resistance |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
1,0 mm²: Uo/U max. 115/200 V
25,0 resp. 35,0 mm²: Uo/U 0,6/1 kV
core/core 4000 V AC 50 Hz
fixed laying: 4 x d
flexible application: 6 x d
for one single bend: 3 x d
fixed laying: -40/+70 °C
flexible application: -30/+70 °C
acc. to IEC 60332-1-2
good - acc. to EN 50290-2-22
good against acids, alkalines, solvents, hydraulic liquids, etc.
good
good
good
good
acc. to UL 2556-2021 and JIS C3005
petrol, diesel and kerosene (Jet A-1)
characteristics of the outer sheath:
- good tensile strength
- good abrasion resistance
- good notch resistance
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance max. Ω/km | |
|---|---|---|---|---|---|---|
| L34000100 | 7 x 25,0 mm² + 6 x 3 x 1,0 mm² | min. 38,0 mm - max. 39,9 mm | 1853 kg/km | 2757 kg/km | 25,0 mm²: 0,78 Ω/km | 1,0 mm²: 19,5 Ω/km | Send inquiry |
| L34000101 | 7 x 35,0 mm² + 6 x 3 x 1,0 mm² | min. 42,0 mm - max. 44,0 mm | 2525 kg/km | 3235 kg/km | 35,0 mm²: 0,554 Ω/km | 1,0 mm²: 19,5 Ω/km | Send inquiry |
| L34000103 | 7 x 35,0 mm² + 6 x 4 x 1,0 mm² | min. 42,0 mm - max. 44,0 mm | 2583 kg/km | 3320 kg/km | 35,0 mm²: 0,554 Ω/km | 1,0 mm²: 19,5 Ω/km | Send inquiry |
| L34000102 | 7 x 25,0 mm² + 6 x 4 x 1,0 mm² | min. 40,0 mm - max. 41,9 mm | 1910 kg/km | 2820 kg/km | 25,0 mm²: 0,78 Ω/km | 1,0 mm²: 19,5 Ω/km | Send inquiry |
cross section
max. Ω/km
Other dimensions and colours are possible on request.
