GP 400 Sy - PUR
Supply cable - Symmetrical
Marking example: SAB BRÖCKSKES · D-Viersen · GP 400 Sy 7x50,0mm²+6x4x1,0mm² 3400-0453 CE and continuous meter marking
Application
For use as a permanently installed supply cable in 400 Hz systems, e.g. between 400 Hz generator and cable dispenser.

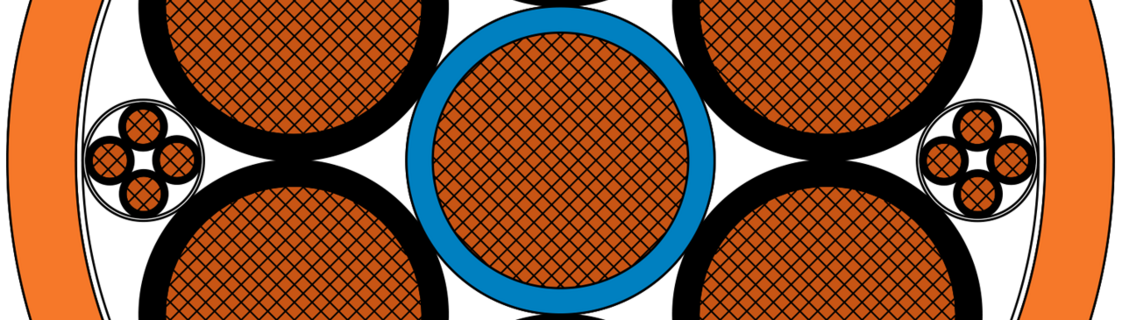

Construction
| Conductor | tinned copper strands, fine wires acc. to IEC 60228 class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | 1,0 mm²: black with numbers 1 – 24 35,0 mm² resp. 50,0 mm²: blue, 2 x white, 2 x brown, 2 x black |
| Stranding | 1,0 mm²: each four cores twisted in layers, wrapped with non-woven tape
Elements and 50,0 mm² cores twisted in layers, blue core in the centre, wrapped with non-woven tape |
| Outer Sheath | PUR, orange |
tinned copper strands, fine wires acc. to IEC 60228 class 5
SABIX®
1,0 mm²: black with numbers 1 – 24
35,0 mm² resp. 50,0 mm²:
blue, 2 x white, 2 x brown, 2 x black
1,0 mm²: each four cores twisted in layers, wrapped with non-woven tape
Elements and 50,0 mm² cores twisted in layers, blue core in the centre, wrapped with non-woven tape
PUR, orange
Technical data
| Nominal voltage | 1,0 mm²: Uo/U 115/200 V 50,0 mm²: Uo/U max. 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V AC 50 Hz |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d for one single bend: 3 x d |
| Halogen-free | acc. to IEC 60754-1 |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C +110 °C (bis 7500 h) limited time of use |
| Fire performance | sheath material: UL 94 V2 |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids, etc. |
| Hydrolysis and microbial resistance | very good - acc. to EN 50363-10-2 |
| Salt water resistance | very good - acc. to UL 1309 |
| Oil resistance | very good - acc. to EN 50363-10-2 |
| MUD resistance | very good - acc. to IEC 60092-360 |
| Weather resistance | very good - acc. to HD 605 (VDE 0276-605) |
| Ozone resistance | very good - acc. to EN 50396 |
| Mechanical resistance | characteristics of the PUR outer sheath: - high tensile strength - high tear strength - high abrasion resistance - high notch resistance - high shear strength |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
1,0 mm²: Uo/U 115/200 V
50,0 mm²: Uo/U max. 0,6/1 kV
core/core 4000 V AC 50 Hz
fixed laying: 4 x d
flexible application: 6 x d
for one single bend: 3 x d
acc. to IEC 60754-1
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
+110 °C (bis 7500 h) limited time of use
sheath material: UL 94 V2
good against acids, alkalines, solvents, hydraulic liquids, etc.
very good - acc. to EN 50363-10-2
very good - acc. to UL 1309
very good - acc. to EN 50363-10-2
very good - acc. to IEC 60092-360
very good - acc. to HD 605 (VDE 0276-605)
very good - acc. to EN 50396
characteristics of the PUR outer sheath:
- high tensile strength
- high tear strength
- high abrasion resistance
- high notch resistance
- high shear strength
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. |
No. of cores x cross section | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance max. Ω/km | |
|---|---|---|---|---|---|---|
| L34000452 | 7 x 35,0 + 6 x 4 x 1,0 | min. 40 - max. 41,9 | 2583 | 3219 | 35,0 mm²: 0,554 | 1,0 mm²: 19,5 | Send inquiry |
| L34000453 | 7 x 50,0 + 6 x 4 x 1,0 | min. 40 - max. 41,9 | 3590 | 4123 | 50,0mm²: 0,386 | 1,0 mm²: 20,0 | Send inquiry |
cross section
max. Ω/km
Other dimensions and colours are possible on request.
