GP 400 TF DR

Supply cable - TrippleFlex drum

SAB BRÖCKSKES · D-Viersen · GP 400 TF DR 3x70,0mm²+3x12,0mm²+6x4x1,0mm² 3400-0203 CE and continuous meter marking

SAB BRÖCKSKES · D-Viersen · GP 400 TF DR 3x70,0mm²+3x12,0mm²+6x4x1,0mm² 3400-0203 CE and continuous meter marking

Application

Cable for use on motorised cable reels, from a core diameter of min. 600 mm or in cable carrier (crocodile).

Outstanding features

  • low capacity insulation
  • abrasion-resistant PUR jacket
  • cold flexible
  • halogene free
  • oil resistant
  • weather resistant
  • with wear indicator

Additional information

Current carrying capacit

With reference to LV112-3 and based on an application-related current-time profile and the following operating conditions:

  • ambient temperatures up to max. 30°C
  • two phases of the same colour connected to one conductor
  • other cores (12mm² bl and 1mm²) unloaded
  • laying individually on or on surfaces

  • 260 A for max. 2 h
  • 286 A for max. 10 min.
  • 325 A for max. 5 min.
  • 364 A for max. 10 s
  • 520 A for max.  2 s

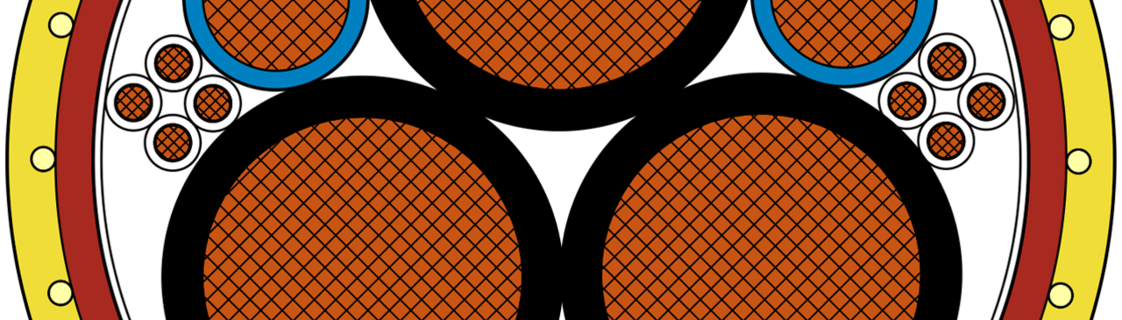

Construction

Conductor

tinned copper strands, fine wires acc. to IEC 60228 class 5

Insulation

SABIX®

Colour code:

1,0 mm²: white cores with numbers 1-24

12,0 mm²: 3 x blue

70,0 mm²: black cores with numbers 1-3

Verseilung

1,0 mm²: cores twisted as quad, wrapped with overlapping non-woven tape



all elements optimized stranded in layers, wrapped with overlapping non-woven tape

Innenmantel

PUR, red

Stützgeflecht

aramid

Außenmantel

PUR, yellow

Conductor

tinned copper strands, fine wires acc. to IEC 60228 class 5

Insulation

SABIX®

Colour code:

1,0 mm²: white cores with numbers 1-24

12,0 mm²: 3 x blue

70,0 mm²: black cores with numbers 1-3

Verseilung

1,0 mm²: cores twisted as quad, wrapped with overlapping non-woven tape



all elements optimized stranded in layers, wrapped with overlapping non-woven tape

Innenmantel

PUR, red

Stützgeflecht

aramid

Außenmantel

PUR, yellow

Technical Data

Nominal voltage

Uo/U 115/200 V

Max. permissible operating voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V AC 50 Hz

Min. bending radius

fixed laying: 4 x d

flexible application: 7,5 x d for repeated winding action

guided on pulleys: 10 x d

drum: min. 600 mm inner diameter

Min. tensile strength

4050 N (15 N/mm²)

Halogen-free

acc. to IEC 60754-1

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Fire performance

sheath material: UL 94 V2

Oil resistance

very good - acc. to EN 50363-10-2

Chemical resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Weather resistance

very good - acc. to HD 605 (VDE 0276-605)

Ozone resistance

very good - acc. to EN 50396

Salt water resistance

very good - acc. to UL 1309

MUD resistance

very good - acc. to IEC 60092-360

Hydrolysis and microbial resistance

very good - acc. to EN 50363-10-2

Mechanical resistance

characteristics of the PUR outer sheath:

- very high tensile strength

- very high tear strength

- very high abrasion resistance

- very high notch resistance

- very high shear strength

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Nominal voltage

Uo/U 115/200 V

Max. permissible operating voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V AC 50 Hz

Min. bending radius

fixed laying: 4 x d

flexible application: 7,5 x d for repeated winding action

guided on pulleys: 10 x d

drum: min. 600 mm inner diameter

Min. tensile strength

4050 N (15 N/mm²)

Halogen-free

acc. to IEC 60754-1

Temperature range

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Fire performance

sheath material: UL 94 V2

Oil resistance

very good - acc. to EN 50363-10-2

Chemical resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Weather resistance

very good - acc. to HD 605 (VDE 0276-605)

Ozone resistance

very good - acc. to EN 50396

Salt water resistance

very good - acc. to UL 1309

MUD resistance

very good - acc. to IEC 60092-360

Hydrolysis and microbial resistance

very good - acc. to EN 50363-10-2

Mechanical resistance

characteristics of the PUR outer sheath:

- very high tensile strength

- very high tear strength

- very high abrasion resistance

- very high notch resistance

- very high shear strength

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Dimensions

item no. No. of cores x
cross section
Outer-ø Copper figure Cable weight ≈ Ohmic resistance
max. Ω/km
L340002033 x 70,0 + 3 x 12,0 + 6 x 4 x 1,0ca. 39,0 - max. 40,02592311270,0 mm²: 0,277 | 12,0 mm²: 1,63 | 1,0 mm²: 19,5 Send inquiry
L340002043 x 70,0 + 3 x 16,0 + 6 x 4 x 1,0ca. 39,8 - max. 40,02707322170,0 mm²: 0,277 | 12,0 mm²: 1,21 | 1,0 mm²: 19,5 Send inquiry
item no.
No. of cores x
cross section
Outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
max. Ω/km
L34000203
3 x 70,0 + 3 x 12,0 + 6 x 4 x 1,0
ca. 39,0 - max. 40,0
2592
3112
70,0 mm²: 0,277 | 12,0 mm²: 1,63 | 1,0 mm²: 19,5
L34000204
3 x 70,0 + 3 x 16,0 + 6 x 4 x 1,0
ca. 39,8 - max. 40,0
2707
3221
70,0 mm²: 0,277 | 12,0 mm²: 1,21 | 1,0 mm²: 19,5

Other dimensions and colours are possible on request.
