SABorganic S 1000 Control C

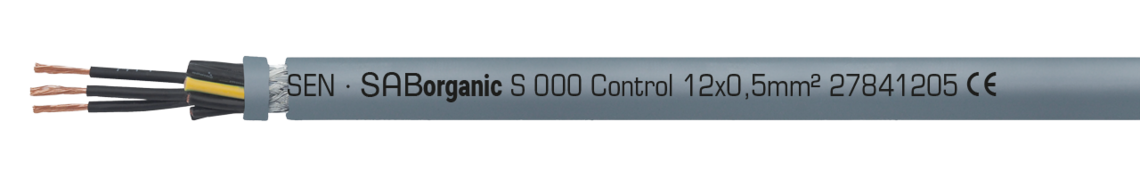

Continuously flexible SABIX®/PUR control cable with numbered cores and overall copper screen
SABorganic S 1000 Control 12x0,5mm² 27841205 CE
Application
The control cable SABorganic S 1000 Control is suitable for cable chains and equipped with an outer sheath made of bio-based PUR material that is mainly obtained of sustainable resources. This reduces the carbon footprint by a quarter compared to conventional types. The SABorganic S 1000 Control is particularly suitable for use in cable chains and moveable machine parts. The halogen-free and flame-retardant characteristics of the new sheath material reduce potential fire hazards. The SABorganic S 1000 Control is also resistant against mineral oil-based lubricants and many chemicals.
Outstanding features
- reduced carbon footprint
- low capacity
- sustainable plastic materials
- PWIS uncritical (PWIS = paint-wetting impairment substances)
- flexible at low temperatures
- halogen-free
- flame retardant and self-extinguishing
- travel > 10 m is possible
- high abrasion resistance
- small bending radius
- small outer diameter
- good EMC characteristics
- PFAS free
Additional information
- reduced carbon footprint
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | SABIX® |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Stranding | specially adjusted layering with non-woven tape over each layer |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface |
| Sheath colour | grey (RAL 7000) |
bare copper strands acc. to IEC 60228, VDE 0295, class 6
SABIX®
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
specially adjusted layering with non-woven tape over each layer
tinned copper braiding
non-woven tape
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
grey (RAL 7000)
Technical Data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Torsion angle | ± 60°/1 m |
| Min. beding radius | fixed laying: 3 x d flexible application: 7,5 x d |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C limited time of use: +125 °C (up to 2000h) |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous flexibility | very good |
| Sunlight resistance | acc. to HD 605 |
| Ozone resistance | acc. to DIN EN 50396 |
| Salt water resistance | acc. to UL 1309 |
| Absence of harmful substances: | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
core/core 2000 V
core/screen 2000 V
± 60°/1 m
fixed laying: 3 x d
flexible application: 7,5 x d
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
limited time of use: +125 °C (up to 2000h)
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to HD 605
acc. to DIN EN 50396
acc. to UL 1309
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L27841205 | 12 x 0,50 | 0,16 | 8,1 | 81,4 | 103 | Send inquiry |
| L27840707 | 7 x 0,75 | 0,16 | 7,7 | 74,1 | 98 | Send inquiry |
| L27842510 | 25 x 1,00 | 0,16 | 14,7 | 336,9 | 384 | Send inquiry |
| L27840315 | 3 x 1,50 | 0,16 | 6,5 | 60,9 | 77 | Send inquiry |
| L27840325 | 3 x 2,50 | 0,16 | 8,0 | 95,8 | 117 | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
