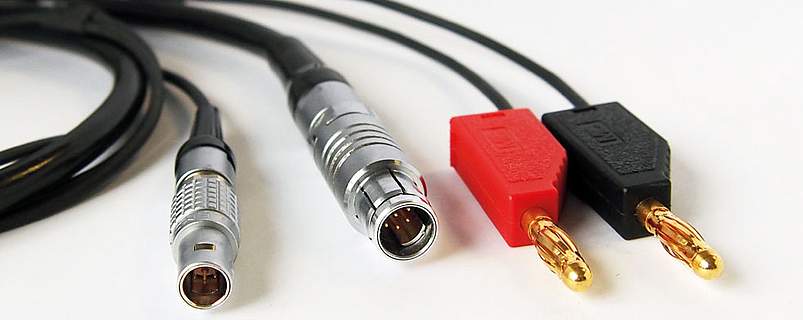

Combined cable harness

current supply and connection cable for CAN-Bus interface

Combined cable harness

Combined cable harness

Application

Another type is the combination of 2 functions in one cable harnessing product. In this way you can put the power supply and the connection cable for the CAN BUS interface in one cable harness. You can choose from many components in order to develop a cable harnessing according to your special requirements.

Additional information

Further cable types are possible on request for example:

  • sheath material up to +150°C, silicone free
  • different cable lengths
  • various sheath colours and marking
  • different dimensions, sections and numbers of cores (dependant on plug)



You can choose from different plug connectors:

  • Lemo connector
  • ODU connector
  • RJ 45 connector
  • SUB D connector
  • segment connector



Construction examples:

  • round plug connector 2 x segment plugs + 1 SUB-D connector
  • round plug connector 2 x segment plugs + 1 round plug connector
  • round plug connector 2 x segment plugs + RJ 45 plug



Cable variations for example:

  • 2 x AWG 28 + 1 x AWG 28 + 2 x 0,50 mm²

Construction

conductor

tinned copper strands

core insulation

Polymer

outer sheath

special material

sheath colour

black (RAL 9005)

conductor

tinned copper strands

core insulation

Polymer

outer sheath

special material

sheath colour

black (RAL 9005)

Technical data

temperature range

flexible application: -40°C/+90°C

fixed laying: -50°C/+90°C

short-time use: +125°C

special features

silicone free

temperature range

flexible application: -40°C/+90°C

fixed laying: -50°C/+90°C

short-time use: +125°C

special features

silicone free

Highly flexible cables according to your special requirements
