Spezial CATLine CAT 6 S
Gigabit Ethernet cable, suitable for cable tracks, specially designed for passenger boarding bridges with UL recognition, CSA approval
Application
The Special CATLine CAT 6 S was developed specifically for the special requirements of passenger boarding bridges. Thanks to its drag chain capability, high flexibility and robust construction, it guarantees reliable data transmission even with tight bending radii and long transmission lengths. With UL/CSA approval, the cable meets the highest international safety and quality standards. Data transmission complies with EN 50288-10-2 and is designed for transmission lengths of up to 95 metres in accordance with EN 50173 Class EA – ideal for the long distances often found in passenger boarding bridges. The special CATLine CAT 6 S combines mechanical resilience, long service life and reliable Gigabit Ethernet performance – a future-proof solution for the requirements of modern airports worldwide.
Outstanding features
- UL recognition, CSA approval
- suitable for cable tracks
- halogen-free
- flame retardant and self-extinguishing
- very good oil resistance
- good against aggressive chemicals
- PFAS free
Additional information
Data transmission: fulfils the requirements of EN 50288-10-2, suitable for data transmission acc. to EN 50173 Class EA up to 95 m
Also possible as harnessed cable with M12 or RJ 45 plug!

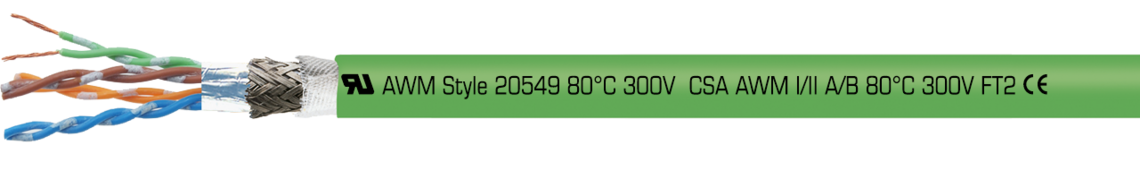

Construction
| Conductor | bare copper strands, fine wires |
|---|---|
| Insulation | PE |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | cores twisted to pairs, pairs together |
| Screen | alu foil and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
bare copper strands, fine wires
PE
white-blue/blue, white-orange/orange,
white-green/green, white-brown/brown
cores twisted to pairs, pairs together
alu foil and tinned copper braiding
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Volatge UL/CSA | 300 V |
| Testing voltage | core/core 750 V core/screen 750 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 15 x d |
| Temperature range | UL/CSA: up to +80 °C fixed laying: -40/+70 °C flexible application: -40/+70 °C
+90 °C possible on request! |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | very good - acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance (100 MHz) | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-5-2 / CAT 6 |
| Flexibility | very good |
| UL Style | 20549 |
| Application | suitable for EtherCATand EtherNET/IP-applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 90 V
300 V
core/core 750 V
core/screen 750 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 15 x d
UL/CSA: up to +80 °C
fixed laying: -40/+70 °C
flexible application: -40/+70 °C
+90 °C possible on request!
acc. to IEC 60754-1 + VDE 0482-754-1
very good - acc. to EN 50363-10-2 + VDE 0207-363-10-2
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-5-2 / CAT 6
very good
20549
suitable for EtherCATand EtherNET/IP-applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| 16779xxx | 4 x 2 x 23 AWG | 8,9 mm | 46,3 kg/km | 77 kg/km | Send inquiry |
± 10%
Other dimensions and colours are possible on request.
