SAB Kabel

CC 500 CP

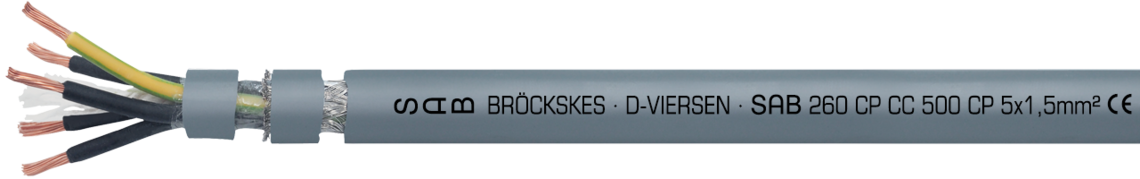

PUR control cable with numbered cores and overall copper screen

Marking for CC 500 CP 02801210: SAB BRÖCKSKES · D-VIERSEN · SAB 260 CP CC 500 CP 12 x 1,0 mm² CE

Marking for CC 500 CP 02801210: SAB BRÖCKSKES · D-VIERSEN · SAB 260 CP CC 500 CP 12 x 1,0 mm² CE

Application

CC 500 CP is a PUR control cable with numbered cores and overall copper screen. Due to the PUR outer sheath the cable is recommended for machine and industrial plant construction, material handling techniques, car manufacturing industry, handling and automation technologies, iron, steel, and chemical industries.

Outstanding features

  • good EMV characteristics
  • oil resistant
  • good chemical resistance
  • abrasion resistant

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

with rough surface

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

with rough surface

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+70°C

flexible application: +5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

028002052 x 0,50 mm²0,21 mm5,3 mm23,6 kg/km35 kg/km Send inquiry
028003053 x 0,50 mm²0,21 mm5,6 mm30,3 kg/km43 kg/km Send inquiry
028004054 x 0,50 mm²0,21 mm6 mm36,7 kg/km53 kg/km Send inquiry
028005055 x 0,50 mm²0,21 mm6,5 mm43,5 kg/km64 kg/km Send inquiry
028007057 x 0,50 mm²0,21 mm7 mm53,3 kg/km77 kg/km Send inquiry
0280120512 x 0,50 mm²0,21 mm9 mm86,5 kg/km122 kg/km Send inquiry
0280180518 x 0,50 mm²0,21 mm11,1 mm140,2 kg/km196 kg/km Send inquiry
0280250525 x 0,50 mm²0,21 mm13 mm179,8 kg/km250 kg/km Send inquiry
028002072 x 0,75 mm²0,21 mm5,9 mm30,4 kg/km44 kg/km Send inquiry
028003073 x 0,75 mm²0,21 mm6,2 mm39,2 kg/km55 kg/km Send inquiry
028004074 x 0,75 mm²0,21 mm6,7 mm48,3 kg/km67 kg/km Send inquiry
028005075 x 0,75 mm²0,21 mm7,3 mm57,6 kg/km83 kg/km Send inquiry
028007077 x 0,75 mm²0,21 mm7,9 mm74,1 kg/km102 kg/km Send inquiry
0280120712 x 0,75 mm²0,21 mm10,8 mm134,1 kg/km181 kg/km Send inquiry
0280180718 x 0,75 mm²0,21 mm12,5 mm189,1 kg/km257 kg/km Send inquiry
0280250725 x 0,75 mm²0,21 mm15,4 mm277,5 kg/km366 kg/km Send inquiry
028002102 x 1,00 mm²0,21 mm6,1 mm36,8 kg/km50 kg/km Send inquiry
028003103 x 1,00 mm²0,21 mm6,4 mm46,5 kg/km62 kg/km Send inquiry
028004104 x 1,00 mm²0,21 mm6,9 mm58 kg/km77 kg/km Send inquiry
028005105 x 1,00 mm²0,21 mm7,6 mm71,6 kg/km96 kg/km Send inquiry
028007107 x 1,00 mm²0,21 mm8,2 mm93,3 kg/km120 kg/km Send inquiry
0280121012 x 1,00 mm²0,21 mm11,2 mm169,1 kg/km213 kg/km Send inquiry
0280181018 x 1,00 mm²0,21 mm13,2 mm232,2 kg/km298 kg/km Send inquiry
0280251025 x 1,00 mm²0,21 mm16,2 mm378,1 kg/km424 kg/km Send inquiry
028002152 x 1,50 mm²0,26 mm6,7 mm48,3 kg/km62 kg/km Send inquiry
028003153 x 1,50 mm²0,26 mm7,1 mm64,7 kg/km80 kg/km Send inquiry
028004154 x 1,50 mm²0,26 mm7,7 mm81,2 kg/km100 kg/km Send inquiry
028005155 x 1,50 mm²0,26 mm8,4 mm98,1 kg/km121 kg/km Send inquiry
028007157 x 1,50 mm²0,26 mm9,1 mm129,8 kg/km157 kg/km Send inquiry
0280121512 x 1,50 mm²0,26 mm12,5 mm232,3 kg/km276 kg/km Send inquiry
0280181518 x 1,50 mm²0,26 mm15,1 mm356,4 kg/km427 kg/km Send inquiry
0280251525 x 1,50 mm²0,26 mm18,3 mm471,5 kg/km575 kg/km Send inquiry
028002252 x 2,50 mm²0,26 mm7,9 mm71,7 kg/km91 kg/km Send inquiry
028003253 x 2,50 mm²0,26 mm8,4 mm98,1 kg/km118 kg/km Send inquiry
028004254 x 2,50 mm²0,26 mm9,1 mm125 kg/km148 kg/km Send inquiry
028005255 x 2,50 mm²0,26 mm10,5 mm167,5 kg/km202 kg/km Send inquiry
028007257 x 2,50 mm²0,26 mm11,5 mm222,1 kg/km259 kg/km Send inquiry
0280122512 x 2,50 mm²0,26 mm15,6 mm385,7 kg/km446 kg/km Send inquiry
0280182518 x 2,50 mm²0,26 mm18,5 mm554,9 kg/km657 kg/km Send inquiry
0280252525 x 2,50 mm²0,26 mm22,4 mm740,3 kg/km877 kg/km Send inquiry
028003403 x 4,00 mm²0,31 mm10 mm144,4 kg/km177 kg/km Send inquiry
028004404 x 4,00 mm²0,31 mm11,1 mm207,4 kg/km235 kg/km Send inquiry
028005405 x 4,00 mm²0,31 mm12,2 mm251,3 kg/km292 kg/km Send inquiry
028004604 x 6,00 mm²0,31 mm12,8 mm290,1 kg/km331 kg/km Send inquiry
028005605 x 6,00 mm²0,31 mm14,5 mm354,5 kg/km417 kg/km Send inquiry
028004614 x 10,0 mm²0,41 mm16,8 mm494 kg/km577 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
02800205
2 x 0,50 mm²
0,21 mm
5,3 mm
23,6 kg/km
35 kg/km
02800305
3 x 0,50 mm²
0,21 mm
5,6 mm
30,3 kg/km
43 kg/km
02800405
4 x 0,50 mm²
0,21 mm
6 mm
36,7 kg/km
53 kg/km
02800505
5 x 0,50 mm²
0,21 mm
6,5 mm
43,5 kg/km
64 kg/km
02800705
7 x 0,50 mm²
0,21 mm
7 mm
53,3 kg/km
77 kg/km
02801205
12 x 0,50 mm²
0,21 mm
9 mm
86,5 kg/km
122 kg/km
02801805
18 x 0,50 mm²
0,21 mm
11,1 mm
140,2 kg/km
196 kg/km
02802505
25 x 0,50 mm²
0,21 mm
13 mm
179,8 kg/km
250 kg/km
02800207
2 x 0,75 mm²
0,21 mm
5,9 mm
30,4 kg/km
44 kg/km
02800307
3 x 0,75 mm²
0,21 mm
6,2 mm
39,2 kg/km
55 kg/km
02800407
4 x 0,75 mm²
0,21 mm
6,7 mm
48,3 kg/km
67 kg/km
02800507
5 x 0,75 mm²
0,21 mm
7,3 mm
57,6 kg/km
83 kg/km
02800707
7 x 0,75 mm²
0,21 mm
7,9 mm
74,1 kg/km
102 kg/km
02801207
12 x 0,75 mm²
0,21 mm
10,8 mm
134,1 kg/km
181 kg/km
02801807
18 x 0,75 mm²
0,21 mm
12,5 mm
189,1 kg/km
257 kg/km
02802507
25 x 0,75 mm²
0,21 mm
15,4 mm
277,5 kg/km
366 kg/km
02800210
2 x 1,00 mm²
0,21 mm
6,1 mm
36,8 kg/km
50 kg/km
02800310
3 x 1,00 mm²
0,21 mm
6,4 mm
46,5 kg/km
62 kg/km
02800410
4 x 1,00 mm²
0,21 mm
6,9 mm
58 kg/km
77 kg/km
02800510
5 x 1,00 mm²
0,21 mm
7,6 mm
71,6 kg/km
96 kg/km
02800710
7 x 1,00 mm²
0,21 mm
8,2 mm
93,3 kg/km
120 kg/km
02801210
12 x 1,00 mm²
0,21 mm
11,2 mm
169,1 kg/km
213 kg/km
02801810
18 x 1,00 mm²
0,21 mm
13,2 mm
232,2 kg/km
298 kg/km
02802510
25 x 1,00 mm²
0,21 mm
16,2 mm
378,1 kg/km
424 kg/km
02800215
2 x 1,50 mm²
0,26 mm
6,7 mm
48,3 kg/km
62 kg/km
02800315
3 x 1,50 mm²
0,26 mm
7,1 mm
64,7 kg/km
80 kg/km
02800415
4 x 1,50 mm²
0,26 mm
7,7 mm
81,2 kg/km
100 kg/km
02800515
5 x 1,50 mm²
0,26 mm
8,4 mm
98,1 kg/km
121 kg/km
02800715
7 x 1,50 mm²
0,26 mm
9,1 mm
129,8 kg/km
157 kg/km
02801215
12 x 1,50 mm²
0,26 mm
12,5 mm
232,3 kg/km
276 kg/km
02801815
18 x 1,50 mm²
0,26 mm
15,1 mm
356,4 kg/km
427 kg/km
02802515
25 x 1,50 mm²
0,26 mm
18,3 mm
471,5 kg/km
575 kg/km
02800225
2 x 2,50 mm²
0,26 mm
7,9 mm
71,7 kg/km
91 kg/km
02800325
3 x 2,50 mm²
0,26 mm
8,4 mm
98,1 kg/km
118 kg/km
02800425
4 x 2,50 mm²
0,26 mm
9,1 mm
125 kg/km
148 kg/km
02800525
5 x 2,50 mm²
0,26 mm
10,5 mm
167,5 kg/km
202 kg/km
02800725
7 x 2,50 mm²
0,26 mm
11,5 mm
222,1 kg/km
259 kg/km
02801225
12 x 2,50 mm²
0,26 mm
15,6 mm
385,7 kg/km
446 kg/km
02801825
18 x 2,50 mm²
0,26 mm
18,5 mm
554,9 kg/km
657 kg/km
02802525
25 x 2,50 mm²
0,26 mm
22,4 mm
740,3 kg/km
877 kg/km
02800340
3 x 4,00 mm²
0,31 mm
10 mm
144,4 kg/km
177 kg/km
02800440
4 x 4,00 mm²
0,31 mm
11,1 mm
207,4 kg/km
235 kg/km
02800540
5 x 4,00 mm²
0,31 mm
12,2 mm
251,3 kg/km
292 kg/km
02800460
4 x 6,00 mm²
0,31 mm
12,8 mm
290,1 kg/km
331 kg/km
02800560
5 x 6,00 mm²
0,31 mm
14,5 mm
354,5 kg/km
417 kg/km
02800461
4 x 10,0 mm²
0,41 mm
16,8 mm
494 kg/km
577 kg/km

Other dimensions and colours are possible on request.
