SAB Kabel

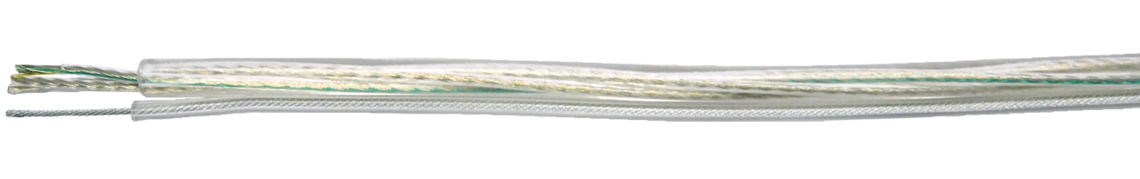

TA 835 Y (TR)

FEP/PVC lamp cable

Application

Our lamp cable is used in the lamp and light industry for the connection of halogen lamps and lighting or rather downlights. This cable is because of design reasons equipped with a transparent PVC outer sheath. The cores have a FEP insulation which is very temperature resistant and which is made to withstand the extremely high temperature of the halogen lights of up to +180°C.

Outstanding features

  • transparent
  • flexible
  • optional steel rope for separate load reception for suspended lamps

Construction

Conductor

tinned copper strands, fine wires

Insulation

FEP, transparent,

with coloured separating threads acc. to VDE 0293-308

Stranding

in layers

Sheath material

PVC

Sheath colour

transparent

Optional

steel rope connected parallel with bridge – can be separated from each other

Conductor

tinned copper strands, fine wires

Insulation

FEP, transparent,

with coloured separating threads acc. to VDE 0293-308

Stranding

in layers

Sheath material

PVC

Sheath colour

transparent

Optional

steel rope connected parallel with bridge – can be separated from each other

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+70 °C

flexible application: +5/+70 °C

Min. tensile strength of the steel rope (optional)

0,86 kN

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+70 °C

flexible application: +5/+70 °C

Min. tensile strength of the steel rope (optional)

0,86 kN

Dimensions

item no.

type

no. of cores x
cross section

outer-ø ± 5%

copper figure

cable weight ca.

38350307ohne Stahlseil/ without steel rope3 x 0,75 mm²5,2 mm21,6 kg/km46 kg/km Send inquiry
38350507ohne Stahlseil/ without steel rope5 x 0,75 mm²6,1 mm36 kg/km70 kg/km Send inquiry
38350315ohne Stahlseil/ without steel rope3 x 1,50 mm²5,9 mm43,2 kg/km71 kg/km Send inquiry
38359005mit Stahlseil/ with steel rope3 x 0,75 mm²5,1 mm21,6 kg/km53 kg/km Send inquiry
item no.
type
no. of cores x
cross section
outer-ø ± 5%
copper figure
cable weight ca.
38350307
ohne Stahlseil/ without steel rope
3 x 0,75 mm²
5,2 mm
21,6 kg/km
46 kg/km
38350507
ohne Stahlseil/ without steel rope
5 x 0,75 mm²
6,1 mm
36 kg/km
70 kg/km
38350315
ohne Stahlseil/ without steel rope
3 x 1,50 mm²
5,9 mm
43,2 kg/km
71 kg/km
38359005
mit Stahlseil/ with steel rope
3 x 0,75 mm²
5,1 mm
21,6 kg/km
53 kg/km

Other dimensions and colours are possible on request.
