Robot hybrid cable
4 x 1,0mm² + 5 x 2 x 0,25mm² + 1 x 1,0mm²
Robot hybrid cable

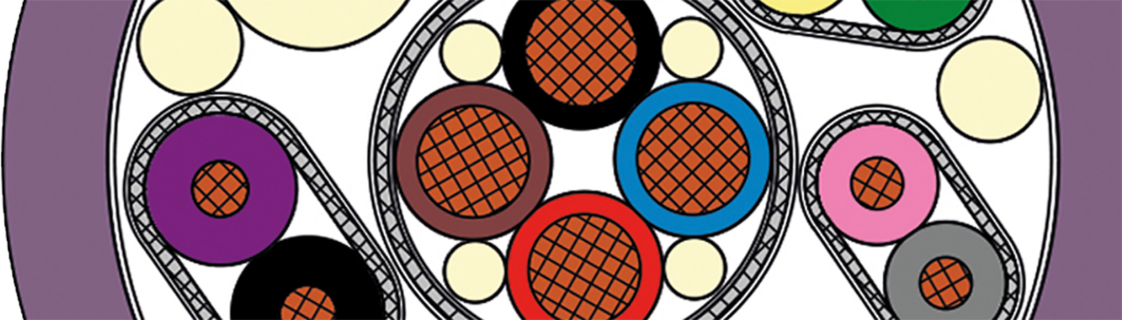

Construction
| Conductor | bare copper strands acc. to IEC 60228 |
|---|---|
| Insulation | special Polymer / TPE |
| Colour code | with reference to DIN 47100 + black, blue, red, brown, green-yellow |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Sheath colour | redlilac (RAL 4001) |
Conductor
bare copper strands acc. to IEC 60228
Insulation
special Polymer / TPE
Colour code
with reference to DIN 47100
+ black, blue, red, brown, green-yellow
Sheath material
PUR, TMPU
acc. to EN 50363-10-2 + VDE 0207-363-10-2
Sheath colour
redlilac (RAL 4001)
Technical data
| Nominal voltage | max. 350 V |
|---|---|
| Testing voltage | core/core 1700 V core/screen 1000 V |
| Temperature range | flexible application: -40/+70 °C |
| Min. bending radius | recommended: 10 x d |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Nominal voltage
max. 350 V
Testing voltage
core/core 1700 V
core/screen 1000 V
Temperature range
flexible application:
-40/+70 °C
Min. bending radius
recommended: 10 x d
Absence of harmful substances
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø | |
|---|---|---|---|
| L0726-0042 | 4 x 1,0 mm² + 5 x 2 x 0,25 mm²+ 1 x 1,0 mm² | 13,2 mm | Send inquiry |
item no.
Dimension
Outer-ø
Other dimensions and colours are possible on request.
