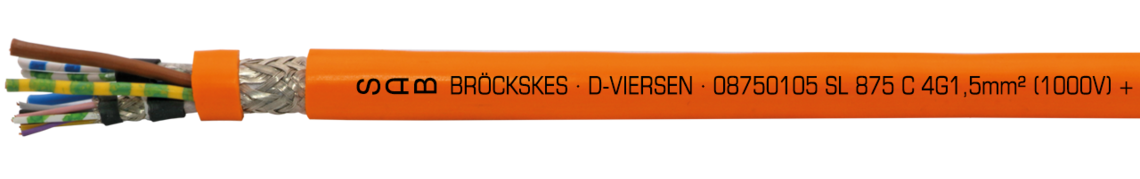

SL 875 C

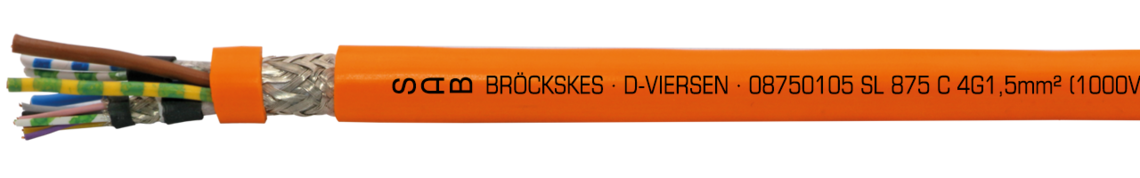

Low capacity hybrid motor connection cable with overall copper screen 0.6/1 kV

Marking for SL 875 C 08750105:
SAB BRÖCKSKES · D-VIERSEN · 08750105 SL 875 C 4 x 1,5 mm2 (1000V) + (2 x 1,0 mm2) (1000V) + (2 x AWG 22) (1000V)C · DESINA UL AWM Style 20910 80°C CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Marking for SL 875 C 08750105: SAB BRÖCKSKES · D-VIERSEN · 08750105 SL 875 C 4 x 1,5 mm2 (1000V) + (2 x 1,0 mm2) (1000V) + (2 x AWG 22) (1000V)C · DESINA UL AWM Style 20910 80°C CSA AWM I/II A/B 80°C 300V FT1 FT2 CE

Application

Hybrid motor connection cable with overall copper screen 0.6/1 kV for use as all-in-one cable solution in motor feedback systems. This hybrid cable with CSA approval is UL recognized and is suitable for cable tracks.

Outstanding features

  • used as all-in-one cable solution in motor feedback systems
  • low capacity construction
  • UL recognized, CSA approval
  • very good EMC characteristics
  • long service life
  • adhesion-free installation
  • suitable for cable tracks
  • halogen-free
  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • flexible at low temperatures
  • DESINA® colours

Additional information

Cable harnessing possible on request!

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

< 0,50 mm² with reference to VDE 0812

Insulation

special polymer

Colour code

item 087501 . .

supply cores: black cores with printing

core 1: U/L1/C/L+

core 2: V/L2

core 3: W/L3/D/L-and a green-yellow earth wire



control cores: black cores with number 5+6

feedback: white, blue



item 087505 . .

supply cores: black, blue, brown, green-yellow

control cores: white-blue, white-green

feedback: white-green, brown-green + gray, pink, yellow, violet

Stranding

control cores pairwise,

item 087501 . . feedbackcores pairwise

item 087505 . . feedbackcores 0,09 mm² pairwise pairs with cores 0,24 mm² in layers optimally stranded

Wrapping

non-woven tape resp. foil

Screen

elements with tinned copper braiding

item 087501 . . feedbackcores additional alu foil

Wrapping

non-woven tape resp. foil

Stranding

screened elements and supply cores in layers optimally stranded

Wrapping

non-woven tape

Sheath material

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

< 0,50 mm² with reference to VDE 0812

Insulation

special polymer

Colour code

item 087501 . .

supply cores: black cores with printing

core 1: U/L1/C/L+

core 2: V/L2

core 3: W/L3/D/L-and a green-yellow earth wire



control cores: black cores with number 5+6

feedback: white, blue



item 087505 . .

supply cores: black, blue, brown, green-yellow

control cores: white-blue, white-green

feedback: white-green, brown-green + gray, pink, yellow, violet

Stranding

control cores pairwise,

item 087501 . . feedbackcores pairwise

item 087505 . . feedbackcores 0,09 mm² pairwise pairs with cores 0,24 mm² in layers optimally stranded

Wrapping

non-woven tape resp. foil

Screen

elements with tinned copper braiding

item 087501 . . feedbackcores additional alu foil

Wrapping

non-woven tape resp. foil

Stranding

screened elements and supply cores in layers optimally stranded

Wrapping

non-woven tape

Sheath material

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

orange (RAL 2003)

Technical data

Nominal voltage

DIN VDE: supply cores Uo/U 0.6/1 kV

Peak operating voltage

DIN VDE: control cores + feedbackcores max. 500 V

Voltage

UL: 1000 V

CSA: ≥ 0,5 mm2 1000 V

< 0,5 mm2 300 V

Testing voltage

supply cores + core/core 4000 V



control cores

core/screen 4000 V



feedbackcores

core/core 3000 V

core/screen 3000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL FT1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: supply cores Uo/U 0.6/1 kV

Peak operating voltage

DIN VDE: control cores + feedbackcores max. 500 V

Voltage

UL: 1000 V

CSA: ≥ 0,5 mm2 1000 V

< 0,5 mm2 300 V

Testing voltage

supply cores + core/core 4000 V



control cores

core/screen 4000 V



feedbackcores

core/core 3000 V

core/screen 3000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL FT1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Description Dimension Approx. outer-ø Copper figure Cable weight ≈
08750101SICK HIPERFACE DSL®4 x 0,50 + (2 x 0,34)C + (2 x 26 AWG)C9,8 mm85,2 kg/km131 kg/km Send inquiry
08750102SICK HIPERFACE DSL®4 x 0,75 + (2 x 0,34)C + (2 x 26 AWG)C10,0 mm95,4 kg/km139 kg/km Send inquiry
08750103SICK HIPERFACE DSL®4 x 1,00 + (2 x 0,75)C + (2 x 22 AWG)C11,8 mm155,2 kg/km199 kg/km Send inquiry
08750104SICK HIPERFACE DSL®4 x 1,50 + (2 x 0,75)C + (2 x 22 AWG)C12,6 mm176,5 kg/km230 kg/km Send inquiry
08750105SICK HIPERFACE DSL®4 x 1,50 + (2 x 1,00)C + (2 x 22 AWG)C12,8 mm181,7 kg/km237 kg/km Send inquiry
08750106SICK HIPERFACE DSL®4 x 2,50 + (2 x 1,00)C + (2 x 22 AWG)C13,9 mm222,0 kg/km286 kg/km Send inquiry
08750107SICK HIPERFACE DSL®4 x 4,00 + (2 x 1,00)C + (2 x 22 AWG)C15,4 mm292,8 kg/km376 kg/km Send inquiry
08750108SICK HIPERFACE DSL®4 x 6,00 + (2 x 1,00)C + (2 x 22 AWG)C18,1 mm414,2 kg/km520 kg/km Send inquiry
08750109SICK HIPERFACE DSL®4 x 10,0 + (2 x 1,50)C + (2 x 22 AWG)C20,0 mm593,3 kg/km715 kg/km Send inquiry
08750110SICK HIPERFACE DSL®4 x 16,0 + (2 x 1,50)C + (2 x 22 AWG)C24,4 mm851,9 kg/km1055 kg/km Send inquiry
08750501HEIDENHAIN HMC6®4 x 0,75 + (2 x 0,34)C + (2 x 0,24 + 2 x 2 x 0,09)C10,8 mm122,7 kg/km163 kg/km Send inquiry
08750502HEIDENHAIN HMC6®4 x 1,50 + (2 x 0,75)C + (2 x 0,24 + 2 x 2 x 0,09)C12,1 mm171,1 kg/km219 kg/km Send inquiry
08750503HEIDENHAIN HMC6®4 x 2,50 + (2 x 1,00)C + (2 x 0,24 + 2 x 2 x 0,09)C13,7 mm224,0 kg/km282 kg/km Send inquiry
08750504HEIDENHAIN HMC6®4 x 4,00 + (2 x 1,00)C + (2 x 0,24 + 2 x 2 x 0,09)C15,4 mm288,2 kg/km359 kg/km Send inquiry
item no.
Description
Dimension
Approx. outer-ø
Copper figure
Cable weight ≈
08750101
SICK HIPERFACE DSL®
4 x 0,50 + (2 x 0,34)C + (2 x 26 AWG)C
9,8 mm
85,2 kg/km
131 kg/km
08750102
SICK HIPERFACE DSL®
4 x 0,75 + (2 x 0,34)C + (2 x 26 AWG)C
10,0 mm
95,4 kg/km
139 kg/km
08750103
SICK HIPERFACE DSL®
4 x 1,00 + (2 x 0,75)C + (2 x 22 AWG)C
11,8 mm
155,2 kg/km
199 kg/km
08750104
SICK HIPERFACE DSL®
4 x 1,50 + (2 x 0,75)C + (2 x 22 AWG)C
12,6 mm
176,5 kg/km
230 kg/km
08750105
SICK HIPERFACE DSL®
4 x 1,50 + (2 x 1,00)C + (2 x 22 AWG)C
12,8 mm
181,7 kg/km
237 kg/km
08750106
SICK HIPERFACE DSL®
4 x 2,50 + (2 x 1,00)C + (2 x 22 AWG)C
13,9 mm
222,0 kg/km
286 kg/km
08750107
SICK HIPERFACE DSL®
4 x 4,00 + (2 x 1,00)C + (2 x 22 AWG)C
15,4 mm
292,8 kg/km
376 kg/km
08750108
SICK HIPERFACE DSL®
4 x 6,00 + (2 x 1,00)C + (2 x 22 AWG)C
18,1 mm
414,2 kg/km
520 kg/km
08750109
SICK HIPERFACE DSL®
4 x 10,0 + (2 x 1,50)C + (2 x 22 AWG)C
20,0 mm
593,3 kg/km
715 kg/km
08750110
SICK HIPERFACE DSL®
4 x 16,0 + (2 x 1,50)C + (2 x 22 AWG)C
24,4 mm
851,9 kg/km
1055 kg/km
08750501
HEIDENHAIN HMC6®
4 x 0,75 + (2 x 0,34)C + (2 x 0,24 + 2 x 2 x 0,09)C
10,8 mm
122,7 kg/km
163 kg/km
08750502
HEIDENHAIN HMC6®
4 x 1,50 + (2 x 0,75)C + (2 x 0,24 + 2 x 2 x 0,09)C
12,1 mm
171,1 kg/km
219 kg/km
08750503
HEIDENHAIN HMC6®
4 x 2,50 + (2 x 1,00)C + (2 x 0,24 + 2 x 2 x 0,09)C
13,7 mm
224,0 kg/km
282 kg/km
08750504
HEIDENHAIN HMC6®
4 x 4,00 + (2 x 1,00)C + (2 x 0,24 + 2 x 2 x 0,09)C
15,4 mm
288,2 kg/km
359 kg/km

Other dimensions and colours are possible on request.
