MR 460

Control cable with numbered cores and fibre-reinforced PUR sheath

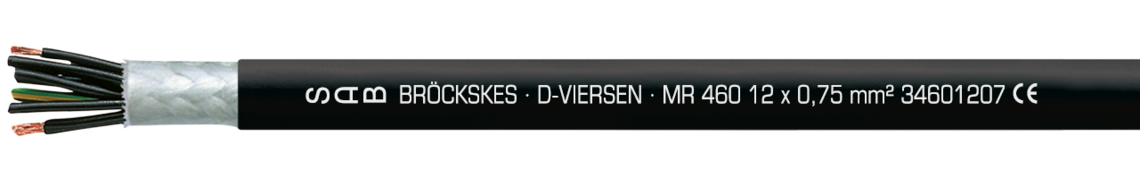

Marking for MR 460 34601207: SAB BRÖCKSKES · D-VIERSEN · MR 460 12 x 0,75 mm² 34601207 CE

Marking for MR 460 34601207: SAB BRÖCKSKES · D-VIERSEN · MR 460 12 x 0,75 mm² 34601207 CE

Application

MR 460 is a robust special control cable with numbered cores and fibre-reinforced PUR sheath. This cable with high tensile strength is particulary suitable for unprotected usage with high mechanical stress e.g. in the forest and agriculture industry.

Outstanding features

  • halogen-free
  • reinforced outer sheath for high mechanical stress
  • notch resistant, abrasion resistant
  • good flexibility also at low temperatures
  • weather resistant
  • oil resistant
  • good chemical resistance
  • sunlight resistant

Construction

Conductor

bare copper strands acc. to IEC 60228,

EN 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

Stranding

specially adjusted layering

Wrapping

non-woven tape

Supporting screen

high-tech yarn

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (similar RAL 9005)

Conductor

bare copper strands acc. to IEC 60228,

EN 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire

Stranding

specially adjusted layering

Wrapping

non-woven tape

Supporting screen

high-tech yarn

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (similar RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

UV-resistance

very good - enhanced due to black sheath colour

Mechanical characteristics

the main mechanical characteristics fulfils by the PUR outer sheath are:



-high tensile strength

-high tear strength

-high abrasion resistance

-high notch resistance

-high transverse strength

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -50/+90 °C

flexible application: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

UV-resistance

very good - enhanced due to black sheath colour

Mechanical characteristics

the main mechanical characteristics fulfils by the PUR outer sheath are:



-high tensile strength

-high tear strength

-high abrasion resistance

-high notch resistance

-high transverse strength

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
346003053 x 0,50 mm²0,16 mm6,4 mm14,4 kg/km50 kg/km Send inquiry
346004054 x 0,50 mm²0,16 mm6,7 mm19,2 kg/km57 kg/km Send inquiry
346005055 x 0,50 mm²0,16 mm7,3 mm24 kg/km66 kg/km Send inquiry
346007057 x 0,50 mm²0,16 mm8,2 mm33,6 kg/km88 kg/km Send inquiry
3460120512 x 0,50 mm²0,16 mm9,8 mm57,6 kg/km128 kg/km Send inquiry
3460180518 x 0,50 mm²0,16 mm11,2 mm86,4 kg/km175 kg/km Send inquiry
3460250525 x 0,50 mm²0,16 mm13,2 mm120 kg/km233 kg/km Send inquiry
346003073 x 0,75 mm²0,16 mm7 mm21,6 kg/km62 kg/km Send inquiry
346004074 x 0,75 mm²0,16 mm7,4 mm28,8 kg/km72 kg/km Send inquiry
346005075 x 0,75 mm²0,16 mm8 mm36 kg/km88 kg/km Send inquiry
346007077 x 0,75 mm²0,16 mm9 mm50,4 kg/km110 kg/km Send inquiry
3460120712 x 0,75 mm²0,16 mm10,9 mm86,4 kg/km158 kg/km Send inquiry
3460180718 x 0,75 mm²0,16 mm12,9 mm129,6 kg/km237 kg/km Send inquiry
3460250725 x 0,75 mm²0,16 mm15,2 mm180 kg/km323 kg/km Send inquiry
346003103 x 1,00 mm²0,16 mm7,4 mm28,8 kg/km72 kg/km Send inquiry
346004104 x 1,00 mm²0,16 mm7,9 mm38,4 kg/km89 kg/km Send inquiry
346005105 x 1,00 mm²0,16 mm8,5 mm48 kg/km104 kg/km Send inquiry
346007107 x 1,00 mm²0,16 mm9,9 mm67,2 kg/km137 kg/km Send inquiry
3460121012 x 1,00 mm²0,16 mm11,9 mm115,2 kg/km210 kg/km Send inquiry
3460181018 x 1,00 mm²0,16 mm13,6 mm172,8 kg/km283 kg/km Send inquiry
3460251025 x 1,00 mm²0,16 mm16,6 mm240 kg/km407 kg/km Send inquiry
346003153 x 1,50 mm²0,16 mm8 mm43,2 kg/km96 kg/km Send inquiry
346004154 x 1,50 mm²0,16 mm8,6 mm57,6 kg/km113 kg/km Send inquiry
346005155 x 1,50 mm²0,16 mm9,3 mm72 kg/km133 kg/km Send inquiry
346007157 x 1,50 mm²0,16 mm10,9 mm100,8 kg/km206 kg/km Send inquiry
3460121512 x 1,50 mm²0,16 mm13,1 mm172,8 kg/km277 kg/km Send inquiry
3460181518 x 1,50 mm²0,16 mm15,5 mm259,2 kg/km403 kg/km Send inquiry
3460251525 x 1,50 mm²0,16 mm18,4 mm360 kg/km541 kg/km Send inquiry
346003253 x 2,50 mm²0,16 mm9,8 mm72 kg/km140 kg/km Send inquiry
346004254 x 2,50 mm²0,16 mm10,5 mm96 kg/km170 kg/km Send inquiry
346005255 x 2,50 mm²0,16 mm11,5 mm120 kg/km205 kg/km Send inquiry
346007257 x 2,50 mm²0,16 mm13,5 mm168 kg/km274 kg/km Send inquiry
3460122512 x 2,50 mm²0,16 mm16,7 mm288 kg/km447 kg/km Send inquiry
3460182518 x 2,50 mm²0,16 mm19,4 mm432 kg/km660 kg/km Send inquiry
3460252525 x 2,50 mm²0,16 mm23,4 mm600 kg/km868 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
34600305
3 x 0,50 mm²
0,16 mm
6,4 mm
14,4 kg/km
50 kg/km
34600405
4 x 0,50 mm²
0,16 mm
6,7 mm
19,2 kg/km
57 kg/km
34600505
5 x 0,50 mm²
0,16 mm
7,3 mm
24 kg/km
66 kg/km
34600705
7 x 0,50 mm²
0,16 mm
8,2 mm
33,6 kg/km
88 kg/km
34601205
12 x 0,50 mm²
0,16 mm
9,8 mm
57,6 kg/km
128 kg/km
34601805
18 x 0,50 mm²
0,16 mm
11,2 mm
86,4 kg/km
175 kg/km
34602505
25 x 0,50 mm²
0,16 mm
13,2 mm
120 kg/km
233 kg/km
34600307
3 x 0,75 mm²
0,16 mm
7 mm
21,6 kg/km
62 kg/km
34600407
4 x 0,75 mm²
0,16 mm
7,4 mm
28,8 kg/km
72 kg/km
34600507
5 x 0,75 mm²
0,16 mm
8 mm
36 kg/km
88 kg/km
34600707
7 x 0,75 mm²
0,16 mm
9 mm
50,4 kg/km
110 kg/km
34601207
12 x 0,75 mm²
0,16 mm
10,9 mm
86,4 kg/km
158 kg/km
34601807
18 x 0,75 mm²
0,16 mm
12,9 mm
129,6 kg/km
237 kg/km
34602507
25 x 0,75 mm²
0,16 mm
15,2 mm
180 kg/km
323 kg/km
34600310
3 x 1,00 mm²
0,16 mm
7,4 mm
28,8 kg/km
72 kg/km
34600410
4 x 1,00 mm²
0,16 mm
7,9 mm
38,4 kg/km
89 kg/km
34600510
5 x 1,00 mm²
0,16 mm
8,5 mm
48 kg/km
104 kg/km
34600710
7 x 1,00 mm²
0,16 mm
9,9 mm
67,2 kg/km
137 kg/km
34601210
12 x 1,00 mm²
0,16 mm
11,9 mm
115,2 kg/km
210 kg/km
34601810
18 x 1,00 mm²
0,16 mm
13,6 mm
172,8 kg/km
283 kg/km
34602510
25 x 1,00 mm²
0,16 mm
16,6 mm
240 kg/km
407 kg/km
34600315
3 x 1,50 mm²
0,16 mm
8 mm
43,2 kg/km
96 kg/km
34600415
4 x 1,50 mm²
0,16 mm
8,6 mm
57,6 kg/km
113 kg/km
34600515
5 x 1,50 mm²
0,16 mm
9,3 mm
72 kg/km
133 kg/km
34600715
7 x 1,50 mm²
0,16 mm
10,9 mm
100,8 kg/km
206 kg/km
34601215
12 x 1,50 mm²
0,16 mm
13,1 mm
172,8 kg/km
277 kg/km
34601815
18 x 1,50 mm²
0,16 mm
15,5 mm
259,2 kg/km
403 kg/km
34602515
25 x 1,50 mm²
0,16 mm
18,4 mm
360 kg/km
541 kg/km
34600325
3 x 2,50 mm²
0,16 mm
9,8 mm
72 kg/km
140 kg/km
34600425
4 x 2,50 mm²
0,16 mm
10,5 mm
96 kg/km
170 kg/km
34600525
5 x 2,50 mm²
0,16 mm
11,5 mm
120 kg/km
205 kg/km
34600725
7 x 2,50 mm²
0,16 mm
13,5 mm
168 kg/km
274 kg/km
34601225
12 x 2,50 mm²
0,16 mm
16,7 mm
288 kg/km
447 kg/km
34601825
18 x 2,50 mm²
0,16 mm
19,4 mm
432 kg/km
660 kg/km
34602525
25 x 2,50 mm²
0,16 mm
23,4 mm
600 kg/km
868 kg/km

Other dimensions and colours are possible on request.
