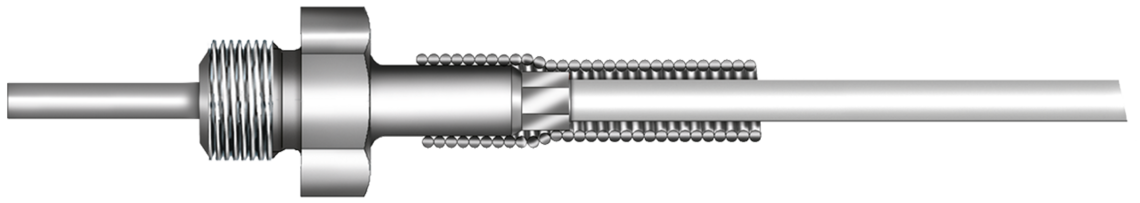

Screw-in resistance thermometer
Screw-in resistance thermometer with Pt100 sensing element, e.g., with G1/2 or M6 thread
Application
Screw-in resistance thermometers with Pt100 RTD elements are used for precise temperature measurement in industrial applications, such as engine test benches and engine compartments. They are particularly suitable for monitoring temperatures at defined measuring points, for example at oil pressure switches or components with identical threads, where a secure and vibration-resistant installation is required.
The screw-in thread ensures a reliable mechanical connection and accurate, reproducible temperature measurement, even under demanding operating conditions. Thanks to their compact design and small sheath diameters, these resistance thermometers provide fast response times and can be easily integrated into confined installation spaces.
The sensors are available with different wiring configurations (2-, 3-, or 4-wire circuit), various sheath diameters, probe and immersion lengths, and a wide selection of threads such as G 1/2 or M6. Depending on the application, versions with or without kink protection can be selected. The FEP/FEP connection cable offers reliable electrical performance and is suitable for industrial environments.
Custom-specific designs, alternative threads, connection cables, cable lengths, and connection ends are available on request, allowing optimal adaptation to the respective measuring task.
Outstanding features
- Secure and vibration-resistant installation
The screw-in thread ensures a positive, reliable mounting and stable temperature measurement, even under demanding operating conditions. - High measurement accuracy with Pt100
Available in 2-wire, 3-wire, or 4-wire configurations, allowing optimal adaptation to the required accuracy and application. - Wide range of configurations
Different sheath diameters, probe and insertion lengths, as well as thread sizes such as G 1/2 or M6, provide maximum flexibility for integration into existing systems. - Robust design for industrial applications
Ideal for use in engine test benches, engine compartments, and oil or pressure measuring points exposed to mechanical stress. - Customizable design options
Available with or without bend protection, various connection cables and terminations, and customer-specific special designs on request.
Additional information
With a 2-wire circuit only one class accuracy class B accuracy can be confirmed.
Material 1.4541: + 800°C
Please note that the temperature stability of the sensor is determined by the weakest parameters.
Different threads possible on request!
Construction
| RTD | - 1 x PT100 - 2 x PT100 |
|---|---|
| Limiting deviation | - class A - -30°C / +300°C - -100°C / +450°C - class B - -50°C / +500°C - -196°C / +600°C |
| Connection types of inner wire | - 2-wire circuit - 3-wire circuit - 4-wire circuit |
| Sheath diameter | - 1,5 mm - 3,0 mm - 4,5 mm - other diameter - acc. to customer’s request |
| Probe length | According to customer requests. Please specify in mm. |
| Immersion length | According to customer requests. Please specify in mm. |
| Thread | According to customer requests. Please specify in mm. |
| Type | - with kink protection - without kink protection |
| Connection cable | - RTD cable (FEP / FEP) - other connection cables - acc. to customer’s request see also survey of connecting cables for resistance thermometer |
| Connection cable length | - 0,5 m - 1,0 m - 1,5 m - 2,0 m - 3,0 m - 5,0 m - 10,0 m - other length - acc. to customer’s request |
| Connection ends | - bare ends - endsleeves - cable lugs M4 - tinned - other cable ends - acc. to customer’s request |
| Possible on request | with batch certificate and identification |
- 1 x PT100
- 2 x PT100
- class A - -30°C / +300°C - -100°C / +450°C
- class B - -50°C / +500°C - -196°C / +600°C
- 2-wire circuit
- 3-wire circuit
- 4-wire circuit
- 1,5 mm
- 3,0 mm
- 4,5 mm
- other diameter - acc. to customer’s request
According to customer requests. Please specify in mm.
According to customer requests. Please specify in mm.
According to customer requests. Please specify in mm.
- with kink protection
- without kink protection
- RTD cable (FEP / FEP)
- other connection cables - acc. to customer’s request
see also survey of connecting cables for resistance thermometer
- 0,5 m
- 1,0 m
- 1,5 m
- 2,0 m
- 3,0 m
- 5,0 m
- 10,0 m
- other length - acc. to customer’s request
- bare ends
- endsleeves
- cable lugs M4
- tinned
- other cable ends - acc. to customer’s request
with batch certificate and identification
Configuration examples
| item no. | RTD | Connection type | ø | Thread | Immersion length | Cable | Cable length | Connection ends | |
|---|---|---|---|---|---|---|---|---|---|
| T871-057-518 | 1 x PT100 | 4-wire circuit | 1,50 mm | M6 | 15 mm | FEP/FEP | 1000 mm | Lemo FFA.0S | Send inquiry |
| T871-052-910 | 1 x PT100 | 4-wire circuit | 3,00 mm | G1/2 | 22 mm | FEP/FEP | 1000 mm | bare ends | Send inquiry |
Other configurations are possible on request.
