Profibus-DP cables & Profibus FMS cables

PROFIBUS systems are especially made for process automation (PA). PROFIBUS is standardised acc. to IEC 61158 that means best interoperability of components from different manufactures. The modular peripheral construction (DP: decentralised periphery ) of the bus system simplifies installation and maintenance. The PROFIBUS type A is generally used in current systems, cables of PROFIBUS type B are only used for replacement purpose in already existing systems.

Fast Connect cable construction
These cables mostly have a radial symmetric construction. This enables the use of special stripping tools that make possible a quicker and easier harnessing and installation.

halogen-free Profibus-DP cable
SABIX PB 630
halogen-free, flame retardant Profibus-DP cable
SABIX PB 630 FRNC

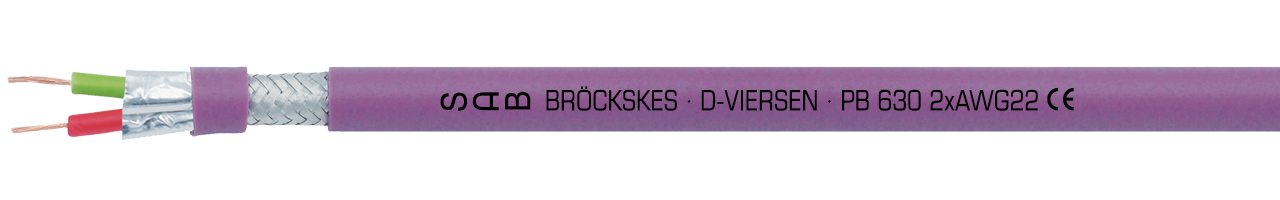

PVC Profibus-DP cable for fixed installation
PB 630
halogen-free PE Profibus-DP cable for fixed installation
PB 631
flexible PVC Profibus-DP cable for outdoor installation
PB 636

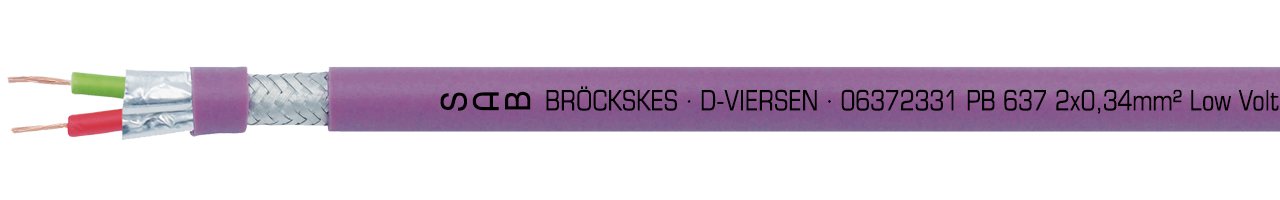

PVC Profibus-DP cable with UL recognition
PB 637
PVC Profibus-DP cable applyable in ground
PB 639
PVC Profibus-DP cable for outdoor installation
PB 635
PUR Profibus-DP cable for cable tracks
S PB 634
halogen-free, flexible PE Profibus-DP cable
PB 633
flexible PVC Profibus-DP cable
PB 632
flexible PVC Profibus-DP cable
PB 640
flexible PVC Profibus-DP cable with UL recognition
PB 640 UL
highly flexible PUR Profibus-DP cable
S PB 640
highly flexible PUR Profibus-DP cable with UL recognition
S PB 640 UL
