Silicone insulated compensating and extension cables up to +180°C
Compensating cables & thermocouple extension wires halogene free for temperatures up to 180°C for different types of thermocouoples:
| for thermocouple | material | temperature range | standard |
|---|---|---|---|
| Type T | Cu-CuNi | -25°C bis +100°C | DIN IEC 584 |
| Type J | Fe-CuNi | -25°C bis +200°C | DIN IEC 584 |
| Type L | Fe-CuNi | -0°C bis +200°C | DIN 43710 |
| Type E | NiCr-CuNi | -25°C bis +200°C | DIN IEC 584 |
| Type K | NiCr-Ni | -25°C bis +200°C | DIN IEC 584 |
| Type N | NiCrSi-NiSi | -25°C bis +200°C | DIN IEC 584 |
| Type S | Pt Rh 10-Pt | -0°C bis +200°C | DIN IEC 584 |
| Type R | Pt Rh 13-Pt | -0°C bis +200°C | DIN IEC 584 |
2 Silicone (Besilen®) insulated cores with fibre-glass braiding and steel wire armouring, conductor construction: 1,5 mm² strand |
||
2 Silicone (Besilen®) insulated cores with fibre-glass braiding and steel wire armouring, conductor construction: 1,5 mm² strand |
||

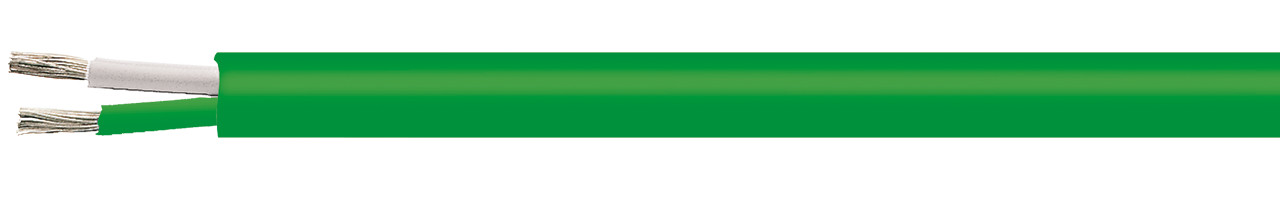

Silicone (Besilen®) insulated cable, cores parallel |
||
2 Silicone (Besilen®) insulated cores with fibre-glass braiding and steel wire armouring, conductor construction: 1,5 mm² wire |
||
4 Silicone (Besilen®) insulated cores with fibre-glass braiding and steel wire armouring, conductor construction: 1,5 mm² strand |
||
2 Silicone (Besilen®) insulated cores with fibre-glass braiding and steel wire armouring, conductor construction: 1,5 mm² strand |
||
Silicone (Besilen®) insulated cable with steel wire armouring, cores parallel |
||
Silicone (Besilen®) insulated cable, 0,22 mm² |
||
Silicone (Besilen®) insulated cable, 0,50 mm² |
||
Silicone (Besilen®) insulated cable, 0,75 mm² |
||
Silicone (Besilen®) insulated cable, 1,5 mm² |
||
Silicone (Besilen®) insulated cable, parallel |
||
Silicone (Besilen®) insulated cable, twisted |
||
Silicone (Besilen®) insulated cores with fibre-glass braiding |
||
Silicone (Besilen®) insulated cable, cores parallel |
