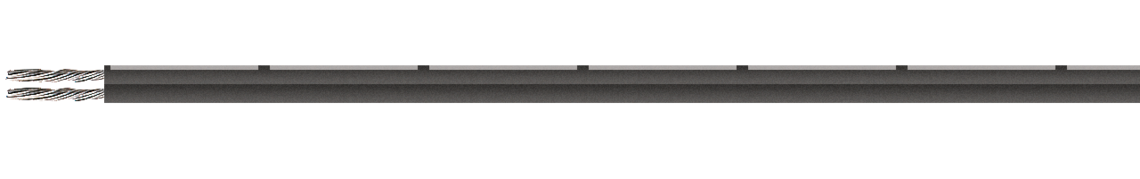

A 16 LB

Silicone (Besilen®) insulated cable, parallel

Application

The A 16 LB has an oval shape and two parallel cores. The conductor construction is strands with a conductor cross section of 1,5 mm². It guarantees an absence of harmful substances acc. to RoHS-guideline 2002/95/EG. This cable is available as compensating and extension cable.

Additional information

Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!



DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables

Construction

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Stranding

2 cores parallel

Shape

oval

Conductor construction

strand

Conductor cross section

1,5 mm²

Outer diameter

approx. 2,5 x 5,0 mm

Weight/100m

approx. 3,2 kg

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Stranding

2 cores parallel

Shape

oval

Conductor construction

strand

Conductor cross section

1,5 mm²

Outer diameter

approx. 2,5 x 5,0 mm

Weight/100m

approx. 3,2 kg

Technical data

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Insulation resistance

> 1 M Ω x km

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

7,5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Insulation resistance

> 1 M Ω x km

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
L04068958IEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
L04068952IEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
L04068995IEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
L04068999IEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
L04068954IEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
L04068953IEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
L04068997IEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
L04068911IEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
L04068992DIN 43710 / 43719Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
L04068994DIN 43710 / 43720Type KKCA4,10 mV Send inquiry
L04068996DIN 43710 / 43721Type R/SR/SCB0,65 mV Send inquiry
L04068998DIN 43710 / 43722Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
L04068901DIN 43710 / 43723Type B*BC-1000,00 mV Send inquiry
L04068902DIN 43710 / 43724Type B*BC-2000,033 mV Send inquiry
item no.
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
L04068958
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
L04068952
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
L04068995
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
L04068999
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
L04068954
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
L04068953
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
L04068997
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
L04068911
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
L04068992
DIN 43710 / 43719
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
L04068994
DIN 43710 / 43720
Type K
KCA
4,10 mV
L04068996
DIN 43710 / 43721
Type R/S
R/SCB
0,65 mV
L04068998
DIN 43710 / 43722
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
L04068901
DIN 43710 / 43723
Type B*
BC-100
0,00 mV
L04068902
DIN 43710 / 43724
Type B*
BC-200
0,033 mV
