Cable harnessing design enquiry form

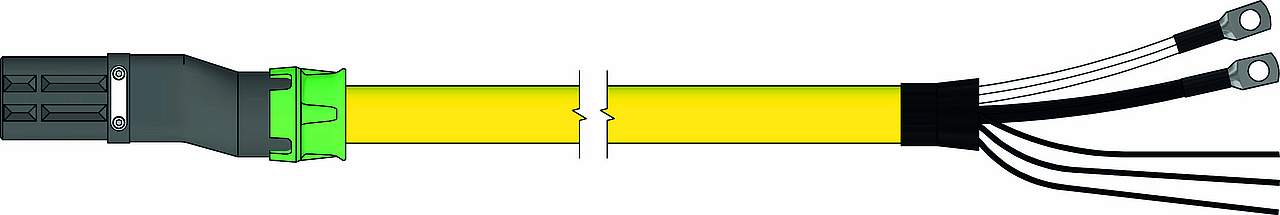

>> Individual configuration for Ground Power 28V DC supply cables for flexible applications <<

Your cable combination is not yet shown in our catalogue 400Hz and 28V DC? No problem! Using the following sample configuration, you can easily configure your individual combination of cable and the required connectors yourself. We will be happy to advise you. Just contact us directly.

Note

If you assemble your own cables, please ensure that the cables are unrolled at least 12 hours before assembly.

This serves to prevent possible stresses and increase service life.

Supply cable

☐ GP 28V DC SC	1 x (120,0 + 4 x 1,0)
☐ GP 28V DC SF	6 x 40,0 + 14 x 1,0

Side 1

☐ plug

P28

Side 2

☐ wire end sleeves	_________________________
☐ pin terminals	_________________________
☐ ring cable lugs	_________________________

Cable length

_________________________ m

Further accessories

☐ with 90% Switch
☐ with split contact
☐ thermocouple	☐ PT100	☐ PTC120	☐ PTC100
☐ with strain relief	_________________________ mm behind connector end

Note

Please send us an existing occupancy plan or let us know the desired PIN assignment.

PDF Download:

Enquiry form - Pre-assembled 400Hz cables for Ground Power 28V DC supply cables for flexible applications

Inspection certificate 3.1

An acceptance test certificate 3.1 (DIN EN 10204) is issued as standard for all assembled 400 Hz and 28 V DC cables. It documents the quality and safety tests and serves as proof of traceability. Each product is also marked separately to ensure clear identification and traceability.

Core tests:

Insulation resistance at 500 V DC / 1 s (≥ 1 MΩ)
High-voltage test at bei 2000 V DC / 60 s

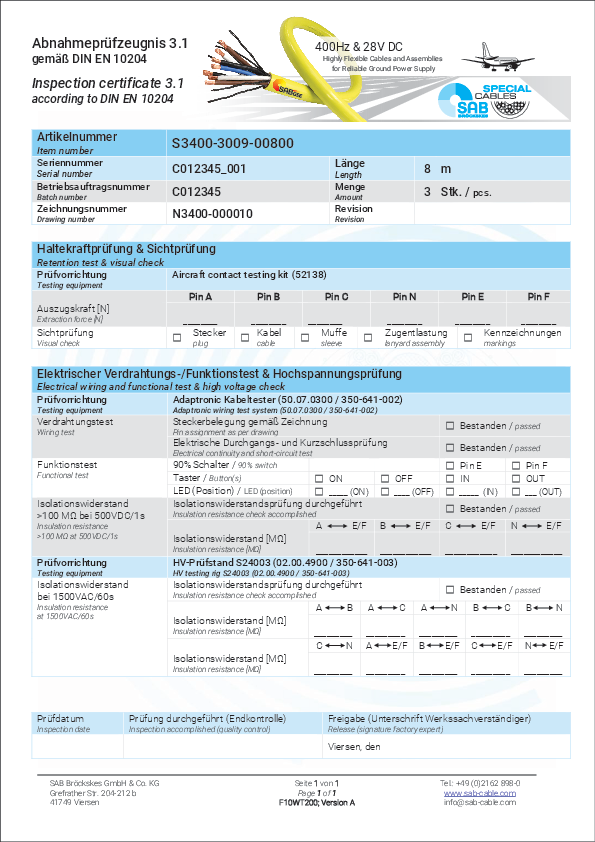

For further tests, please refer to the sample acceptance test certificate:

Cable harnessing design enquiry form

Note

Note

Highly flexible cables according to your special requirements
