GP 400 SC - PUR

Supply cable - SingleCore - PUR

Marking Example: SAB BRÖCKSKES · D-Viersen · GP 400 SC 1x(70,0mm²+4x1,0mm²) 3400-0053 CE and continuous meter marking

Marking Example: SAB BRÖCKSKES · D-Viersen · GP 400 SC 1x(70,0mm²+4x1,0mm²) 3400-0053 CE and continuous meter marking

Application

For use in flexible applications, e.g. on mobile GPUs, PIT systems and as a connecting cable between sleeve and plug in reeling applications.

Outstanding features

  • low capacity insulation
  • abrasion-resistant PUR jacket
  • control cores symmetrically arranged
  • cold flexible
  • halogene free
  • oil resistant
  • weather resistant
  • with wear indicator

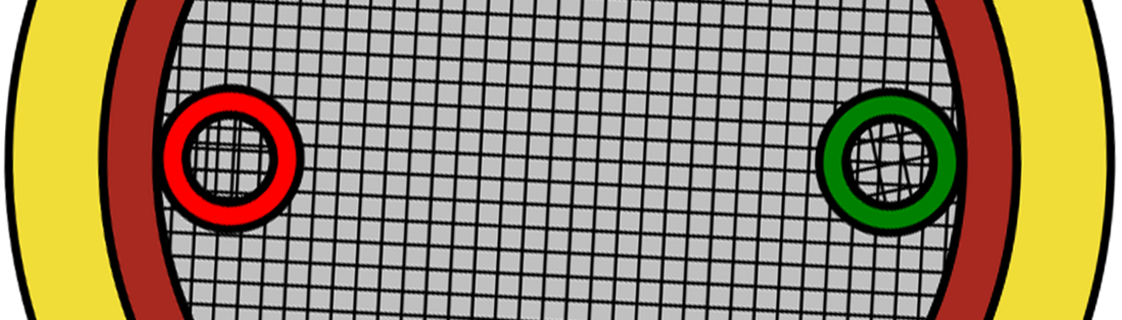

Construction

Conductor

tinned copper strands, fine wires acc. to IEC 60228 class 5

Insulation

SABIX®

Colour code

control cores: red, black, green, yellow

power supply core: red

Stranding

control cores within the power supply core

Sheat material

PUR

Sheath colour

yellow

Conductor

tinned copper strands, fine wires acc. to IEC 60228 class 5

Insulation

SABIX®

Colour code

control cores: red, black, green, yellow

power supply core: red

Stranding

control cores within the power supply core

Sheat material

PUR

Sheath colour

yellow

Technical data

Nominal voltage

Uo/U 115/200 V

Max. permissible operating voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V AC 50Hz

Min. bending radius

fixed laying: 4 x d

flexible application : 6 x d

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

limited time of use: +110 °C (7500 h)

Halogen-free

acc. to IEC 60754-1

Fire performance

sheath material: UL 94 V2

Oil resistance

very good - acc. to EN 50363-10-2

Chemical resistance

good against acids, alkalines, solvents, hydraulic liquids, etc

Weather resistance

very good - acc. to HD 605 (VDE 0276-605)

Salt water resistance

very good - acc. to UL 1309

Hydrolysis and microbial resistance

very good - acc. to EN 50360-10-2

MUD resistance

very good - acc. to IEC 60092-360

Ozone resistance

very good- acc. to EN 50396

Mechanical resistance

characteristics of the outer sheath:

- high tensile strength

- high tear strength

- high abrasion resistance

- high notch resistance

- high shear strength

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 115/200 V

Max. permissible operating voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V AC 50Hz

Min. bending radius

fixed laying: 4 x d

flexible application : 6 x d

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

limited time of use: +110 °C (7500 h)

Halogen-free

acc. to IEC 60754-1

Fire performance

sheath material: UL 94 V2

Oil resistance

very good - acc. to EN 50363-10-2

Chemical resistance

good against acids, alkalines, solvents, hydraulic liquids, etc

Weather resistance

very good - acc. to HD 605 (VDE 0276-605)

Salt water resistance

very good - acc. to UL 1309

Hydrolysis and microbial resistance

very good - acc. to EN 50360-10-2

MUD resistance

very good - acc. to IEC 60092-360

Ozone resistance

very good- acc. to EN 50396

Mechanical resistance

characteristics of the outer sheath:

- high tensile strength

- high tear strength

- high abrasion resistance

- high notch resistance

- high shear strength

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Approx. outer-ø Copper figure Cable weight ≈ Ohmic resistance
max. Ω/km
L340000521 x (50,0 + 4 x 1,0)min. 16 - max. 16,5524,060350,0 mm²: 0,393 | 1,0 mm²: 20,0 Send inquiry
L340000531 x (70,0 + 4 x 1,0)max. 17,5739,279270,0 mm²: 0,277 | 1,0 mm²: 20,0 Send inquiry
L340000591 x (70,0 + 6 x 1,0)max. 17,9729,681070,0 mm²: 0,277 | 1,0 mm²: 20,0 Send inquiry
item no.
No. of cores x
cross section
Approx. outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
max. Ω/km
L34000052
1 x (50,0 + 4 x 1,0)
min. 16 - max. 16,5
524,0
603
50,0 mm²: 0,393 | 1,0 mm²: 20,0
L34000053
1 x (70,0 + 4 x 1,0)
max. 17,5
739,2
792
70,0 mm²: 0,277 | 1,0 mm²: 20,0
L34000059
1 x (70,0 + 6 x 1,0)
max. 17,9
729,6
810
70,0 mm²: 0,277 | 1,0 mm²: 20,0

Other dimensions and colours are possible on request.
