GP 400 SF S Control
Control cable
Marking example: SAB BRÖCKSKES · D-Viersen · GP 400 SF S Control 12x2x1,5mm² CE and continuous meter marking
Application
Control cable for use in drag chains and as a festoon cable on passenger boarding bridges.
Outstanding features
- low capacity insulation
- abrasion-resistant PUR sheath
- cold flexible
- halogen-free
- oil resistant
- weather resistant
- torsion resistant

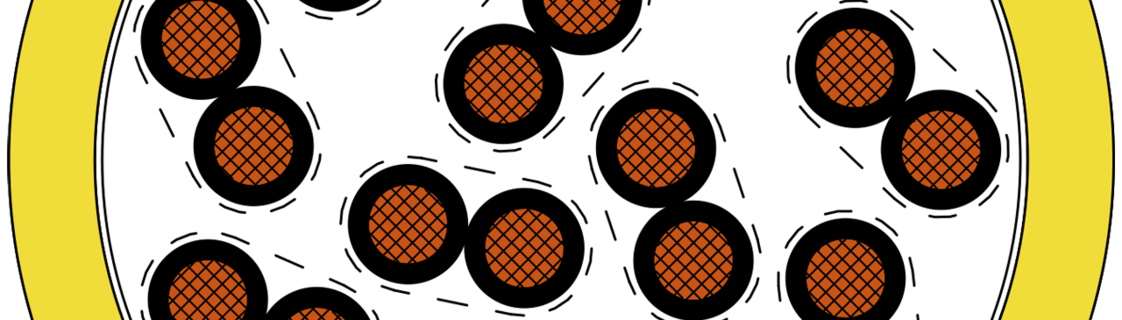

Construction
| Conductor | bare copper strands, fine wires acc. to IEC 60228 class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | black with numbers 1 - 24 |
| Stranding | cores twisted to pairs, pairs stranded in layers, wrapped with non-woven tape
all elements optimized stranded in layers, wrapped with overlapping non-woven tape |
| Outer Sheath | SABIX®, yellow |
bare copper strands, fine wires acc. to IEC 60228 class 5
SABIX®
black with numbers 1 - 24
cores twisted to pairs, pairs stranded in layers, wrapped with non-woven tape
all elements optimized stranded in layers, wrapped with overlapping non-woven tape
SABIX®, yellow
Technical Data
| Nominal voltage | Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V AC 50 Hz |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d for repeated winding action guided on pulleys: 7,5 x d continuously flexible: 12 x d |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Torsion angle | ± 60°/1 m |
| Min. tensile strength | 4035 N (15 N/mm²) |
| Fire performance | no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 und EN 50305 + VDE 0260-305 section 9.1.2. Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2. Flame retardant acc. to ISO 6722 (UN/ECE R118) |
| Halogen-free | acc. to EN 50306-1 + EN 50264-1. Development of HCl is < 0,5% acc. to IEC 60754-1. pH-value is > 4,3 acc. to IEC 60754-2. Conductivity is < 10,0 μS/mm acc. to IEC 60754-2. Fluoric content < 0,1% acc. to IEC 60684-2 |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Toxicity | acc. to EN 50305 + VDE 0260-305 |
| Free-hanging length for festoon application | 50 m |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 0,6/1 kV
core/core 4000 V AC 50 Hz
fixed laying: 4 x d
flexible application: 6 x d for repeated winding action
guided on pulleys: 7,5 x d
continuously flexible: 12 x d
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
± 60°/1 m
4035 N (15 N/mm²)
no flame propagation acc. to IEC 60332-3-24 +
VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 und EN 50305 + VDE 0260-305
section 9.1.2.
Flame retardant and self-extinguishing
acc. to IEC 60332-1-2 + VDE 0482-332-1-2.
Flame retardant acc. to ISO 6722 (UN/ECE R118)
acc. to EN 50306-1 + EN 50264-1.
Development of HCl is < 0,5% acc. to IEC 60754-1.
pH-value is > 4,3 acc. to IEC 60754-2.
Conductivity is < 10,0 μS/mm acc. to IEC 60754-2.
Fluoric content < 0,1% acc. to IEC 60684-2
acc. to IEC 61034 + VDE 0482-1034
acc. to EN 50305 + VDE 0260-305
50 m
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance max. Ω/km | |
|---|---|---|---|---|---|---|
| L34000252 | 12 x 2 x 1,5 | ca. 20,7 - max. 22,0 | 346 | 529 | 1,5 mm²: 13,3 | Send inquiry |
cross section
max. Ω/km
Other dimensions and colours are possible on request.
