GP 400 SF S Power
Supply cable - Drag chain Power
Marking example: SAB BRÖCKSKES ·D-Viersen · GP 400 SF S Power 7x35,0mm² CE and continuous meter marking
Application
Cable for fixed installation in aircraft hangars, as well as for use in drag chains and as a festoon cable on passenger boarding bridges. Also available with steel wire armour for reliable protection against rodent damage.
Outstanding features
- low capacity insulation
- cold flexible
- halogene free
- torsion resistant
- good ozone and weather resistance
- very good oil and fuel resistance
- no flame propagation
- flame retardant and self-extinguishing
- PFAS free

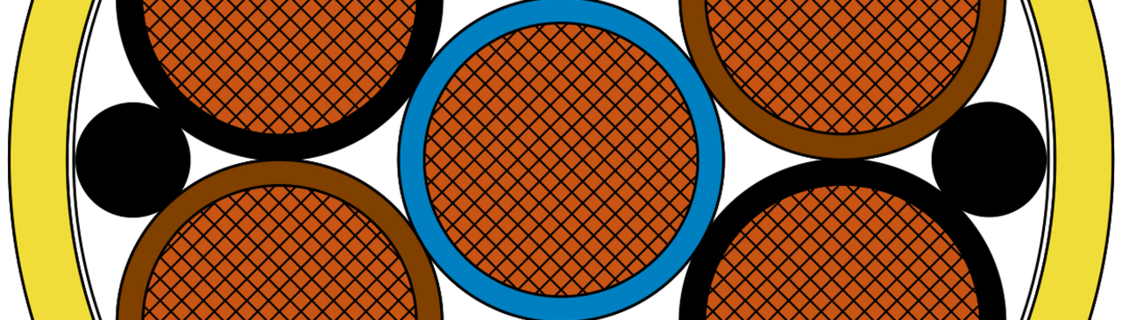

Construction
| Conductor | bare copper strands, fine wires acc. to IEC 60228 class 5 |
|---|---|
| Insulation | SABIX® |
| Colour code | coloured resp. black cores with consecutive numbers |
| Stranding | cores twisted in layers, blue core in the centre, filler in interstices, wrapped with non-woven tape. All elements optimized stranded in layers, wrapped with overlapping non-woven tape |
| Outer Sheath | SABIX®, yellow |
bare copper strands, fine wires acc. to IEC 60228 class 5
SABIX®
coloured resp. black cores with consecutive numbers
cores twisted in layers, blue core in the centre, filler in interstices, wrapped with non-woven tape.
All elements optimized stranded in layers, wrapped with overlapping non-woven tape
SABIX®, yellow
Technical Data
| Nominal voltage | 115/200 V max. Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | core/core 4000 V AC 50 Hz |
| Min. bending radius | fixed laying: 4 x d flexible application: 6 x d continuously flexible: 12 x d |
| Torsion angle | ± 60°/1 m |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Fire performance | no flame propagation acc. to IEC 60332-3. Flame retardant and self-extinguishing acc. to IEC 60332-1-2 |
| Halogen-free | acc. to IEC 60754-1, IEC 60754-2, IEC 60684-2 |
| Smoke density | acc. to IEC 61034 |
| Toxicity | acc. to EN 50305 |
| Oil and fuel resistance | very good |
| Flexibility | very good |
| Free-hanging length for festoon application | 50 m |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
115/200 V
max. Uo/U 0,6/1 kV
core/core 4000 V AC 50 Hz
fixed laying: 4 x d
flexible application: 6 x d
continuously flexible: 12 x d
± 60°/1 m
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
no flame propagation acc. to IEC 60332-3.
Flame retardant and self-extinguishing acc. to IEC 60332-1-2
acc. to IEC 60754-1, IEC 60754-2, IEC 60684-2
acc. to IEC 61034
acc. to EN 50305
very good
very good
50 m
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | Outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to EN 60228 max. Ω/km | |
|---|---|---|---|---|---|---|
| L34006230 | 7 x 35,0 mm² | approx. 34,3 mm | 2352 kg/km | 2888 kg/km | 35,0 mm²: 0,55 Ω/km | Send inquiry |
| L34000251 | 7 x 35,0 mm² + 6 x 6,0 mm² | approx. 38,7 mm - max. 40,0 mm | 2707 kg/km | 3405 kg/km | 35,0 mm²: 0,55 Ω/km | 6,0 mm²: 3,3 Ω/km | Send inquiry |
| L34000253 | 7 x 35,0 mm² + 6 x 4 x 1,0 mm² | approx. 37,7 mm - max. 41,5 mm | 2582 kg/km | 3121 kg/km | 35,0 mm²: 0,55 Ω/km | 1,0 mm²: 19,5 Ω/km | Send inquiry |
| L34000254 | 7 x 50,0 mm² + 6 x 4 x 1,0 mm² | approx. 38,1 mm - max. 41,9 mm | 3590 kg/km | 4086 kg/km | 50,0 mm²: 0,37 Ω/km | 1,0 mm²: 19,5 Ω/km | Send inquiry |
cross section
at 20°C acc. to EN 60228
max. Ω/km
Other dimensions and colours are possible on request.
