Compensation and Extension Cable JX
connection cable between hot runner control and hot runner system

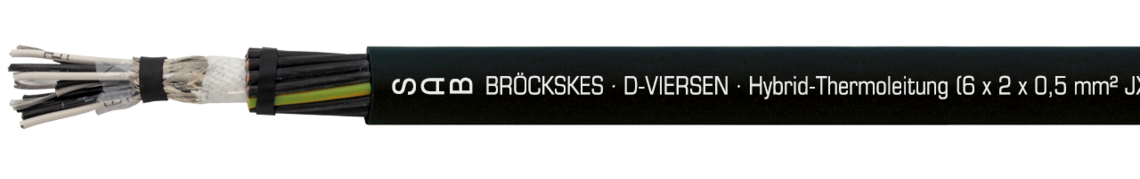

Marking for Hybrid thermo cable JX 04573652: SAB BRÖCKSKES · D-VIERSEN · Hybrid-Thermoleitung (6 x 2 x 0,5 mm2 JX) + 13 G 1,5 mm2 CE
Application
This one cable solution between hot runner control unit and hot runner system combines two cable features. Cable cores combined with a screened extension cable type JX for temperature control replace the cabling with two different cables. The SAB hybrid cable allows a quick and economic laying and thus offers qualified solutions for restricted spaces of the user. At present this cable solution is manufactured with 2 up to 8 thermocouples and up to 16 power cores. Other constructions are possible on request. SAB Bröckskes offers this highly flexible hybrid cable in random lengths as well as cable harness. Moreover, SAB produces all types of compensation and extension cables as well as thermocouples.
Outstanding features
- high flexibility
- wear resistant
- smallest bending radii
Additional information
Possible on request:
- ready-made lengths from 1 m to 15 m
- thermocouples type J
- thermo cable type KX and thermocouples type K
Construction
| Conductor | thermo strands Fe-CuNi for type J bare copper strands acc. to IEC 60228 class 5 |
|---|---|
| Insulation | PVC |
| Colour code | black and white acc. to IEC 60584 type JX black with white numbers 1 to -4, -8, -12 ,-16 and a green-yellow earth wire (control cores) |
| Wrapping | foil |
| Screen | twisted JX element braided with tinned copper wires (optical coverage approx. 80%) |
| Wrapping | banding |
| Stranding | together |
| Sheath material | PVC |
| Sheath colour | black |
thermo strands Fe-CuNi for type J
bare copper strands acc. to IEC 60228 class 5
PVC
black and white acc. to IEC 60584 type JX
black with white numbers 1 to -4, -8, -12 ,-16
and a green-yellow earth wire (control cores)
foil
twisted JX element braided
with tinned copper wires
(optical coverage approx. 80%)
banding
together
PVC
black
Technical data
| Nominal voltage | 300/500 V control cores - (1,5 mm²) |
|---|---|
| Testing voltage | 2000 V - control cores - (1,5 mm²) / 600 V (0,5 mm²) |
| Thermoelectric voltage | acc. to IEC 60584 - (0,5 mm²) |
| Min. bending radius | fixed laying: 5 x d flexible application: 12 x d |
| Temperature range | fixed laying: -25/+70°C flexible application: +5/+70°C |
| Oil resistance | |
| Fire performance | acc. to DIN EN 60332-1-2 and IEC 60332-1-2 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
300/500 V control cores - (1,5 mm²)
2000 V - control cores - (1,5 mm²) /
600 V (0,5 mm²)
acc. to IEC 60584 - (0,5 mm²)
fixed laying: 5 x d
flexible application: 12 x d
fixed laying: -25/+70°C
flexible application: +5/+70°C
acc. to DIN EN 60332-1-2 and IEC 60332-1-2
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | For thermocouple | Approx. outer-ø | Cable weight ≈ | |
|---|---|---|---|---|---|
| L04573252 | (2 x 2 x 0,5 JX) C + 5 G 1,5 mm² | Fe-CuNi | 11,4 mm | 198 kg/km | Send inquiry |
| L04573452 | (4 x 2 x 0,5 JX) C + 9 G 1,5 mm² | Fe-CuNi | 14,8 mm | 337 kg/km | Send inquiry |
| L04573652 | (6 x 2 x 0,5 JX) C + 13 G 1,5 mm² | Fe-CuNi | 15,8 mm | 440 kg/km | Send inquiry |
| L04573852 | (8 x 2 x 0,5 JX) C + 17 G 1,5 mm² | Fe-CuNi | 19,3 mm | 632 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
