CATLine CAT 6A DR

reeling CAT 6A Gigabit Ethernet cable

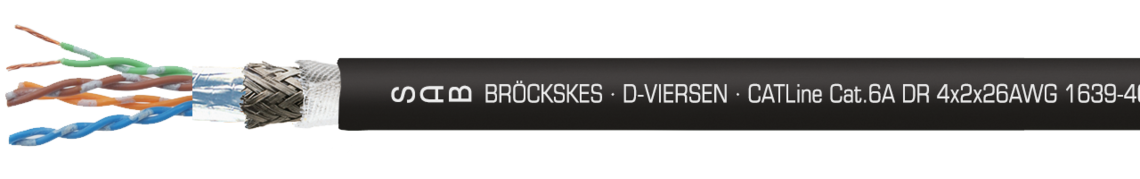

Marking for CATLine CAT 6A DR: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6A DR 4x2x26AWG 1639-4651 CE

Marking for CATLine CAT 6A DR: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6A DR 4x2x26AWG 1639-4651 CE

Application

The reelable CAT 6A Gigabit Ethernet cable is designed for various applications. In addition to the very good oil resistance, the cable is extremely weather-resistant and has a very small bending radius: For laying and assembly (fixed): 5 x d; For repeated winding (moved): 10 x d; Folded over deflection rollers (moved): 12 x d. Exemplary applications for the CAT 6A cable can be found in theatre technology, in signal transmission of mobile screen cleaning systems or in high-bay warehouse technology.

Outstanding features

  • small bending radius
  • oil resistant
  • weather resistant
  • halogen-free

Additional information

  •  also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimensions

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs together

Wrapping

non-woven tape

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR / supporting braid / PUR

Sheath colour

black (RAL 9005)

Dimensions

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs together

Wrapping

non-woven tape

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR / supporting braid / PUR

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

for laying and installation (fixed laying): 5 x d

for repeated winding action (flexible): 10 x d

guided on pulleys (flexible): 12 x d

Temperature range VDE

fixed laying: -50°C/+90°C

flexible application: -40°C/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance (100 MHz)

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 / CAT 6A

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

for laying and installation (fixed laying): 5 x d

for repeated winding action (flexible): 10 x d

guided on pulleys (flexible): 12 x d

Temperature range VDE

fixed laying: -50°C/+90°C

flexible application: -40°C/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance (100 MHz)

100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 / CAT 6A

Weather resistance

very good

Dimensions

item no.

no. of cores

cross section

max. core-ø

outer-ø ± 5%

copper figure

cable weight ca.

tensile strength
max.

16394651826 AWG1,05 mm8,7 mm32 kg/km81 kg/km200 Send inquiry
item no.
no. of cores
cross section
max. core-ø
outer-ø ± 5%
copper figure
cable weight ca.
tensile strength
max.
16394651
8
26 AWG
1,05 mm
8,7 mm
32 kg/km
81 kg/km
200

Other dimensions and colours are possible on request.

Highly flexible cables according to your special requirements
