CATLine SPE Rugged

Single-Pair-Ethernet cable for robust indoor and outdoor use

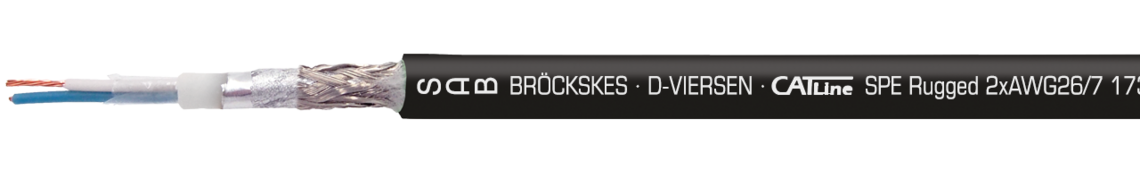

Marking for CATLine SPE Rugged 17399005: SAB BRÖCKSKES · D-VIERSEN · CATLine SPE Rugged 2xAWG26/7 1719-1620  CE

Marking for CATLine SPE Rugged 17399005: SAB BRÖCKSKES · D-VIERSEN · CATLine SPE Rugged 2xAWG26/7 1719-1620 CE

Application

Robust & weatherproof Single Pair Ethernet cable for use in harsh & industrial environments e.g. high temperatures, contamination by oil and grease, aggressive chemicals or humidity.

Outstanding features

  • flexibel bis -40 °C
  • absolutely weather resistant
  • very easy installation
  • small bending radius
  • very good oil resistance
  • good against aggressive chemicals

Construction

Conductor

bare copper strands, 7 wires

Insulation

TPFP

Colour code

white, blue

Stranding

twisted to pairs

Inner sheath

SABIX®

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR 420 with mat surface

Sheath colour

black (similar RAL 9005)

Conductor

bare copper strands, 7 wires

Insulation

TPFP

Colour code

white, blue

Stranding

twisted to pairs

Inner sheath

SABIX®

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR 420 with mat surface

Sheath colour

black (similar RAL 9005)

Technical data

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

fixed laying: -50/+90 °C / +125 °C/2500 h

flexible application: -40/+90 °C / +125 °C/2500 h

Temperature range conductor

up to +180 °C

Oil resistance

very good - TMPU acc. to EN 50363-10-2

Fuel resistance

good

Battery acid resistance

good

UV resistance

acc. to HD 605

Ozone resistance

acc. to EN 50396

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical

and transmission requirements with high frequency

with reference to IEC 61156-12.

Bandwidth 1 - 600 MHz.

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

fixed laying: -50/+90 °C / +125 °C/2500 h

flexible application: -40/+90 °C / +125 °C/2500 h

Temperature range conductor

up to +180 °C

Oil resistance
Fuel resistance

good

Battery acid resistance

good

UV resistance

acc. to HD 605

Ozone resistance

acc. to EN 50396

Characteristic impedance

100Ω ± 10Ω, fulfils the electrical

and transmission requirements with high frequency

with reference to IEC 61156-12.

Bandwidth 1 - 600 MHz.

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø ± 10% Copper figure Cable weight ≈ Outer-ø ± 5%
L171916202 x 26/7 AWG4,5 mm16,9 kg/km29 kg/km4,5 mm Send inquiry
L171912202 x 22/7 AWG5,7 mm22,7 kg/km39 kg/km5,4 mm Send inquiry
item no.
Dimension
Outer-ø ± 10%
Copper figure
Cable weight ≈
Outer-ø ± 5%
L17191620
2 x 26/7 AWG
4,5 mm
16,9 kg/km
29 kg/km
4,5 mm
L17191220
2 x 22/7 AWG
5,7 mm
22,7 kg/km
39 kg/km
5,4 mm

Other dimensions and colours are possible on request.
