CC 600 CP

PUR control cable with numbered cores and overall copper screen acc. to UL/CSA

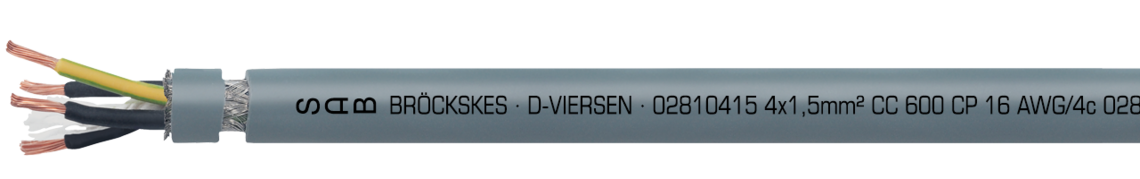

Marking for CC 600 CP 02812510: SAB BRÖCKSKES · D-VIERSEN · 02812510 25 x 1,0 mm² CC 600 CP 18 AWG/25c 02811825 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Download data sheet for CC 600 CP

Questions about our products?

Application

CC 600 CP is a PUR control cable with numbered cores and overall copper screen. Moreover, it is notch and oil resistant. Additionally, it has a good chemical resistance. Due to the PUR outer sheath the cable is recommended for machine and industrial plant construction, material handling techniques, car manufacturing industry, handling and automation technologies, iron, steel, and chemical industries.

Outstanding features

UL recognized, CSA approved
oil resistant
abrasion resistant
notch resistant
good chemical resistance

Construction

Conductor	bare copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
Stranding	in layers
Wrapping	PETP foil
Screen	tinned copper braiding
Wrapping	non-woven tape
Sheath material	PU acc. to UL 758
Sheath colour	grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PU acc. to UL 758

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage	Uo/U: 300/500 V UL/CSA: 600 V
Testing voltage	core/core 2000 V core/screen 2000 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Radiation resistance	5 x 10^7 cJ/kg
Temperature range	DIN VDE fixed laying: -40/+70°C DIN VDE flexible application: +5/+70°C UL/CSA: up to +80°C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2
Oil resistance	very good - oilrating 60°C acc. to UL 1581
Chem. resistance	good against acids, alkalines, solvents, hydraulic liquids, etc.
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U: 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - oilrating 60°C acc. to UL 1581

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids, etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 5%	Copper figure	Cable weight ≈
L02810205	2 x 0,50 mm²	0,21 mm	6,7 mm	26,1 kg/km	62 kg/km	Send inquiry
L02810305	3 x 0,50 mm²	0,21 mm	7 mm	31,3 kg/km	70 kg/km	Send inquiry
L02810405	4 x 0,50 mm²	0,21 mm	7,4 mm	38,1 kg/km	80 kg/km	Send inquiry
L02810505	5 x 0,50 mm²	0,21 mm	8 mm	45,2 kg/km	95 kg/km	Send inquiry
L02810705	7 x 0,50 mm²	0,21 mm	8,5 mm	57,5 kg/km	112 kg/km	Send inquiry
L02811205	12 x 0,50 mm²	0,21 mm	10,6 mm	90,6 kg/km	167 kg/km	Send inquiry
L02811805	18 x 0,50 mm²	0,21 mm	12,4 mm	146,4 kg/km	245 kg/km	Send inquiry
L02812505	25 x 0,50 mm²	0,21 mm	14,4 mm	194,3 kg/km	314 kg/km	Send inquiry
L02810207	2 x 0,75 mm²	0,21 mm	7,2 mm	31,9 kg/km	72 kg/km	Send inquiry
L02810307	3 x 0,75 mm²	0,21 mm	7,5 mm	39,2 kg/km	82 kg/km	Send inquiry
L02810407	4 x 0,75 mm²	0,21 mm	8 mm	48,4 kg/km	95 kg/km	Send inquiry
L02810507	5 x 0,75 mm²	0,21 mm	8,6 mm	57,7 kg/km	112 kg/km	Send inquiry
L02810707	7 x 0,75 mm²	0,21 mm	9,9 mm	76,6 kg/km	148 kg/km	Send inquiry
L02811207	12 x 0,75 mm²	0,21 mm	11,8 mm	140,2 kg/km	219 kg/km	Send inquiry
L02811807	18 x 0,75 mm²	0,21 mm	13,5 mm	189,3 kg/km	297 kg/km	Send inquiry
L02812507	25 x 0,75 mm²	0,21 mm	16,4 mm	277,8 kg/km	414 kg/km	Send inquiry
L02810210	2 x 1,00 mm²	0,21 mm	7,4 mm	36,8 kg/km	79 kg/km	Send inquiry
L02810310	3 x 1,00 mm²	0,21 mm	7,7 mm	48,3 kg/km	91 kg/km	Send inquiry
L02810410	4 x 1,00 mm²	0,21 mm	8,3 mm	59,9 kg/km	107 kg/km	Send inquiry
L02810510	5 x 1,00 mm²	0,21 mm	8,9 mm	71,6 kg/km	127 kg/km	Send inquiry
L02810710	7 x 1,00 mm²	0,21 mm	10,2 mm	96,1 kg/km	168 kg/km	Send inquiry
L02811210	12 x 1,00 mm²	0,21 mm	12,2 mm	169,2 kg/km	248 kg/km	Send inquiry
L02811810	18 x 1,00 mm²	0,21 mm	14,1 mm	238,8 kg/km	347 kg/km	Send inquiry
L02812510	25 x 1,00 mm²	0,21 mm	17 mm	349,4 kg/km	482 kg/km	Send inquiry
L02810315	3 x 1,50 mm²	0,26 mm	8,4 mm	64,8 kg/km	112 kg/km	Send inquiry
L02810415	4 x 1,50 mm²	0,26 mm	9 mm	81,3 kg/km	133 kg/km	Send inquiry
L02810515	5 x 1,50 mm²	0,26 mm	9,7 mm	98,2 kg/km	159 kg/km	Send inquiry
L02810715	7 x 1,50 mm²	0,26 mm	11,4 mm	148,4 kg/km	225 kg/km	Send inquiry
L02811215	12 x 1,50 mm²	0,26 mm	13,5 mm	232,4 kg/km	316 kg/km	Send inquiry
L02811815	18 x 1,50 mm²	0,26 mm	16,1 mm	356,7 kg/km	475 kg/km	Send inquiry
L02812515	25 x 1,50 mm²	0,26 mm	18,9 mm	483,1 kg/km	627 kg/km	Send inquiry
L02810325	3 x 2,50 mm²	0,26 mm	9,7 mm	98,2 kg/km	158 kg/km	Send inquiry
L02810425	4 x 2,50 mm²	0,26 mm	10,4 mm	125 kg/km	189 kg/km	Send inquiry
L02810525	5 x 2,50 mm²	0,26 mm	11,5 mm	167,6 kg/km	240 kg/km	Send inquiry
L02810725	7 x 2,50 mm²	0,26 mm	13,4 mm	227,6 kg/km	326 kg/km	Send inquiry
L02811225	12 x 2,50 mm²	0,26 mm	16,5 mm	385,9 kg/km	496 kg/km	Send inquiry
L02811825	18 x 2,50 mm²	0,26 mm	19,1 mm	555,4 kg/km	704 kg/km	Send inquiry
L02812525	25 x 2,50 mm²	0,26 mm	24,1 mm	740,9 kg/km	992 kg/km	Send inquiry
L02810340	3 x 4,00 mm²	0,31 mm	11,3 mm	162,7 kg/km	232 kg/km	Send inquiry
L02810440	4 x 4,00 mm²	0,31 mm	12,2 mm	207,6 kg/km	281 kg/km	Send inquiry
L02810540	5 x 4,00 mm²	0,31 mm	13,3 mm	251,5 kg/km	340 kg/km	Send inquiry
L02810360	3 x 6,00 mm²	0,31 mm	13,1 mm	227,2 kg/km	323 kg/km	Send inquiry
L02810460	4 x 6,00 mm²	0,31 mm	14,2 mm	296,2 kg/km	395 kg/km	Send inquiry
L02810560	5 x 6,00 mm²	0,31 mm	15,7 mm	385,1 kg/km	498 kg/km	Send inquiry
L02810461	4 x 10,0 mm²	0,41 mm	19 mm	494,9 kg/km	692 kg/km	Send inquiry
