PN 661

SABIX® Profinet cable type B for flexible applications with UL recognition

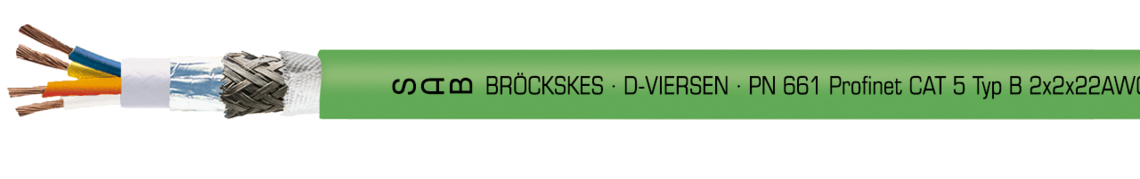

Marking for PN 661 06612202: SAB BRÖCKSKES · D-VIERSEN · PN 661 Profinet CAT 5 Typ B 2x2x22AWG UL AWM Style 21080 75°C 300V CE

Marking for PN 661 06612202: SAB BRÖCKSKES · D-VIERSEN · PN 661 Profinet CAT 5 Typ B 2x2x22AWG UL AWM Style 21080 75°C 300V CE

Application

Profinet cable CAT 5 for flexible applications with UL approval. This Profinet CAT 5 cable has an inner jacket made of thermoplastic material and a peak operating voltage of max. 350 V. Industrial Ethernet is a young and very fast developing network technology. SAB has developed this Profinet cable especially for the automation industry.

Temperature range

VDE not moved: -40/+70°C
VDE moved: -30/+70°C
UL: up to +75°C

Outstanding features

  • UL recognition
  • halogen-free

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimension

2 x 2 x 22 AWG

Conductor

bare copper strands, fine wires acc. to VDE 0812

Insulation

PE, L/MD acc. to EN 50290-2-23

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

SABIX®

Sheath colour

green (similar RAL 6018)

Dimension

2 x 2 x 22 AWG

Conductor

bare copper strands, fine wires acc. to VDE 0812

Insulation

PE, L/MD acc. to EN 50290-2-23

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

SABIX®

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

VDE: max 350 V

Voltage

UL: 300 V

Testing voltage

core/core: 2000 V

core/screen: 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

VDE fixed laying: -40/+70°C

VDE flexible application: -30/+70°C

UL: up to +75°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

UL Style

21080

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

VDE: max 350 V

Voltage

UL: 300 V

Testing voltage

core/core: 2000 V

core/screen: 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

Temperature range

VDE fixed laying: -40/+70°C

VDE flexible application: -30/+70°C

UL: up to +75°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

UL Style

21080

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø Copper figure Cable weight ≈ Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
066122022 x 2 x 22 AWG1,55 mm6,6 mm ± 5%36,2 kg/km70 kg/km55.4 Send inquiry
item no.
Dimension
max. core-ø
Outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
06612202
2 x 2 x 22 AWG
1,55 mm
6,6 mm ± 5%
36,2 kg/km
70 kg/km
55.4

Other dimensions and colours are possible on request.
