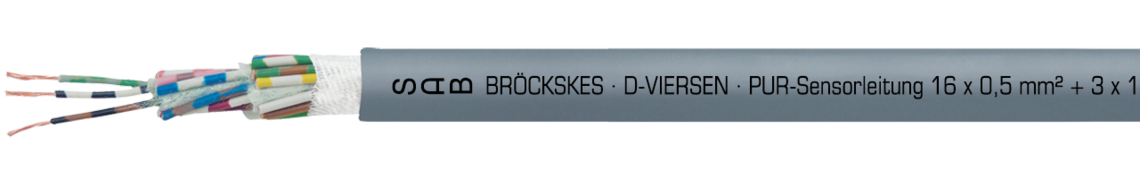

PUR sensor cable

suitable for cable tracks

PUR sensor cable

PUR sensor cable

Application

Outstanding features

  • halogen-free
  • small outer diameter
  • suitable for cable tracks
  • high abrasion resistance
  • very good flexibility

Additional information

PUR Sensor cable also possible with reticulated by irradiation outer sheath!

Item group 0355

Construction

Conductor

bare copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 6

Insulation

SABIX®

Colour code

acc. to colour code Euchner

Stranding

specially adjusted layering

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to DIN VDE 0282 part 10 + HD 22.10

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 6

Insulation

SABIX®

Colour code

acc. to colour code Euchner

Stranding

specially adjusted layering

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to DIN VDE 0282 part 10 + HD 22.10

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage Uo/U

300/500 V

Alternating test voltage

core/core 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10^6 cJ/kg

Temperature range

fixed laying: -40/+90 °C

flexible application: -20/+90 °C

Halogen-free

acc. to DIN VDE 0472 part 815 + IEC 60754-1

Oil resistance

very good - TMPU acc. to DIN VDE 0282 part 10 + HD 22.10

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage Uo/U

300/500 V

Alternating test voltage

core/core 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 12 x d

Radiation resistance

5 x 10^6 cJ/kg

Temperature range

fixed laying: -40/+90 °C

flexible application: -20/+90 °C

Halogen-free

acc. to DIN VDE 0472 part 815 + IEC 60754-1

Oil resistance

very good - TMPU acc. to DIN VDE 0282 part 10 + HD 22.10

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Dimensions

item no. no. of cores x cross section outer-ø ± 5% copper figure
0748900116 x 0,50 mm² + 3 x 1,0011,7 ± 0,3105.6 Send inquiry
074890029 x 0,50 + 3 x 1,009,5 ± 0,372 Send inquiry
item no.
no. of cores x cross section
outer-ø ± 5%
copper figure
07489001
16 x 0,50 mm² + 3 x 1,00
11,7 ± 0,3
105.6
07489002
9 x 0,50 + 3 x 1,00
9,5 ± 0,3
72

Other dimensions and colours are possible on request.
