RT 123 D
With overall copper screen, torsion angle 450° over 0.5 m acc. to UL/CSA

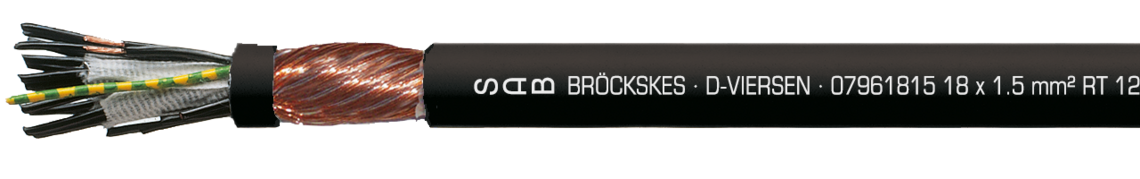

Marking for RT 123 D 07961815: SAB BRÖCKSKES · D-VIERSEN · 07961815 18 x 1.5 mm² RT 123 D 16 AWG/18c 07961618 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE
Application
RT 123 D is a PUR torsion cable with overall copper screen and a torsion angle up to +/- 450° over 0.5 m. It is recommended for use in packaging, wood working, textile, welding and cutting machine construction, car manufacturing industry, industrial robot construction, electrical drive, control, and measurement technology, construction of industrial plants and machine tooling construction.
Also suitable for applications on robots!
Outstanding features
- rugged and reliable
- torsion angle up to ± 450° over 0,5 m
- UL recognized, CSA approval
Construction
| Conductor | 0,14 mm² - 0,34 mm²: bare copper strands, extra fine wires from 0,50 mm²: acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | TPE |
| Colour code | 0,14 mm² - 0,34 mm²: acc. to colour code US 2 see page N/11 from 0,50 mm²: black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Stranding | specially adjusted layering with netting tape over each layer and one additional non-woven tape over the outer layer |
| Screen | wrapped with bare copper wires |
| Wrapping | non-woven tape |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Sheath colour | black (RAL 9005) |
0,14 mm² - 0,34 mm²: bare copper strands, extra fine wires
from 0,50 mm²: acc. to IEC 60228, VDE 0295, class 6
TPE
0,14 mm² - 0,34 mm²: acc. to colour code US 2 see page N/11
from 0,50 mm²: black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,
green-yellow earth wire from 3 cores
specially adjusted layering with netting tape over each layer and one additional non-woven tape
over the outer layer
wrapped with bare copper wires
non-woven tape
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
black (RAL 9005)
Technical data
| Peak operating voltage | 0,14 mm² - 0,34 mm²: max. 350 V |
|---|---|
| Nominal voltage | from 0,50mm²: DIN VDE: Uo/U 300/500 V |
| Voltage | 0,14 mm² - 0,34 mm²: UL/CSA: 300 V from 0,50mm²: UL/CSA: 600 V |
| Testing voltage | 0,14 mm² - 0,34 mm²: core/core 1500V core/screen 1200 V from 0,50mm²: core/core 3000V core/screen 2000 V |
| Torsion angle | up to +/-450°/0,5 m |
| Min. bending radius | continuously flexible: 12 x d from 34 cores: 20 x d |
| Radiation resistance | 5 x 10^7 cJ/kg |
| Temperature range | UL fixed laying: up to +80°C DIN VDE fixed laying: -50/+90 °C DIN VDE flexible application: -40/+90 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | cc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2 |
| Oil resistance | acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
0,14 mm² - 0,34 mm²: max. 350 V
from 0,50mm²: DIN VDE: Uo/U 300/500 V
0,14 mm² - 0,34 mm²: UL/CSA: 300 V
from 0,50mm²: UL/CSA: 600 V
0,14 mm² - 0,34 mm²: core/core 1500V
core/screen 1200 V
from 0,50mm²: core/core 3000V
core/screen 2000 V
up to +/-450°/0,5 m
continuously flexible: 12 x d
from 34 cores: 20 x d
5 x 10^7 cJ/kg
UL fixed laying: up to +80°C
DIN VDE fixed laying: -50/+90 °C
DIN VDE flexible application: -40/+90 °C
acc. to IEC 60754-1 + VDE 0482-754-1
cc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2
acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L07961201 | 12 x 0,14 mm² | 0,11 mm | 6,9 mm | 30,2 kg/km | 62 kg/km | Send inquiry |
| L07962502 | 25 x 0,25 mm² | 0,11 mm | 10 mm | 90,9 kg/km | 156 kg/km | Send inquiry |
| L07960505 | 5 x 0,50 mm² | 0,16 mm | 8,2 mm | 40,5 kg/km | 94 kg/km | Send inquiry |
| L07960710 | 7 x 1,00 mm² | 0,16 mm | 10,7 mm | 108,5 kg/km | 178 kg/km | Send inquiry |
| L07961215 | 12 x 1,50 mm² | 0,16 mm | 14,9 mm | 214,7 kg/km | 338 kg/km | Send inquiry |
| L07961815 | 18 x 1,50 mm² | 0,16 mm | 17,1 mm | 326 kg/km | 496 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
