S PN 668

PUR Profinet cable type C, continuously flexible, suitable for cable tracks

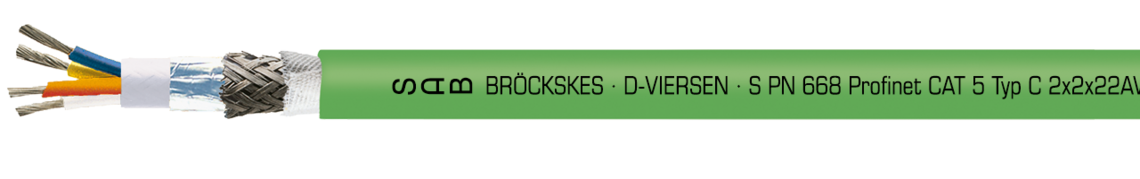

Marking for S PN 668 Type C 06682202: SAB BRÖCKSKES · D-VIERSEN · S PN 668 Profinet CAT 5 Typ C 2x2x22AWG CE

Marking for S PN 668 Type C 06682202: SAB BRÖCKSKES · D-VIERSEN · S PN 668 Profinet CAT 5 Typ C 2x2x22AWG CE

Application

Profinet cable for highly flexible use in cable tracks. This Profinet cable type C (2 x 2 x 22 AWG) with tinned copper strands (fine strands) is particularly suitable for highly flexible use, e.g. in cable tracks, due to its cable construction. The minimum bending radius for permanently flexible use is 15 x d, freely movable 10 d, fixed 5 x d.

Outstanding features

  • suitable for cable tracks
  • halogen-free
  • very good oil resistance

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands,

extra fine wires

Insulation

PE

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

green (similar RAL 6018)

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands,

extra fine wires

Insulation

PE

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 15 x d

Temperature range

VDE fixed laying: -40/+70°C

VDE flexible application: -30/+70°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

continuously flexible: 15 x d

Temperature range

VDE fixed laying: -40/+70°C

VDE flexible application: -30/+70°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø ± 5% Copper figure Cable weight ≈ Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
L066822022 x 2 x 22 AWG1,55 mm6,4 mm36,7 kg/km58 kg/km58 Send inquiry
item no.
Dimension
max. core-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
L06682202
2 x 2 x 22 AWG
1,55 mm
6,4 mm
36,7 kg/km
58 kg/km
58

Other dimensions and colours are possible on request.
