S PN 669

PUR Profinet cable type C, continuously flexible, suitable for cable tracks with UL recognition

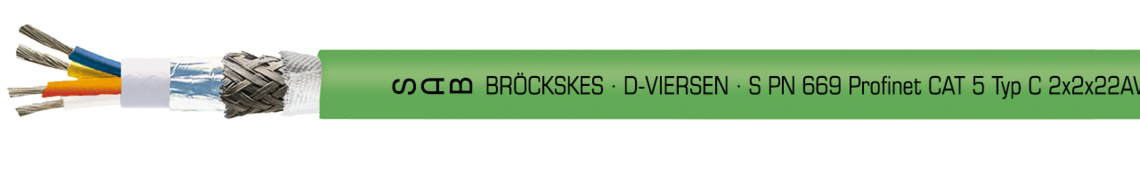

Marking for S PN 669 06692202: SAB BRÖCKSKES · D-VIERSEN · S PN 669 Profinet CAT 5 Typ C 2x2x22AWG UL AWM Style 21198 80°C 300V CE

Marking for S PN 669 06692202: SAB BRÖCKSKES · D-VIERSEN · S PN 669 Profinet CAT 5 Typ C 2x2x22AWG UL AWM Style 21198 80°C 300V CE

Application

Flexible Profinet cable type C with UL approval for permanently flexible use in cable tracks. The minimum bending radius of this cable is 5 x d for fixed installation, 10 x d for free movement and 15 x d for continuous flexible use.

Outstanding features

  • UL recognition
  • suitable for cable tracks
  • halogen-free
  • very good oil resistance

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands,

extra fine wires

Insulation

PE

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

green (similar RAL 6018)

Dimension

2 x 2 x 22 AWG

Conductor

tinned copper strands,

extra fine wires

Insulation

PE

Colour code

blue, yellow, white, orange

Stranding

in layers

Wrapping

PETP-foil

Inner sheath

thermoplastic material

Screen

alu foil and tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

VDE: max. 350 V

Voltage

UL: 300 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Temperature range

VDE fixed laying: -30/+70°C

VDE flexible application: -20/+70°C

UL: up to +80°C

Min. bending radius

fixed laying: 5 x d

flexibel application: 10 x d

continuously flexible: 15 x d

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

UL Style

21198

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

VDE: max. 350 V

Voltage

UL: 300 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Temperature range

VDE fixed laying: -30/+70°C

VDE flexible application: -20/+70°C

UL: up to +80°C

Min. bending radius

fixed laying: 5 x d

flexibel application: 10 x d

continuously flexible: 15 x d

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

UL Style

21198

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø ± 5% Copper figure Cable weight ≈ Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
066922022 x 2 x 22 AWG1,55 mm6,9 mm36,7 kg/km69 kg/km58 Send inquiry
item no.
Dimension
max. core-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
06692202
2 x 2 x 22 AWG
1,55 mm
6,9 mm
36,7 kg/km
69 kg/km
58

Other dimensions and colours are possible on request.
