SABdynamic 910 Control C
Continuously flexible SABIX®/PUR control cable, suitable for robots, robust, oil resistant and flame retardant with numbered cores and overall copper screen

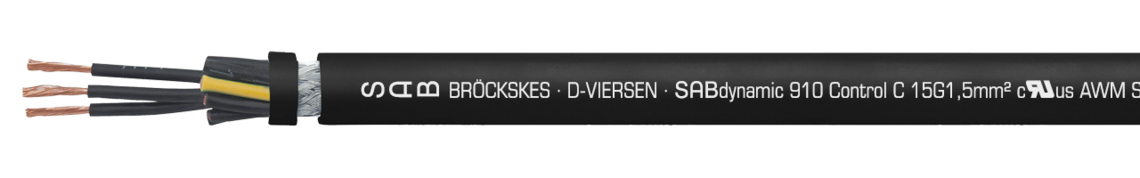

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABdynamic 910 Control 15G1,5mm² cULus AWM Style 21223 AWM I/II A/B 80°C 600V FT1 FT2 0911-1515 CE
Application
Outstanding features
- cULus recognized
- PWIS uncritical (PWIS = paint-wetting impairment substances)
- low capacity
- suitable for robots
- extremely large temperature range
- halogen-free
- high abrasion resistance
- suitable for long travel
- small bending radius
- small outer diameter
- good EMC characteristics
- PFAS free
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, Klasse 6 |
|---|---|
| Insulation | SABIX® |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Stranding | specially adjusted layering with non-woven tape over each layer, from 15 cores twisted to bundles |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR with mat surface |
| Sheath colour | black (RAL 9005) |
bare copper strands acc. to IEC 60228, VDE 0295, Klasse 6
SABIX®
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
specially adjusted layering with non-woven tape over each layer, from 15 cores twisted to bundles
tinned copper braiding
non-woven tape
PUR with mat surface
black (RAL 9005)
Technical Data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Voltage cULus | 600 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Torsion cycles | up to ± 180°/m > 10 million up to ± 360°/m > 5 million |
| Min. bending radius | fixed laying: 3 x d flexible application: ≤ 5 m 7,5 x d > 5 m 10 x d bending cycles: > 10 million |
| Temperature range | DIN VDE fixed laying: -50/+90 °C flexible application: -40/+90 °C
cULus: up to +80 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous Flexibility | very good |
| Sunlight resistance | acc. to HD 605 |
| Ozone resistance | acc. to DIN EN 50396 |
| Salt water resistance | acc. to UL 1309 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
600 V
core/core 2000 V
core/screen 2000 V
up to ± 180°/m > 10 million
up to ± 360°/m > 5 million
fixed laying: 3 x d
flexible application: ≤ 5 m 7,5 x d
> 5 m 10 x d
bending cycles: > 10 million
DIN VDE
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
cULus: up to +80 °C
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, cULus FT1, FT2
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to HD 605
acc. to DIN EN 50396
acc. to UL 1309
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L09110707 | 7 x 0,75 mm² | 0,16 mm | 7,7 mm | 68,2 kg/km | 96 kg/km | Send inquiry |
| L09110215 | 2 x 1,50 mm² | 0,16 mm | 6,2 mm | 42,3 kg/km | 61 kg/km | Send inquiry |
| L09110315 | 3 x 1,50 mm² | 0,16 mm | 6,5 mm | 57,6 kg/km | 76 kg/km | Send inquiry |
| L09111515 | 15 x 1,50 mm² | 0,16 mm | 16,3 mm | 296,2 kg/km | 403 kg/km | Send inquiry |
cross section
wire-ø
± 10%
Other dimensions and colours are possible on request.
