SABorganic S 1000 Data C TP

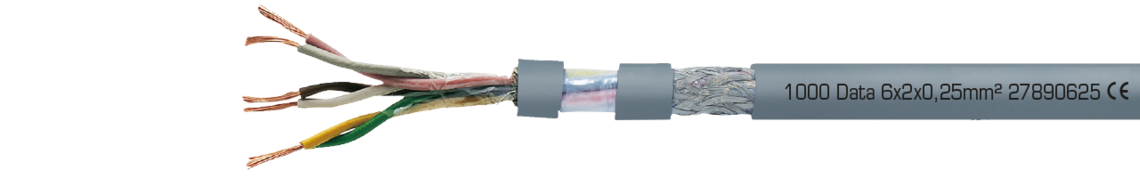

Continuously flexible paired SABIX®/PUR data cable with coloured cores and overall copper screen
SABorganic S 1000 Data 6x2x0,25mm² 27890625 CE
Application
The data cable SABorganic S 1000 Data is suitable for cable chains and equipped with an outer sheath made of bio-based PUR material that is mainly obtained of sustainable resources. This reduces the carbon footprint by a quarter compared to conventional types. The SABorganic S 1000 Data is particularly suitable for use in cable chains and moveable machine parts. The halogen-free and flame-retardant characteristics of the new sheath material reduce potential fire hazards. The SABorganic S 1000 Data is also resistant against mineral oil-based lubricants and many chemicals.
Outstanding features
- reduced carbon footprint
- low capacity
- sustainable plastic materials
- PWIS uncritical (PWIS = paint-wetting impairment substances)
- flexible at low temperatures
- halogen-free
- flame retardant and self-extinguishing
- travel > 10 m is possible
- high abrasion resistance
- small bending radius
- small outer diameter
- good EMC characteristics
- good transmission rates and crosstalk attenuation
- PFAS free
Additional information
- reduced carbon footprint
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Insulation | SABIX® |
| Colour code | with reference to DIN 47100 |
| Stranding | cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR, TMPUacc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface |
| Sheath colour | grey (RAL 7000) |
bare copper strands, extra fine wires
SABIX®
with reference to DIN 47100
cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer
tinned copper braiding
non-woven tape
PUR, TMPUacc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
grey (RAL 7000)
Technical Data
| Peak operating voltage | max. 350 V |
|---|---|
| Testing voltage | core/core 1500 V core/screen 1200 V |
| Torsion angle | ± 60°/1 m |
| Min. bending radius | fixed laying: 3 x d flexible application: 7,5 x d |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90 °C limited time of use: +125 °C (up to 2000h) |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chemical resistance | good against acids, alkalines, solvents, hydraulic liquids etc. |
| Continuous flexibility | very good |
| Sunlight resistance | acc. to HD 605 |
| Ozone resistance | acc. to DIN EN 50396 |
| Salt water resistance | acc. to UL 1309 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
core/core 1500 V
core/screen 1200 V
± 60°/1 m
fixed laying: 3 x d
flexible application: 7,5 x d
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
limited time of use: +125 °C (up to 2000h)
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc.
very good
acc. to HD 605
acc. to DIN EN 50396
acc. to UL 1309
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of pairs x cross section |
Largest single wire-ø |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L27890314 | 3 x 2 x 0,14 mm² | 0,11 mm | 4,8 mm | 21,8 kg/km | 30 kg/km | Send inquiry |
| L27891014 | 10 x 2 x 0,14 mm² | 0,11 mm | 7,6 mm | 49,7 kg/km | 69 kg/km | Send inquiry |
| L27890225 | 2 x 2 x 0,25 mm² | 0,11 mm | 4,8 mm | 23,6 kg/km | 33 kg/km | Send inquiry |
| L27890525 | 5 x 2 x 0,25 mm² | 0,11 mm | 6,8 mm | 43,7 kg/km | 60 kg/km | Send inquiry |
| L27890625 | 6 x 2 x 0,25 mm² | 0,11 mm | 7,0 mm | 50,1 kg/km | 68 kg/km | Send inquiry |
| L27890434 | 4 x 2 x 0,34 mm² | 0,11 mm | 6,8 mm | 46,1 kg/km | 58 kg/km | Send inquiry |
| L27890250 | 2 x 2 x 0,50 mm² | 0,16 mm | 6,0 mm | 36,9 kg/km | 50 kg/km | Send inquiry |
| L27890350 | 3 x 2 x 0,50 mm² | 0,16 mm | 6,8 mm | 48,5 kg/km | 65 kg/km | Send inquiry |
cross section
wire-ø
± 10%
Other dimensions and colours are possible on request.
