SAB Kabel

TR 600 C HD

Type TC-ER, Heavy Duty Tray Cable with overall copper screen

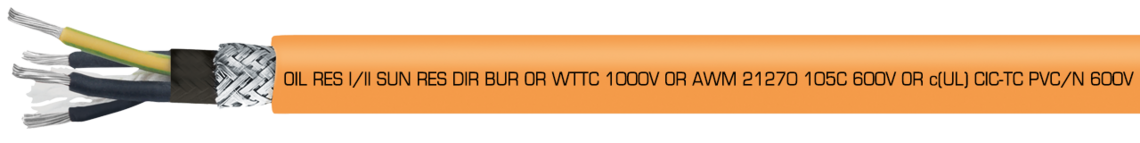

Marking for TR 600 C HD 32401604:
SAB NORTH AMERICA TR 600 C HD 16 AWG 4c P/N 32401604 (UL) TC-ER 90C DRY 75C WET 600V OIL RES I/II SUN RES DIR BUR OR WTTC
1000V OR AWM 21270 105C 600V OR c(UL) CIC-TC PVC/N 600V FT4 CSA AWM I/II A/B 90C 600V FT4 RoHS CE

Marking for TR 600 C HD 32401604: SAB NORTH AMERICA TR 600 C HD 16 AWG 4c P/N 32401604 (UL) TC-ER 90C DRY 75C WET 600V OIL RES I/II SUN RES DIR BUR OR WTTC 1000V OR AWM 21270 105C 600V OR c(UL) CIC-TC PVC/N 600V FT4 CSA AWM I/II A/B 90C 600V FT4 RoHS CE

Application

The screened heavy duty tray cable TR 600 C HD Type WTTC is a control and instrumentation cable with overall copper screen. In hazardous (classified) areas it is class 1, Division 2 per NEC Article 501.4 (B), UL Type TC is in accordance with UL standard 1277 and NEC Article 336.

Outstanding features

  • Heavy Duty Tray Cable and Control and Instrumentation Cable
  • UL-AWM recognition for +105°C
  • Extreme oil resistant
  • WTTC approval
  • WTTC: UL Subject 2277
  • TC: UL Standard 1277
  • (UL)/(cUL) listed
  • CSA approval
  • NFPA 79 2012
  • c(UL) CIC-TC FT4

Additional information

Possible on request!

  • with grey or black outer sheath
  • as well as blue or red cores

Construction

Conductor

bare copper strands class K

Insulation

special formulated PVC/Nylon

Colour code

black cores with consecutive white numbers* and green-yellow earth wire

*alpha-numeric alternate and inverted, i.e. 1-ONE

Stranding

in layers

Inner sheath

PVC, color black

Screen

tinned copper braiding

Sheath material

TPE

Sheath colour

orange (RAL 2003)

also available in grey or black

Conductor

bare copper strands class K

Insulation

special formulated PVC/Nylon

Colour code

black cores with consecutive white numbers* and green-yellow earth wire

*alpha-numeric alternate and inverted, i.e. 1-ONE

Stranding

in layers

Inner sheath

PVC, color black

Screen

tinned copper braiding

Sheath material

TPE

Sheath colour

orange (RAL 2003)

also available in grey or black

Technical data

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -40°C

(UL)/c(UL)/CSA-AWM: up to +90 °C

Cold Bend Test

-40°C

Burning characteristics

(UL) FT4 + c(UL) FT1, FT2, FT4

Oil resistance I & II

yes

Exposed Runs

yes

Absence of harmful substances

acc. to RoHS directive of the European Union

Voltage

UL-AWM/(UL)/c(UL): 600 V

(UL) WTTC: 1000 V

Testing voltage

2000 V

Min. bending radius

7,5 x d

Temperature

UL-AWM: up to +105°C

UL-AWM fixed laying: -40°C

(UL)/c(UL)/CSA-AWM: up to +90 °C

Cold Bend Test

-40°C

Burning characteristics

(UL) FT4 + c(UL) FT1, FT2, FT4

Oil resistance I & II

yes

Exposed Runs

yes

Dimensions

item no.

AWG

outer-ø ± 5%

cable weight ca.

3240180318/3c AWG9,7 mm147 kg/km Send inquiry
3240180418/4c AWG9,7 mm131 kg/km Send inquiry
3240180518/5c AWG10,9 mm187 kg/km Send inquiry
3240180718/7c AWG11,6 mm233 kg/km Send inquiry
3240181218/12c AWG15,1 mm372 kg/km Send inquiry
3240181818/18c AWG17,6 mm524 kg/km Send inquiry
3240182518/25c AWG19,7 mm742 kg/km Send inquiry
3240160316/3c AWG10,2 mm166 kg/km Send inquiry
3240160416/4c AWG10,4 mm159 kg/km Send inquiry
3240160516/5c AWG11,6 mm229 kg/km Send inquiry
3240160716/7c AWG12,3 mm271 kg/km Send inquiry
3240161216/12c AWG16,1 mm488 kg/km Send inquiry
3240161816/18c AWG18,9 mm632 kg/km Send inquiry
3240162516/25c AWG22,2 mm846 kg/km Send inquiry
3240140314/3c AWG11,3 mm205 kg/km Send inquiry
3240140414/4c AWG12,1 mm221 kg/km Send inquiry
3240140714/7c AWG14,7 mm382 kg/km Send inquiry
3240120412/4c AWG13,2 mm323 kg/km Send inquiry
3240120512/5c AWG15 mm404 kg/km Send inquiry
3240100410/4c AWG17,6 mm544 kg/km Send inquiry
324008048/4c AWG22,7 mm868 kg/km Send inquiry
324006046/4c AWG25,7 mm1180 kg/km Send inquiry
324004044/4c AWG30,3 mm1722 kg/km Send inquiry
324002042/4c AWG34,5 mm2339 kg/km Send inquiry
324001041/4c AWG39 mm4189 kg/km Send inquiry
item no.
AWG
outer-ø ± 5%
cable weight ca.
32401803
18/3c AWG
9,7 mm
147 kg/km
32401804
18/4c AWG
9,7 mm
131 kg/km
32401805
18/5c AWG
10,9 mm
187 kg/km
32401807
18/7c AWG
11,6 mm
233 kg/km
32401812
18/12c AWG
15,1 mm
372 kg/km
32401818
18/18c AWG
17,6 mm
524 kg/km
32401825
18/25c AWG
19,7 mm
742 kg/km
32401603
16/3c AWG
10,2 mm
166 kg/km
32401604
16/4c AWG
10,4 mm
159 kg/km
32401605
16/5c AWG
11,6 mm
229 kg/km
32401607
16/7c AWG
12,3 mm
271 kg/km
32401612
16/12c AWG
16,1 mm
488 kg/km
32401618
16/18c AWG
18,9 mm
632 kg/km
32401625
16/25c AWG
22,2 mm
846 kg/km
32401403
14/3c AWG
11,3 mm
205 kg/km
32401404
14/4c AWG
12,1 mm
221 kg/km
32401407
14/7c AWG
14,7 mm
382 kg/km
32401204
12/4c AWG
13,2 mm
323 kg/km
32401205
12/5c AWG
15 mm
404 kg/km
32401004
10/4c AWG
17,6 mm
544 kg/km
32400804
8/4c AWG
22,7 mm
868 kg/km
32400604
6/4c AWG
25,7 mm
1180 kg/km
32400404
4/4c AWG
30,3 mm
1722 kg/km
32400204
2/4c AWG
34,5 mm
2339 kg/km
32400104
1/4c AWG
39 mm
4189 kg/km

Other dimensions and colours are possible on request.
