DN 650

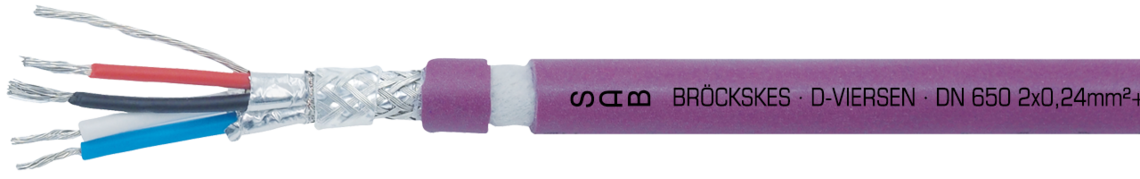

PVC DeviceNet™ cable with overall copper screen and UL recognition

Marking for DN 650 06502241: SAB BRÖCKSKES · D-VIERSEN · DN 650 2x0,24 mm² + 2x0,38 mm² 06502241 24 AWG/1pr + 22 AWG/1pr Low Voltage Computer Cable UL AWM Style 2560 60°C 30V CE

Download data sheet for DN 650

Questions about our products?

Application

The PVC-DeviceNet cable with overall copper screen and UL approval has an aluminium foil wrapping around each pair and a PVC outer sheath. This cable is used as a highly flexible bus cable.

Outstanding features

UL recognition

Construction

Conductor	DN 650 Drop Cable: 0,24 mm² tinned copper strands AWG 24/19 0,38 mm² tinned copper strands AWG 22/19 DN 650 Trunk Cable: 0,96 mm² tinned copper strands AWG 18/19 1,53 mm² tinned copper strands AWG 15/19
Insulation	DN 650 Drop cable: 0,24 mm²: acc. to EN 50290-2-23 (02YI1) 0,38 mm²: PVC, TI2 acc. to EN 50363-3 DN 650 Trunk Cable: 0,96 mm²: acc. to EN 50290-2-23 (02YI1) 1,53 mm²: PVC, TI2 acc. to EN 50363-3
Colour code	0,24 mm²/0,96 mm²: data pair white and light blue 0,38 mm²/1,53 mm²: supply pair black and red
Wrapping	cores twisted to pairs stranded with alu foil
Stranding	pairs in specially adjusted layering, tinned copper drain wire in core
Screen	tinned copper braiding
Wrapping	non-woven tape
Sheath material	PVC, TM1 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour	redlilac (RAL 4001)

Conductor

DN 650 Drop Cable:

0,24 mm² tinned copper strands AWG 24/19

0,38 mm² tinned copper strands AWG 22/19

DN 650 Trunk Cable:

0,96 mm² tinned copper strands AWG 18/19

1,53 mm² tinned copper strands AWG 15/19

Insulation

DN 650 Drop cable:

0,24 mm²: acc. to EN 50290-2-23 (02YI1) 0,38 mm²: PVC, TI2 acc. to EN 50363-3

DN 650 Trunk Cable:

0,96 mm²: acc. to EN 50290-2-23 (02YI1) 1,53 mm²: PVC, TI2 acc. to EN 50363-3

Colour code

0,24 mm²/0,96 mm²: data pair white and light blue

0,38 mm²/1,53 mm²: supply pair black and red

Wrapping

cores twisted to pairs stranded with alu foil

Stranding

pairs in specially adjusted layering, tinned copper drain wire in core

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PVC, TM1 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

redlilac (RAL 4001)

Technical data

Peak operating voltage	max. 350 V
Voltage UL	30 V
Testing voltage	core/core: 1500V core/screen: 1200V
Min. bending radius	fixed laying: 7,5 x d flexible application: 15 x d
Temperature range	UL: up to +60°C fixed laying:-30/+70°C flexible application: -5/+70°C
Characteristic impedance	120 Ω +/- 10%
UL Style	2560
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

30 V

Testing voltage

core/core: 1500V

core/screen: 1200V

Min. bending radius

fixed laying: 7,5 x d

flexible application: 15 x d

Temperature range

UL: up to +60°C

fixed laying:-30/+70°C

flexible application: -5/+70°C

Characteristic impedance

120 Ω +/- 10%

UL Style

2560

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	Type	Dimension	Outer-ø	Copper figure	Cable weight ≈
L06502241	DN 650 (Drop Cable)	2 x 0,24 mm² + 2 x 0,38 mm²	6,1 - 7,1 mm	41,2 kg/km	74 kg/km	Send inquiry
L06502781	DN 650 (Trunk Cable)	2 x 0,96 mm² + 2 x 1,53 mm²	10,4 - 12,4 mm	98,7 kg/km	166 kg/km	Send inquiry

item no.

Type

Dimension

Outer-ø

Copper figure

Cable weight ≈

L06502241

DN 650 (Drop Cable)

2 x 0,24 mm² + 2 x 0,38 mm²

6,1 - 7,1 mm

41,2 kg/km

74 kg/km

Send inquiry

L06502781

DN 650 (Trunk Cable)

2 x 0,96 mm² + 2 x 1,53 mm²

10,4 - 12,4 mm

98,7 kg/km

166 kg/km
