DN 657

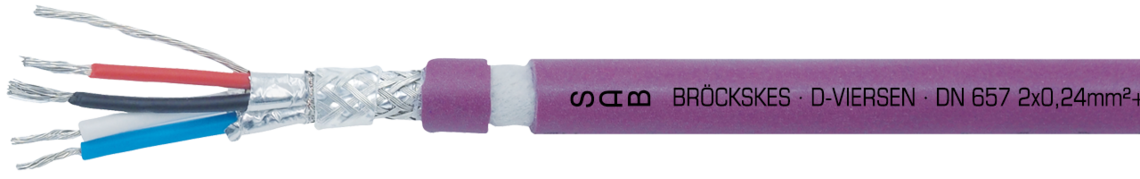

halogen-free, flexible DeviceNet™ cable with overall copper screen

Marking for DN 657 06572241: SAB BRÖCKSKES · D-VIERSEN · DN 657 2x0,24 mm² + 2x0,38 mm²  06572241 CE

Marking for DN 657 06572241: SAB BRÖCKSKES · D-VIERSEN · DN 657 2x0,24 mm² + 2x0,38 mm² 06572241 CE

Application

Flexible DeviceNet cable with overall copper screen for data transmission & power supply. Each pair is wrapped with aluminium foil and fleece.



Data transmission

Data pair: 0.24 mm² - white and light blue

Power supply

Supply pair: 0.38 mm² - black and red

Outstanding features

  • UL recognition
  • halogen-free

Construction

Conductor

DN 657 Drop Cable

0,24 mm² tinned copper strands: AWG 24/19

0,38 mm² tinned copper strands: AWG 22/19



DN 657 Trunk Cablle

0,96 mm² tinned copper strands: AWG 18/19

1,53 mm² tinned copper strands: AWG 15/19

Insulation

DN 657 Drop Cable

0,24 mm²: acc. to EN 50290-2-23 (02YI1) 0,38 mm²: SABIX®



DN 657 Trunk Cable

0,96 mm²: acc. to EN 50290-2-23 (02YI1) 1,53 mm²: SABIX®

Colour code

0,24 mm²/0,96 mm²: data pair white and light blue

0,38 mm²/1,53 mm²: supply pair black and red

Wrapping

cores twisted to pairs stranded with alu foil

Stranding

pairs in specially adjusted layering, tinned copper drain wire in core

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

SABIX®

Sheath colour

redlilac (RAL 4001)

Conductor

DN 657 Drop Cable

0,24 mm² tinned copper strands: AWG 24/19

0,38 mm² tinned copper strands: AWG 22/19



DN 657 Trunk Cablle

0,96 mm² tinned copper strands: AWG 18/19

1,53 mm² tinned copper strands: AWG 15/19

Insulation

DN 657 Drop Cable

0,24 mm²: acc. to EN 50290-2-23 (02YI1) 0,38 mm²: SABIX®



DN 657 Trunk Cable

0,96 mm²: acc. to EN 50290-2-23 (02YI1) 1,53 mm²: SABIX®

Colour code

0,24 mm²/0,96 mm²: data pair white and light blue

0,38 mm²/1,53 mm²: supply pair black and red

Wrapping

cores twisted to pairs stranded with alu foil

Stranding

pairs in specially adjusted layering, tinned copper drain wire in core

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

SABIX®

Sheath colour

redlilac (RAL 4001)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500V

core/screen: 1200V

Min. bending radius

fixed laying: 7,5 x d

flexible application: 15 x d

Temperature range

fixed laying: -40/+70 °C

flexible application: -30/+70 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Characteristic impedance

120 Ω +/- 10%

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500V

core/screen: 1200V

Min. bending radius

fixed laying: 7,5 x d

flexible application: 15 x d

Temperature range

fixed laying: -40/+70 °C

flexible application: -30/+70 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Characteristic impedance

120 Ω +/- 10%

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Type Dimension Outer-ø Copper figure Cable weight ≈
L06572241DN 657 (Drop Cable)2 x 0,24 mm² + 2 x 0,38 mm²6,1 - 7,1 mm41,2 kg/km74 kg/km Send inquiry
L06572781DN 657 (Trunk Cable)2 x 0,96 mm² + 2 x 1,53 mm²10,4 - 12,4 mm98,7 kg/km183 kg/km Send inquiry
item no.
Type
Dimension
Outer-ø
Copper figure
Cable weight ≈
L06572241
DN 657 (Drop Cable)
2 x 0,24 mm² + 2 x 0,38 mm²
6,1 - 7,1 mm
41,2 kg/km
74 kg/km
L06572781
DN 657 (Trunk Cable)
2 x 0,96 mm² + 2 x 1,53 mm²
10,4 - 12,4 mm
98,7 kg/km
183 kg/km

Other dimensions and colours are possible on request.
