DN 658 robot cable/Drop

highly flexible DeviceNet™ cable, suitable for robots with overall copper screen and UL recognition

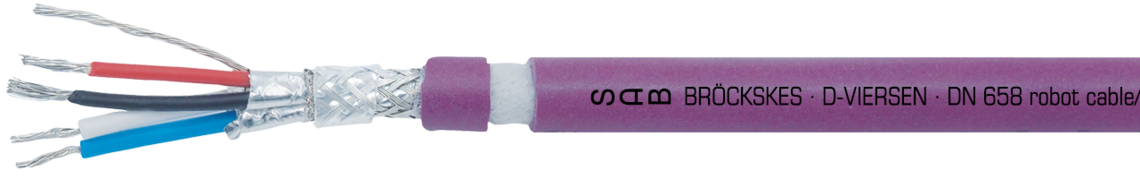

Marking for DN 658 robot cable/ Drop 06589007: SAB BRÖCKSKES · D-VIERSEN · DN 658 robot cable/Drop 2x0,24 mm² +2x0,38 mm² 24 AWG/1pr+22 AWG/1pr UL AWM Style 21198 80°C 300V 06589007 CE

Marking for DN 658 robot cable/ Drop 06589007: SAB BRÖCKSKES · D-VIERSEN · DN 658 robot cable/Drop 2x0,24 mm² +2x0,38 mm² 24 AWG/1pr+22 AWG/1pr UL AWM Style 21198 80°C 300V 06589007 CE

Application

This highly flexible and robot-suitable DeviceNet cable with overall copper screen and UL approval has a peak operating voltage of max. 350 V and a torsion angle of up to +/- 180°/m. It is used as a highly flexible bus cable.

Outstanding features

  • UL recognition
  • suitable for robots
  • highly flexible

Construction

Conductor

tinned copper strands, fine wires

Insulation

0,24 mm²: Foam-Skin-PE

0,38 mm²: SABIX®

Colour code

0,24 mm²: white, blue

0,38 mm²: black, red

Wrapping

cores twisted to pairs stranded with alu foil

Stranding

pairs in specially adjusted layering, tinned copper drain wire in core

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

redlilac (RAL 4001)

Conductor

tinned copper strands, fine wires

Insulation

0,24 mm²: Foam-Skin-PE

0,38 mm²: SABIX®

Colour code

0,24 mm²: white, blue

0,38 mm²: black, red

Wrapping

cores twisted to pairs stranded with alu foil

Stranding

pairs in specially adjusted layering, tinned copper drain wire in core

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

redlilac (RAL 4001)

Technical data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core: 2000 V

core/screen: 2000 V

Min. bending radius

fixed laying: 7,5 x d

flexible application: 15 x d

Temperature range

UL: up to +80°C

fixed laying: -40/+80°C

flexible application: -30/+80°C

Torsion angle

up to +/- 180°/m

Characteristic impedance

120 Ω +/- 10%

UL Style

21198

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core: 2000 V

core/screen: 2000 V

Min. bending radius

fixed laying: 7,5 x d

flexible application: 15 x d

Temperature range

UL: up to +80°C

fixed laying: -40/+80°C

flexible application: -30/+80°C

Torsion angle

up to +/- 180°/m

Characteristic impedance

120 Ω +/- 10%

UL Style

21198

Dimensions

item no.

no. of cores

nominal cross
section

outer-ø ± 5%

copper figure

cable weight ca.

ohmic resistance
at 20°C max.

0658900720,24 mm²min. 6,1 mm32,9 kg/km64 kg/km83,3 Ω/km Send inquiry
item no.
no. of cores
nominal cross
section
outer-ø ± 5%
copper figure
cable weight ca.
ohmic resistance
at 20°C max.
06589007
2
0,24 mm²
min. 6,1 mm
32,9 kg/km
64 kg/km
83,3 Ω/km

Other dimensions and colours are possible on request.
