DN 658

highly flexible DeviceNet™ cable with overall copper screen and UL recognition

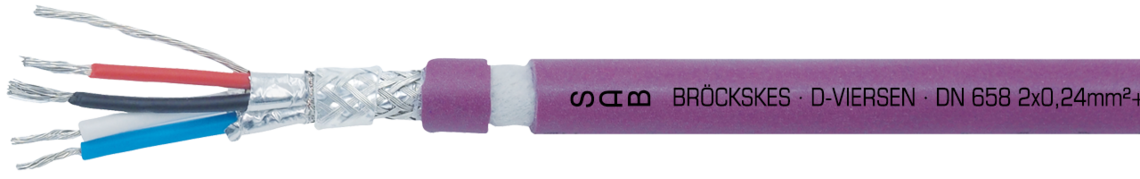

Marking for DN 658 06582241: SAB BRÖCKSKES · D-VIERSEN · DN 658 2x0,24 mm² + 2x0,38 mm² 06582241 24 AWG/1pr + 22 AWG/1pr UL AWM Style 20417 60°C 30V CE

Marking for DN 658 06582241: SAB BRÖCKSKES · D-VIERSEN · DN 658 2x0,24 mm² + 2x0,38 mm² 06582241 24 AWG/1pr + 22 AWG/1pr UL AWM Style 20417 60°C 30V CE

Application

This highly flexible DeviceNet cable with overall copper screen and UL approval has a peak operating voltage of max. 350 V. The cable also has a fleece wrapping. It is used as a highly flexible bus cable.

Outstanding features

  • UL recognition
  • highly flexible

Construction

Conductor

DN 658 Drop Cable

0,24 mm² tinned copper strands: fine wires

0,38 mm² tinned copper strands: fine wires



DN 658 Trunk Cable

0,96 mm² tinned copper strands: fine wires

1,53 mm² tinned copper strands: fine wires

Insulation

DN 658 Drop Cable

0,24 mm²: acc. to EN 50290-2-23 (02YI1) 0,38 mm²: PVC, TI2 acc. to EN 50363-3



DN 658 Trunk Cable

0,96 mm²: acc. to EN 50290-2-23 (02YI1) 1,53 mm²: PVC, TI2 acc. to EN 50363-3

Colour code

0,24 mm²/0,96 mm²: data pair white and light blue

0,38 mm²/1,53 mm²: supply pair black and red

Wrapping

cores twisted to pairs stranded with alu foil

Stranding

pairs in specially adjusted layering, tinned copper drain wire in core

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with rough surface

Sheath colour

redlilac (RAL 4001)

Conductor

DN 658 Drop Cable

0,24 mm² tinned copper strands: fine wires

0,38 mm² tinned copper strands: fine wires



DN 658 Trunk Cable

0,96 mm² tinned copper strands: fine wires

1,53 mm² tinned copper strands: fine wires

Insulation

DN 658 Drop Cable

0,24 mm²: acc. to EN 50290-2-23 (02YI1) 0,38 mm²: PVC, TI2 acc. to EN 50363-3



DN 658 Trunk Cable

0,96 mm²: acc. to EN 50290-2-23 (02YI1) 1,53 mm²: PVC, TI2 acc. to EN 50363-3

Colour code

0,24 mm²/0,96 mm²: data pair white and light blue

0,38 mm²/1,53 mm²: supply pair black and red

Wrapping

cores twisted to pairs stranded with alu foil

Stranding

pairs in specially adjusted layering, tinned copper drain wire in core

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with rough surface

Sheath colour

redlilac (RAL 4001)

Technical data

Peak operating voltage

max. 350 V

Voltage UL

30 V

Testing voltage

core/core: 2000V

core/screen: 2000V

Min. bending radius

fixed laying: 7,5 x d

flexible application: 15 x d

Temperature range

UL: up to +60°C

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Characteristic impedance

120 Ω +/- 10%

UL Style

20417

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

30 V

Testing voltage

core/core: 2000V

core/screen: 2000V

Min. bending radius

fixed laying: 7,5 x d

flexible application: 15 x d

Temperature range

UL: up to +60°C

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Characteristic impedance

120 Ω +/- 10%

UL Style

20417

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Type Dimension Outer-ø Copper figure Cable weight ≈
L06582241DN 658 (Drop Cable)2 x 0,24 mm² + 2 x 0,38 mm²6,1 - 7,1 mm41,2 kg/km74 kg/km Send inquiry
L06582781DN 658 (Trunk Cable)2 x 0,96 mm² + 2 x 1,53 mm²10,4 - 12,4 mm98,7 kg/km183 kg/km Send inquiry
item no.
Type
Dimension
Outer-ø
Copper figure
Cable weight ≈
L06582241
DN 658 (Drop Cable)
2 x 0,24 mm² + 2 x 0,38 mm²
6,1 - 7,1 mm
41,2 kg/km
74 kg/km
L06582781
DN 658 (Trunk Cable)
2 x 0,96 mm² + 2 x 1,53 mm²
10,4 - 12,4 mm
98,7 kg/km
183 kg/km

Other dimensions and colours are possible on request.
